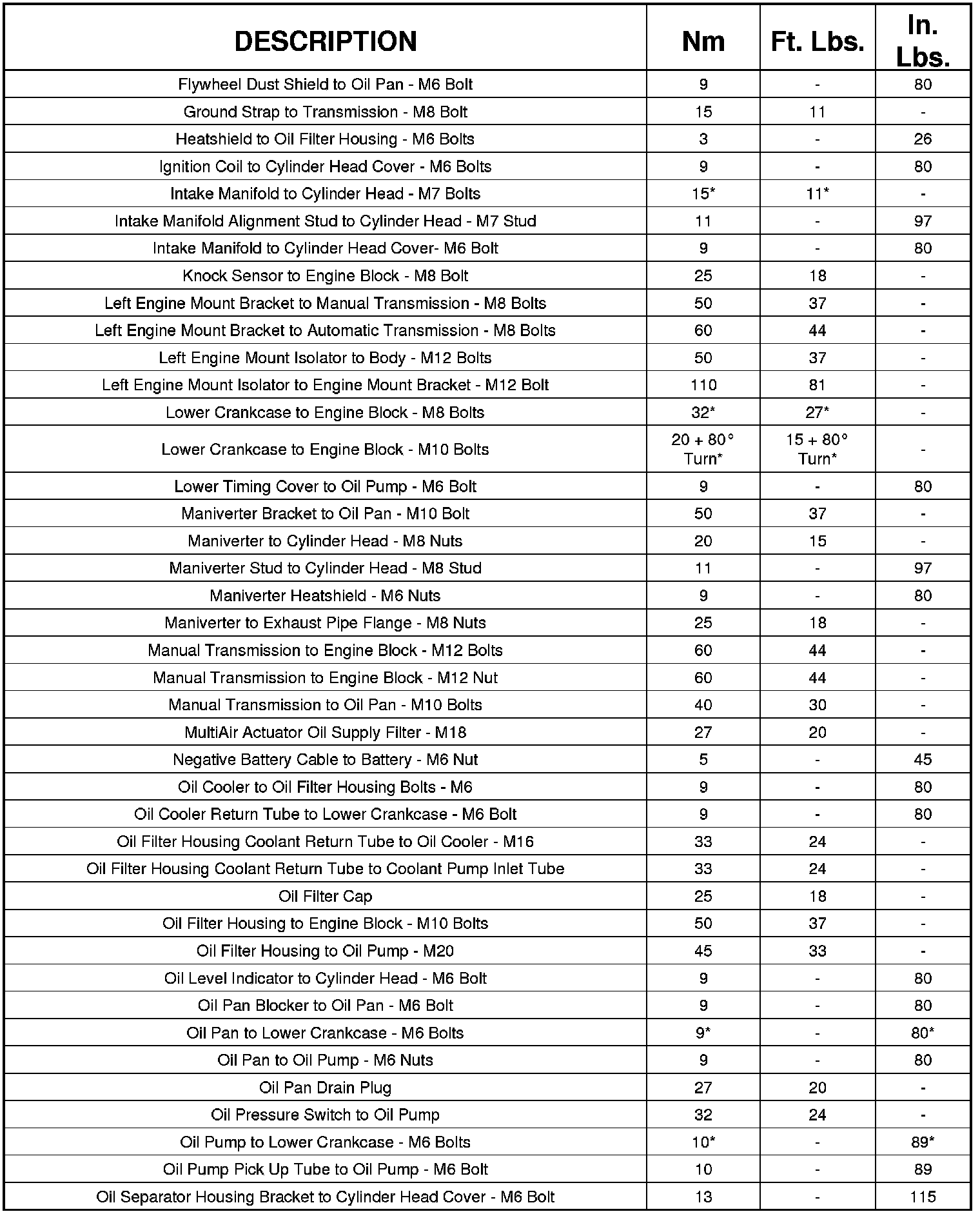

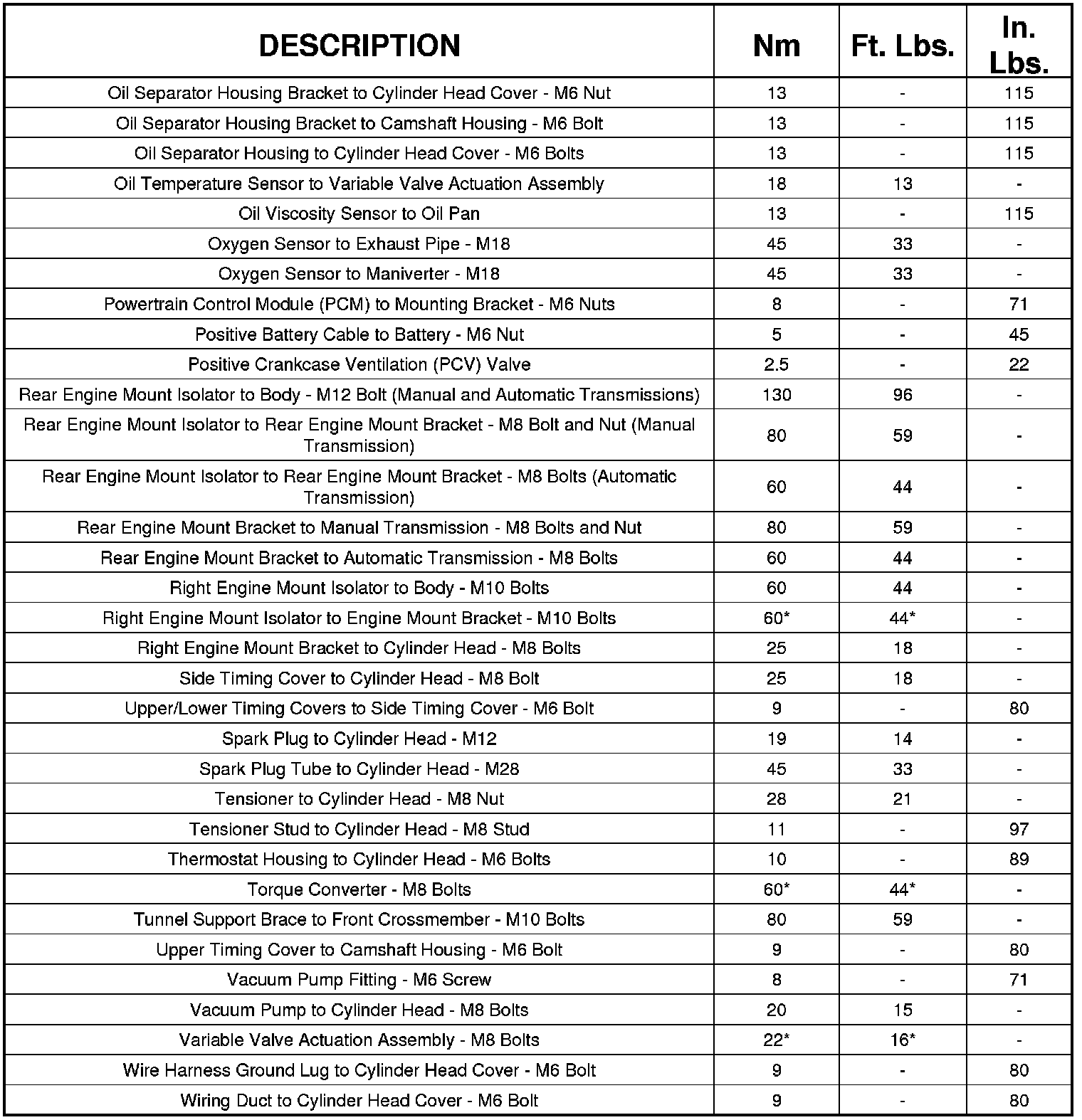

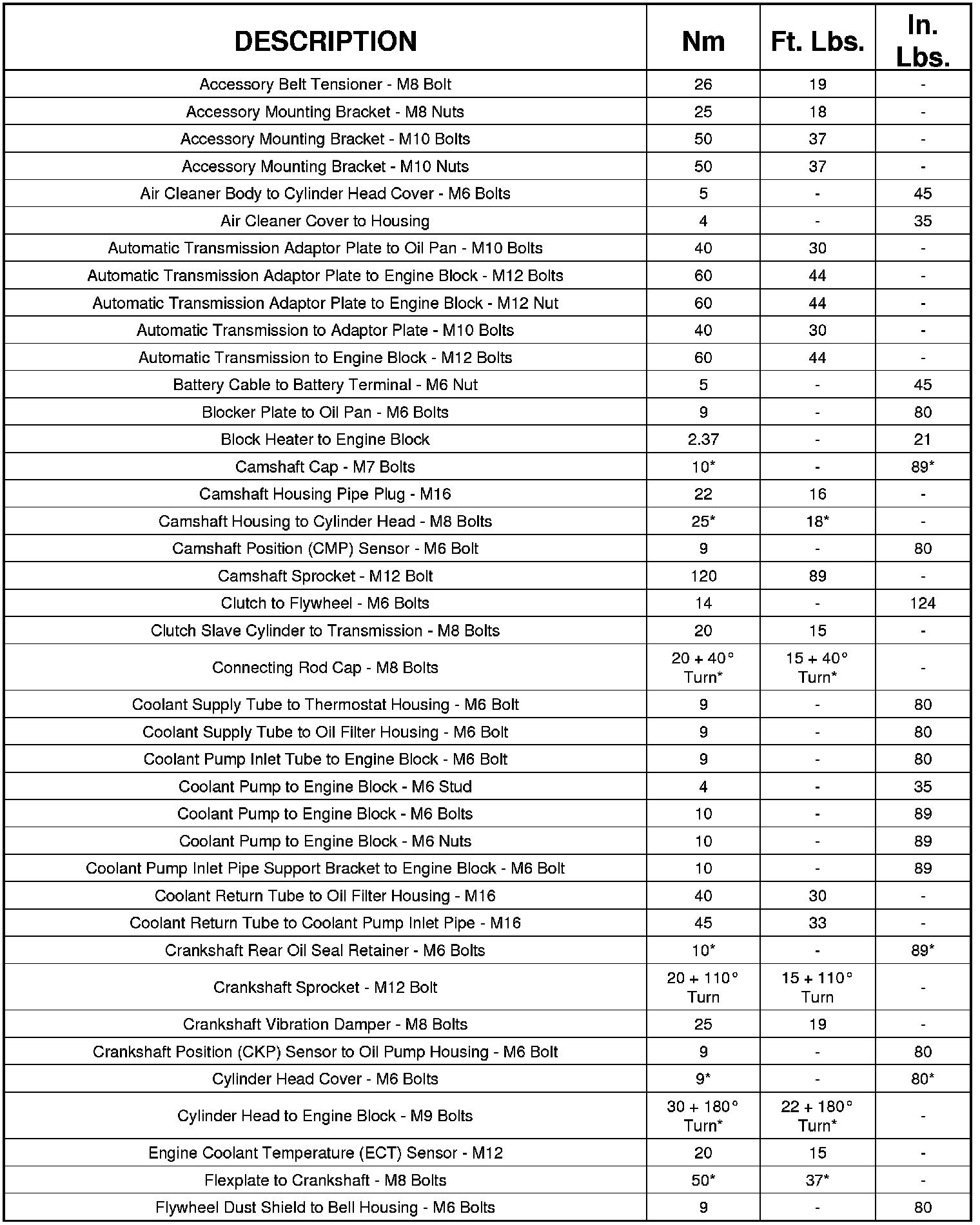

Engine Torque Specifications





Torque













* See procedure for multiple fastener tightening sequence.
