Radiator, Engine Cooling: Removal: Removal

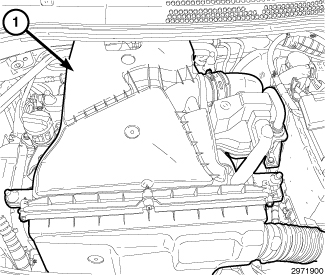

Fig 1: Engine Cover And The Air Intake Assembly

Courtesy of CHRYSLER GROUP, LLC

Disconnect the negative battery cable.
Remove the engine cover and the air intake assembly (1).
Drain the cooling system. Refer to STANDARD PROCEDURE .

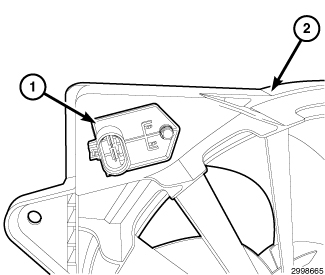

Fig 2: Cooling Fan Resistor & Cooling Fan
Courtesy of CHRYSLER GROUP, LLC

NOTE:
Do not remove the mounting bolts for the cooling fan. The fan will be removed with the radiator.
Remove the upper radiator hose.
Disconnect the cooling fan resistor.

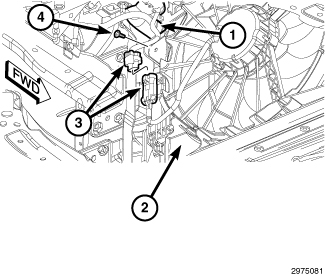

Fig 3: Cooling Fan Harness Connector
Courtesy of CHRYSLER GROUP, LLC
Disconnect the cooling fan wire harness connector (3).
Raise the vehicle.
Remove the front bumper fascia.
Remove the lower radiator hose.
Partially lower the vehicle.

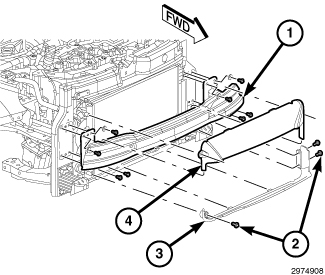

Fig 4: Upper And Lower Air Seals, Front Bumper Support Beam
Courtesy of CHRYSLER GROUP, LLC
Remove the front bumper support (1).
Remove the upper seal (4).
Remove the lower seal (3).
If equipped, remove the turbo inter cooler.

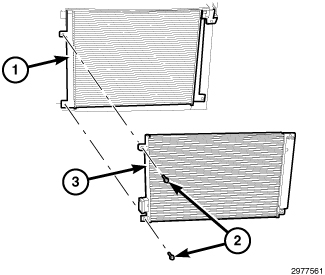

Fig 5: Condenser Retaining Screws
Courtesy of CHRYSLER GROUP, LLC
Evacuate the A/C system. Refer to REFRIGERANT SYSTEM EVACUATE .
Remove the A/C condenser from the cooling module. Refer to CONDENSER, A/C, REMOVAL .

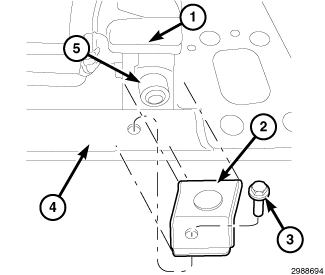

Fig 6: Lower Radiator Support Brackets, Radiator Mount, Lower Cooling Module Support & Mounting Bracket Bolt
Courtesy of CHRYSLER GROUP, LLC
Remove the lower radiator mounting (5) bracket bolts (3) from the lower cooling module support (4).
Remove the radiator from the vehicle.

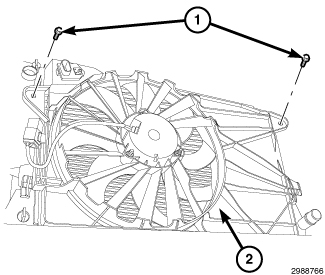

Fig 7: Fan Module
Courtesy of CHRYSLER GROUP, LLC
Remove the mounting bolts (1) that secure the cooling fan assembly (2) to the radiator.
