Front Hoist Locations

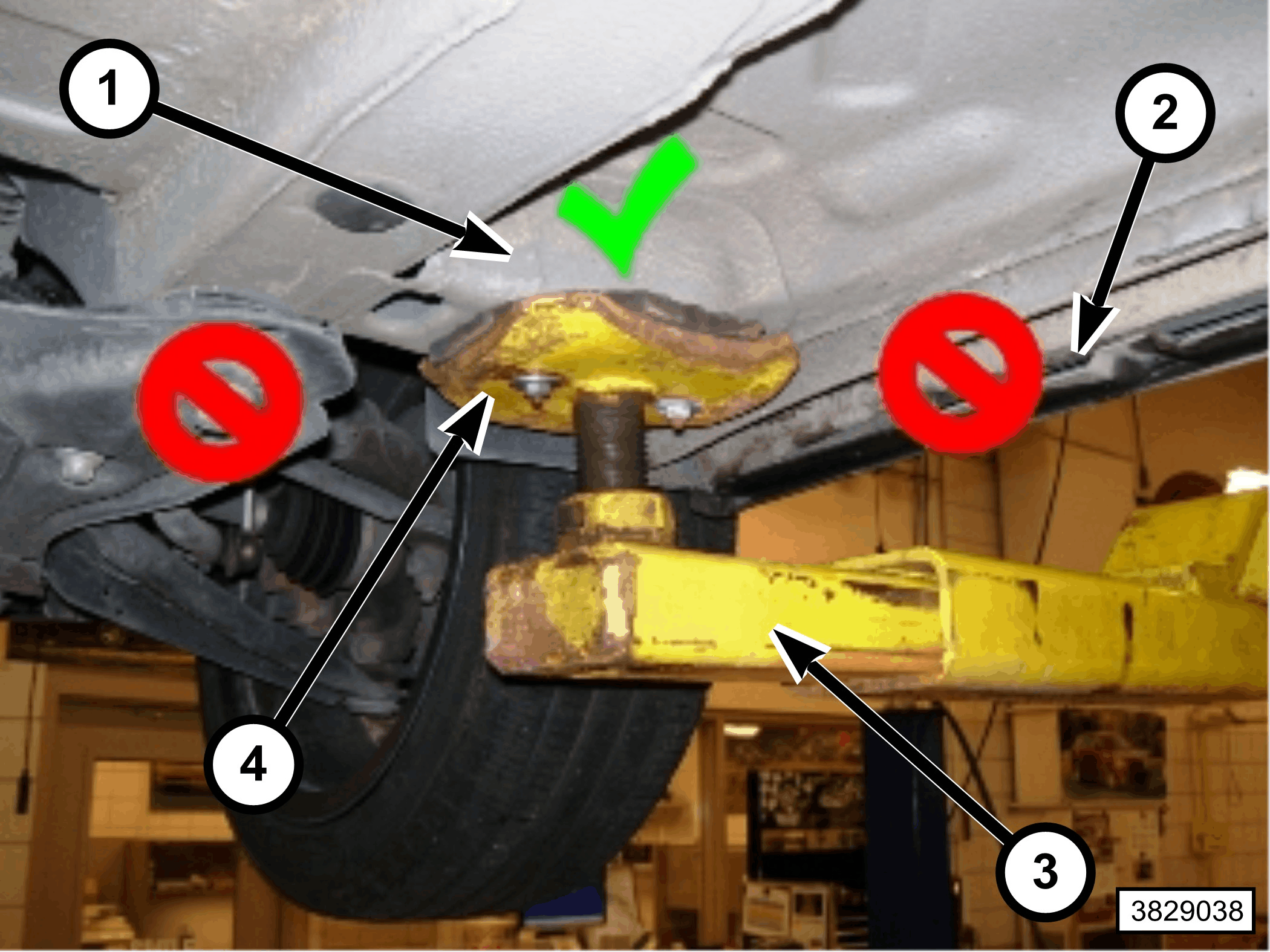

Fig 1: Hoist Lift Arm, Body Sill Or Cladding, Front Lift Pads & Front Floor Reinforcement
GC0153808Courtesy of CHRYSLER GROUP, LLC
CAUTION:

Do not allow the hoist lift arm (3) to contact the body sill or cladding (2) or damage to the vehicle may result.

  1. Place the front lift pads (4) onto the front floor reinforcement (1).
