Sensor, Coolant Temperature: Installation: Installation

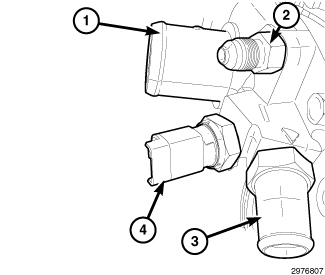

Fig 1: Engine Coolant Temperature Sensor

Courtesy of CHRYSLER GROUP, LLC

1. Install the engine coolant temperature sensor (4) into the thermostat housing.
2. Connect the wire harness connector.

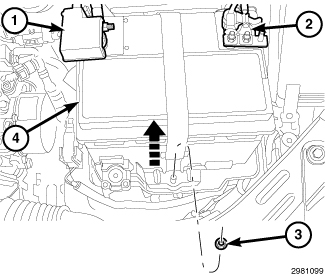

   Fig 2: Positive And Negative Battery Cable, Nut

   Courtesy of CHRYSLER GROUP, LLC
3. Install the battery (4) and the hold down clamp. Tighten the nut to 55 N.m (40 ft. lbs.).
4. Install the air intake assembly.
5. Fill the cooling system. Refer to STANDARD PROCEDURE .
6. Connect the positive and negative battery cable.
