Throttle Body: Installation: Installation

Fig 1: Throttle Body-To-Intake Manifold Seal

Courtesy of CHRYSLER GROUP, LLC

Check the condition of the throttle body-to-intake manifold seal (1). The seal can be reused if not damaged.
Clean the mating surfaces of the throttle body and intake manifold.

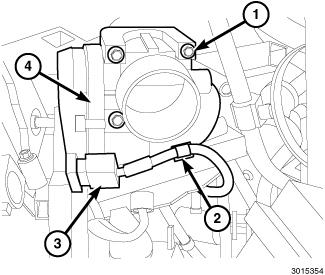

Fig 2: Electronic Throttle Control, Connector, Clip & Bolts
Courtesy of CHRYSLER GROUP, LLC
Position the throttle body (4) to the intake manifold.
Install the throttle body mounting bolts (1) and tighten in a criss-cross pattern sequence to 9 N.m (80 in. lbs.).
Connect the electrical connector (3) to the Electronic Throttle Control (ETC) (4) and secure the ETC harness to the clip (2) on the throttle body.

Fig 3: Air Cleaner Body Assembly
Courtesy of CHRYSLER GROUP, LLC
Install the air cleaner body (6). Refer to BODY, AIR CLEANER, INSTALLATION or BODY, AIR CLEANER, INSTALLATION .

Fig 4: Engine Cover
Courtesy of CHRYSLER GROUP, LLC
Install the engine cover (1).
Connect the negative battery cable and tighten nut to 5 N.m (45 in. lbs.).
