Fan, Cooling: Installation

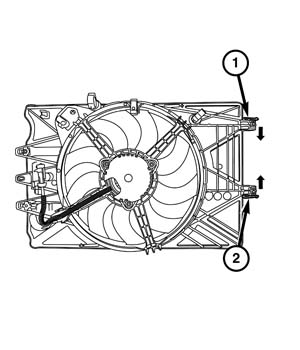

GC0158936Courtesy of CHRYSLER GROUP, LLC
  1. Slide the fan into the retainers (2) on the left side of the radiator.
    GC0158723Courtesy of CHRYSLER GROUP, LLC
  2. Install the cooling fan retaining bolt (1). Tighten the cooling fan retaining bolt to 8 Nm (70 lbf-in).
  3. Install the radiator assembly. Refer to RADIATOR, ENGINE COOLING, INSTALLATION .
