Sensor, Crankshaft Position: Installation
NOTE:

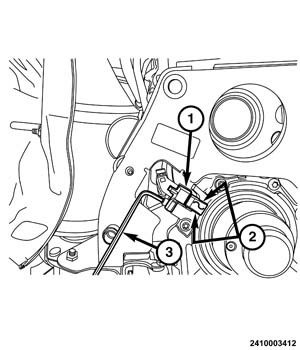

Transmission and bell housing not shown in illustration
- Install the crankshaft position sensor (1) with mounting screw.CAUTION:
Make sure the CKP sensor is firmly seated against the alignment boss prior to rotating the fastener. The sensor will be damaged if the fastener is used to align or draw the sensor into position.
- Tighten the mounting screw to 4 N.m (35 in. lbs.).

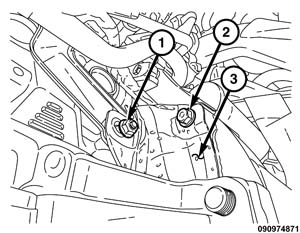

- Install the sensor shield (3).
- Install the nut (1) and bolt (2). Tighten to 9 N.m, 80 in. lbs.).
- Connect and lock the CKP harness connector.
- Install the catalytic converter. Refer to CONVERTER, CATALYTIC, INSTALLATION .
- Connect the battery negative cable and tighten nut to 5 N.m (45 in. lbs.).
NOTE:
The Cam/Crank Variation Relearn procedure must be performed using the scan tool anytime there has been a repair/replacement made to a powertrain system, for example: flywheel, valvetrain, camshaft and/or crankshaft sensors or components. Refer to STANDARD PROCEDURE .
