Switch, Ignition: Installation

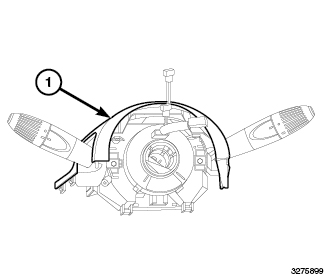

GC0153220Courtesy of CHRYSLER GROUP, LLC
  1. Install the ignition switch.
  2. Tighten the special new bolts until the heads shear off.
  3. Connect the electrical connection for the ignition switch.
  4. Install the aerial antenna ring.
  5. Connect the aerial antenna electrical connector.
  6. Install the steering column trim. Refer to SHROUD, STEERING COLUMN, UPPER, INSTALLATION .
  7. Connect the negative battery cable.
