International Vehicle Control And Display Symbols: Description: Notes
FCA US LLC uses international symbols to identify various systems on the vehicle.
The graphic symbols illustrated are used to identify various instrument controls, vehicle controls and service information references. The symbols correspond to the controls and displays that are located on the instrument panel and throughout the vehicle.

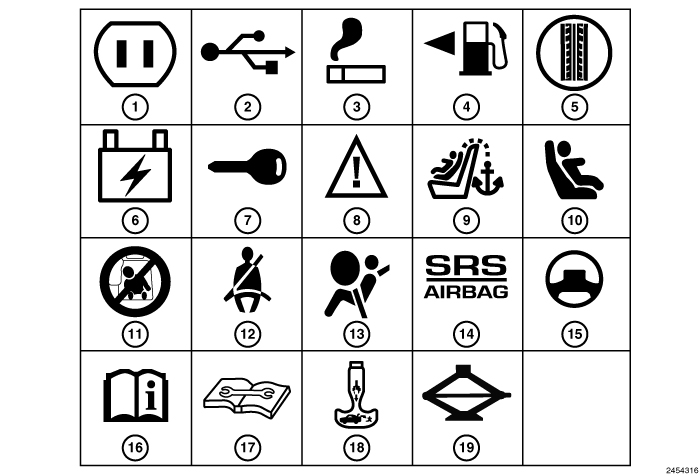

INTERNATIONAL INFORMATION SYMBOL IDENTIFICATION
| SYMBOL | DESCRIPTION | SYMBOL | DESCRIPTION |
|---|---|---|---|
| 1 | 115-Volt Power Inverter | 11 | Side Airbag |
| 2 | USB Connector | 12 | Seat Belt |
| 3 | Lighter | 13 | Airbag |
| 4 | Fuel Fill Side | 14 | Supplemental Restraint System |
| 5 | Spare Tire Winch | 15 | Power Steering Fluid |
| 6 | Fuse | 16 | See Owner's Manual |
| 7 | Key Activate (Power Outlet) | 17 | See Appropriate Service Information |
| 8 | Warning | 18 | Emergency Release Handle |
| 9 | Child Seat Tether Anchor | 19 | Jack/Jack Tools Location |
| 10 | Lower Anchors and Tether for Children (Latch) |
INTERNATIONAL INDICATOR SYMBOL IDENTIFICATION
| SYMBOL | DESCRIPTION | SYMBOL | DESCRIPTION |
|---|---|---|---|
| 1 | Electronic Speed Control | 30 | Door Ajar |
| 2 | Hill Descent Control | 31 | Liftgate Open |
| 3 | Traction Control | 32 | Brake System Warning Parking Brake |
| 4 | Electronic Stability Program/Brake System Assist System | 33 | All Wheel Drive |
| 5 | Security Indicator | 34 | Four Wheel Drive |
| 6 | Turn Signals | 35 | Four Wheel Drive Low |
| 7 | Water In Fuel | 36 | Tow/Haul |
| 8 | Low Fuel | 37 | Service Four Wheel Drive |
| 9 | Side Airbag | 38 | Service Four Wheel Drive |
| 10 | Seat Belt Reminder | 39 | Cruise Indicator |
| 11 | Airbag Warning Light | 40 | Brake System Warning Parking Brake |
| 12 | Passenger Airbag Off | 41 | Tire Pressure Monitor |
| 13 | Failure Of Anti-Lock Braking System | 42 | Sway Bar Disconnect Indicator |
| 14 | HEV Brake Regenerative Light | 43 | Front Axle Lock |
| 15 | Electronic Throttle Control | 44 | Rear Axle Lock |
| 16 | HEV Service Light | 45 | Park Assist Indicator |
| 17 | Engine Oil | 46 | Park Brake Indicator |
| 18 | Battery Charging | 47 | Electronic Stability Control/Traction Control Off |
| 19 | Glow Plug/Intake Air Heated | 48 | Trailer Brake System Off |
| 20 | Power Steering Fluid | 49 | Diesel Exhaust Fluid |
| 21 | Engine Coolant Temperature | 50 | Coolant Level |
| 22 | Malfunction Indicator Light | 51 | Fuel Cap |
| 23 | Transmission Oil Temperature Light | 52 | EPS (Electric Power Steering) |
| 24 | Diesel Exhaust Brake | 53 | Icy Road Condition |
| 25 | High Beam | 54 | Electric Vehicle Plug In State |
| 26 | Front Fog Light | 55 | Vehicle Theft Alarm |
| 27 | Rear Fog Light | 56 | Stored Warnings |
| 28 | Cargo Lamp | 57 | Service ETC |
| 29 | Exterior Bulb Failure | 58 | Electric Vehicle System Service |

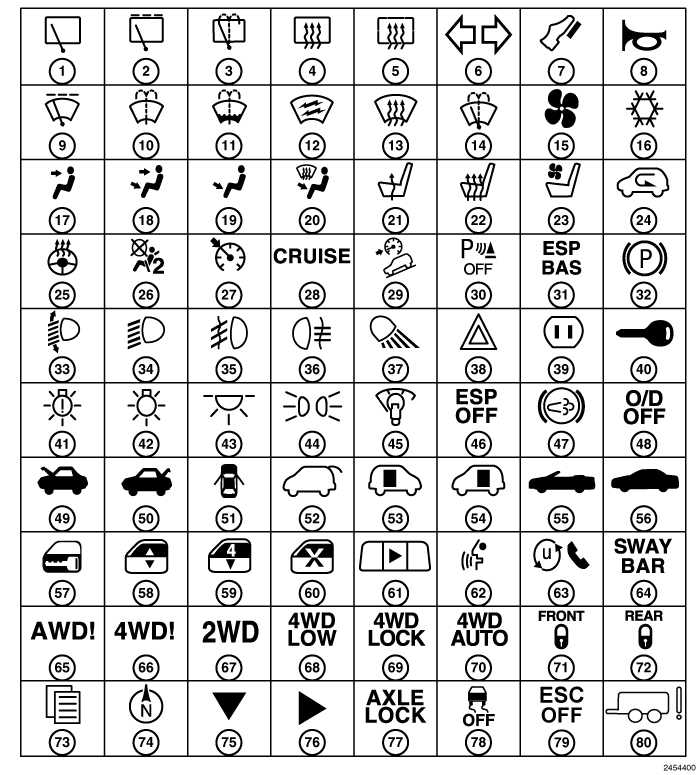

INTERNATIONAL CONTROL SYMBOL IDENTIFICATION
| SYMBOL | DESCRIPTION | SYMBOL | DESCRIPTION | SYMBOL | DESCRIPTION |
|---|---|---|---|---|---|
| 1 | Rear Window Wiper | 28 | Cruise Indicator | 55 | Convertible Top Down |
| 2 | Rear Window Intermittent Wiper | 29 | Hill Descent Control | 56 | Convertible Top Up |
| 3 | Rear Window Washer | 30 | Park Assist Off | 57 | Door Lock |
| 4 | Rear Window Defrost | 31 | Electronic Stability Program/Brake System Assist System | 58 | Window Lift |
| 5 | Heated Mirror | 32 | Park Brake Release | 59 | Convertible 4 Window Down |
| 6 | Turn Signals | 33 | Adjustable Headlights | 60 | Window Lock |
| 7 | Adjustable Pedals | 34 | Low Beam | 61 | Power Rear Window |
| 8 | Horn | 35 | Front Fog Light | 62 | Voice Recognition Button |
| 9 | Windshield Wiper Intermittent | 36 | Rear Fog Light | 63 | Uconnect™ Button |
| 10 | Windshield Washer | 37 | Cargo Lamp | 64 | Sway Bar Disconnect |
| 11 | Windshield Washer Fluid Level | 38 | Hazard Lights | 65 | All Wheel Drive |
| 12 | Windshield Electrically Heated | 39 | 115-Volt Power Inverter | 66 | Four Wheel Drive |
| 13 | Windshield Defrost | 40 | Key Activate (Power Outlet) | 67 | Two Wheel Drive |
| 14 | Windshield Wiper And Washer | 41 | Exterior Bulb Failure | 68 | Four Wheel Drive Low |
| 15 | Ventilating Fan | 42 | Master Lighting Switch | 69 | Four Wheel Drive Lock |
| 16 | Air Conditioning | 43 | Dome Light | 70 | Four Wheel Drive Auto |
| 17 | Upper Air Outlet | 44 | Park Lights | 71 | Front Axle Lock |
| 18 | Upper And Lower Air Outlet | 45 | Instrument Panel Illumination | 72 | Rear Axle Lock |
| 19 | Lower Air Outlet | 46 | Electronic Stability Program Off | 73 | EVIC Menu |
| 20 | Defrost And Lower Air Outlet | 47 | Diesel Exhaust Brake | 74 | Navigation Button |
| 21 | Heated Seat Low | 48 | Overdrive Off | 75 | Step |
| 22 | Heated Seat High | 49 | Hood Release | 76 | Reset |
| 23 | Ventilated Seat | 50 | Trunk/Deck Release | 77 | Axle Lock Button |
| 24 | Recirculation | 51 | Door Ajar | 78 | Traction Control Off |
| 25 | Heated Steering Wheel | 52 | Liftgate Release | 79 | Electronic Stability Control Off |
| 26 | Passenger Air Bag Off | 53 | Sliding Door | 80 | Trailer Brakes |
| 27 | Electronic Speed Control | 54 | Sliding Door |
