Module, Fuel Pump: Installation
- Align the fuel pump module to the alignment tabs for proper sending unit float operation.
- Using a new seal (gasket), install the fuel pump module (4) into the fuel tank opening.
- Position the lockring (3) over top of fuel pump module (4).
- Install the fuel pump module locking ring (3) using SAE Fuel Pump Lock Ring Wrench (special tool #9340, SAE Fuel Pump Lock Ring Wrench) (2). Position the tool into the locking ring and turn the ring till the tabs are locked into the notches.
- Connect the return (1), fuel supply (2), and vapor (3) lines to the fuel pump module. Refer to CONNECTING
- Connect the fuel pump module wiring harness connector (4).
- Connect the negative battery cable and tighten nut to 5 N.m (45 in. lb.).NOTE:
Allow time for air to purge from the fuel lines.
- Start the engine and check for leaks at all fuel pump module connections.

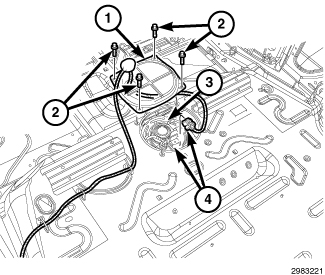

- Position the fuel pump module cover (1) into position and tighten the screws (2).

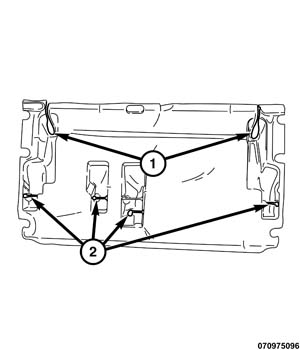

- Install the middle seat cushion molded carpet. Make sure the carpet slots do not interfere with the prop rods (1) and the seat latch anchors (2).
