Removal And Installation

REMOVAL

NOTE:

The Temperature/Manifold Air Pressure (TMAP) sensor is also known as the Charge Air Cooler (CAC) temperature sensor.

Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
Remove the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

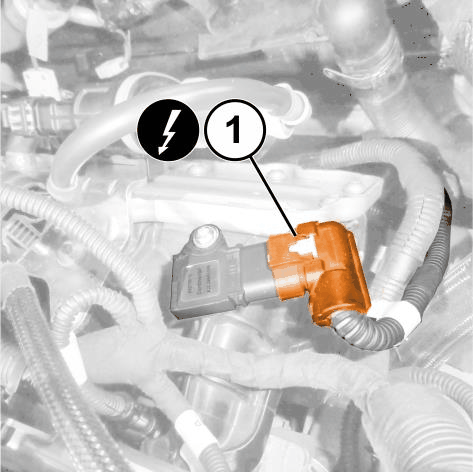

Unlock and disconnect the wire harness connector from the intake manifold pressure and temperature sensor (1).

Courtesy of CHRYSLER GROUP, LLC

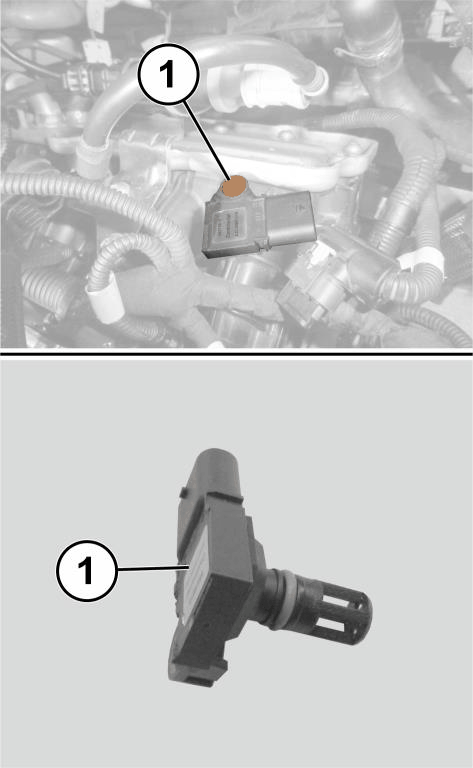

Remove the screw (1) and the intake manifold pressure and temperature sensor (1).

INSTALLATION

Install the intake manifold pressure and temperature sensor and securely tighten the retaining screw.
Connect and lock the wire harness connector to the intake manifold pressure and temperature sensor.
Install the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .
Install the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
