Standard Procedure - Hoisting

In the event that it becomes necessary to raise the car, go to a Jeep Dealership, which is equipped with surface lift or equivalent.

The points for lifting the vehicle using the lift are marked on the side skirts with the symbols shown in the illustration.

GC0174276Courtesy of CHRYSLER GROUP, LLC
NOTE:

Be careful to select the lift pads sized to fit to the underbody of the car. Also, make sure to correctly place the pads themselves at the openings indicated on the sill cladding. These openings are not necessarily aligned with the triangle markings, which are specifically related to the recommended location for the emergency jack, provided with the vehicle.

GC0174174Courtesy of CHRYSLER GROUP, LLC
GC0174600Courtesy of CHRYSLER GROUP, LLC

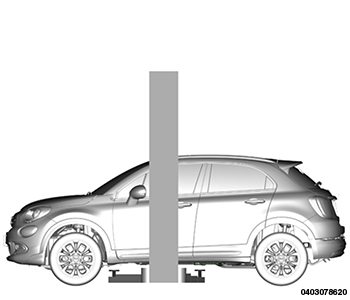

GC0174546Courtesy of CHRYSLER GROUP, LLC
