Removal And Installation: Removal
To avoid serious or fatal injury on vehicles equipped with side curtain airbags, disable the Supplemental Restraint System (SRS) before attempting any Occupant Restraint Controller (ORC) diagnosis or service. The ORC may contain a rollover sensor, which enables the system to deploy the side SRS components in the event of a vehicle rollover event. If an ORC containing a rollover sensor is accidentally rolled during service while still connected to battery power, the side SRS components will deploy. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.
To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.
To avoid serious or fatal injury, never strike or drop the Occupant Restraint Controller (ORC), as it can damage the impact sensor or affect its calibration. The ORC contains the impact sensor, which enables the system to deploy the SRS components. If an ORC is accidentally dropped during service, the module must be scrapped and replaced with a new unit. Failure to observe this warning could result in accidental, incomplete, or improper SRS component deployment.
DO NOT
insert probe tips into the airbag electrical connectors to perform diagnostics of the airbag system.
- Disconnect and isolate the negative battery cable. Wait two minutes for the system capacitor to discharge before further service.

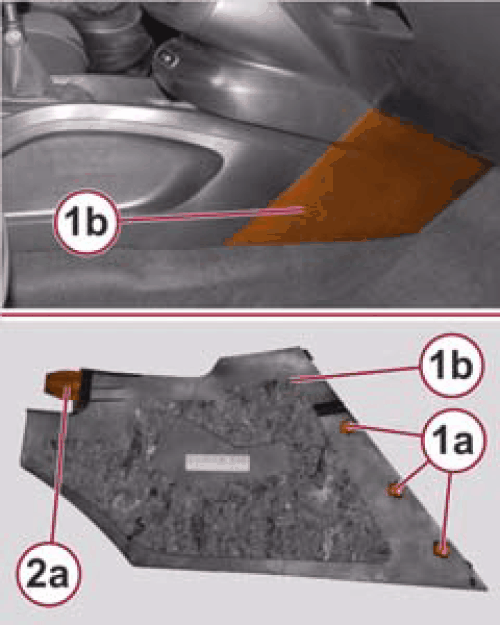

- Using trim stick C-4755 or equivalent, remove both front side panels (1b) from the right and left sides of the center floor console on the floor panel center tunnel to expose the Occupant Restraint Controller (ORC).

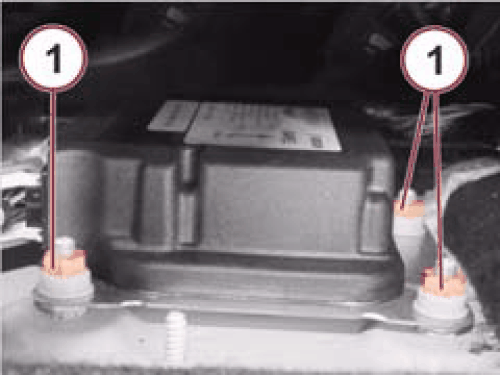

- Remove the three nuts (1) that secure the ORC to the weld studs on the floor panel center tunnel and lift the ORC off of the weld studs.

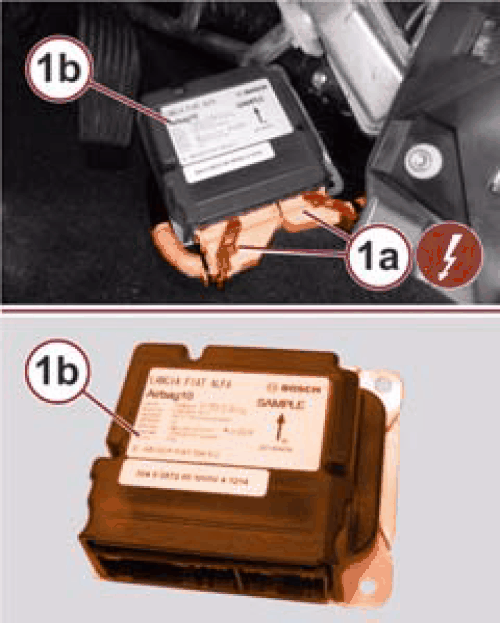

- Disconnect the wire harness connectors (1a) from the ORC (1b). To disconnect the wire harness connectors from the ORC, depress the release tab and lift the lever arm on the connectors.
- Remove the ORC from the vehicle.
