Engine Displacement

Indicated by first entry on top line of tag on intake manifold at ignition coil or temperature gauge engine unit.

NOTE: This tag is not found on Pinto Models.

Engine Code

Displ. & Carb.

Comp. Ratio

1600 cc. 4 1-Bbl.

8.0-1

2000 cc. 4 2-Bbl.

8.6-1

170" 6 1-Bbl.

8.7-1

200" 6 1-Bbl.

8.7-1

200" 6 1-Bbl.

⁽¹⁾

250" 6 1-Bbl.

9.0-1

250" 6 1-Bbl.

⁽¹⁾

240" 6 1-Bbl.

8.9-1

B⁽²⁾

240" 6 1-Bbl.

9.0-1

E⁽³⁾

240" 6 1-Bbl.

9.0-1

302" V8 2-Bbl.

9.0-1

302" V8 2-Bbl.

⁽¹⁾

D⁽³⁾

302" V8 2-Bbl.

9.0-1

302" V8 4-Bbl. BOSS

9.4-1

351" V8 2-Bbl.

9.0-1

351" V8 4-Bbl.

10.7-1

351" V8 4-Bbl. GT

11.7-1

390" V8 2-Bbl.

8.6-1

400" V8 2-Bbl.

9.0-1

429" V8 2-Bbl.

10.5-1

429" V8 4-Bbl.

10.5-1

429" V8 4-Bbl. Cobra Jet

11.3-1

429" V8 4-Bbl. Spr. Cobra Jet

11.5-1

P⁽²⁾

429" V8 4-Bbl.

11.3-1

460" V8 4-Bbl.

10.2-1

⁽¹⁾	Low Compression for Export.

⁽²⁾

Police.

⁽³⁾

Taxi.

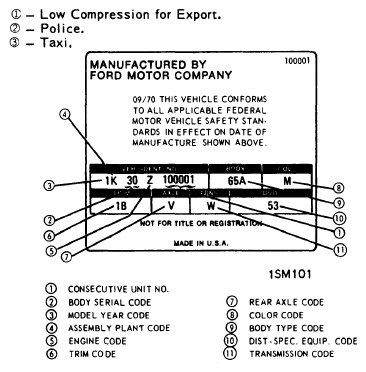

Fig 1: 1971 FORD MOTOR CO. VEHICLE CERTIFICATION LABEL

Courtesy of FORD MOTOR CO.
