Accelerator Switch

The accelerator switch is actuated by a throttle lever link on carburetor. When checking the switch with a test light, the test light should be on when accelerator pedal is fully released and off when pedal is depressed.

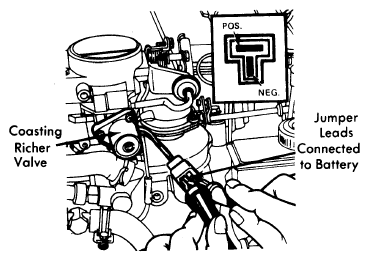

Fig 1: Testing Coasting Richer Valve

Courtesy of FORD MOTOR CO.
