Electronic Control Assembly (ECA): Notes

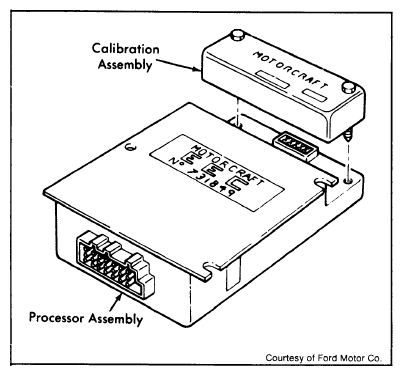

The ECA is a solid-state micro-computer, consisting of a processor assembly and a calibration assembly. The ECA is located under left side of instrument panel, just left of steering column. See Figure. The ECA does not include a self-diagnostic function.
