Module Bias Test

With ignition on, measure voltage between engine ground and Red Wire (pin No. 4). If voltage is less than battery voltage, repair Red wire to module.

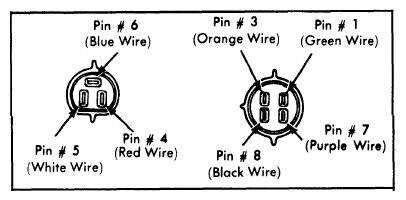

Fig 1: Harness Connector Pins

Courtesy of FORD MOTOR CO.
