Window Relay

With one test lamp lead connected to relay output side and ignition in "ON" or "ACC" position, test lamp should light. If lamp does not light, check continuity of wiring harness from ignition switch to actuating terminal on relay. Check voltage at input terminal. If wiring and voltage are good, replace relay.

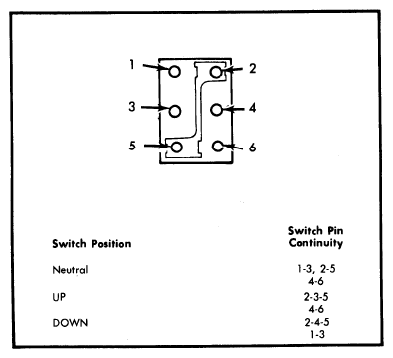

Fig 1: Single Window Switch Testing

Courtesy of FORD MOTOR CO.

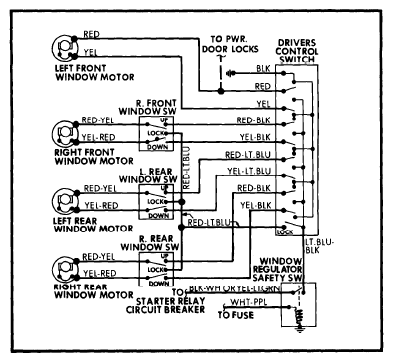

Fig 2: Ford Power Window Wiring Diagram All 4-Door Models

Courtesy of FORD MOTOR CO.

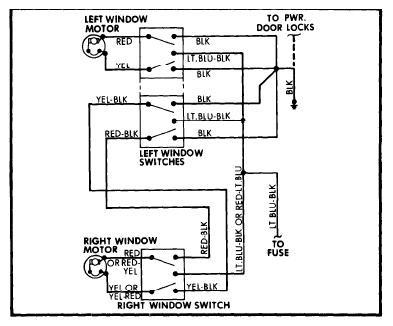

Fig 3: Ford Power Window Wiring Diagram Separate Master Switches

Courtesy of FORD MOTOR CO.

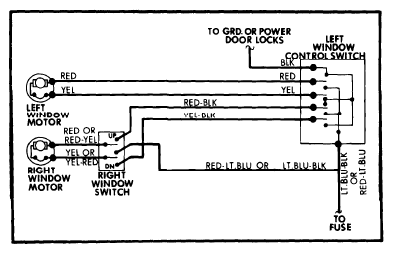

Fig 4: Ford Power Window Wiring Diagram Single Master Switch

Courtesy of FORD MOTOR CO.
