Base Ignition Timing Specifications

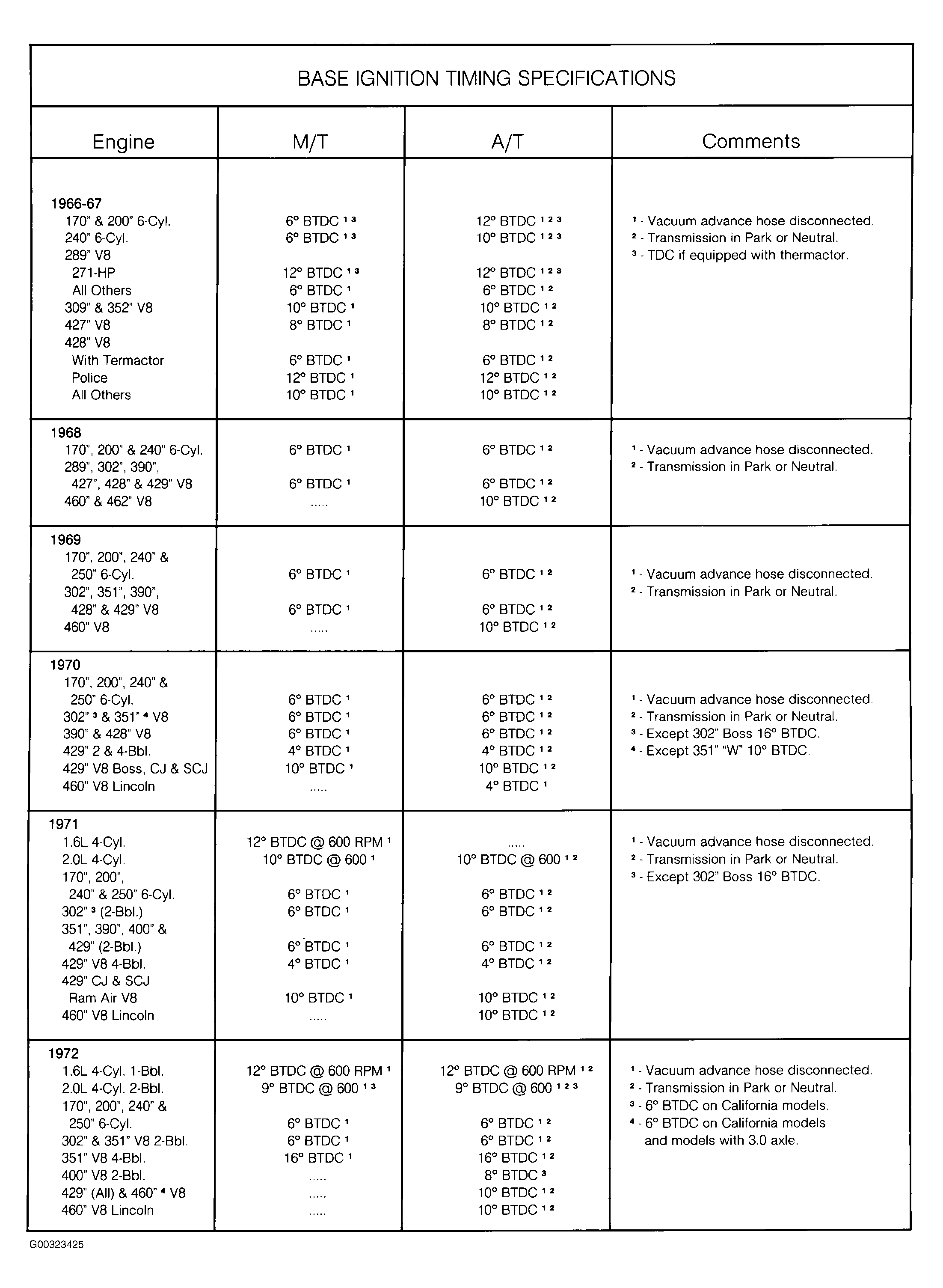

Fig 1:

G00323425

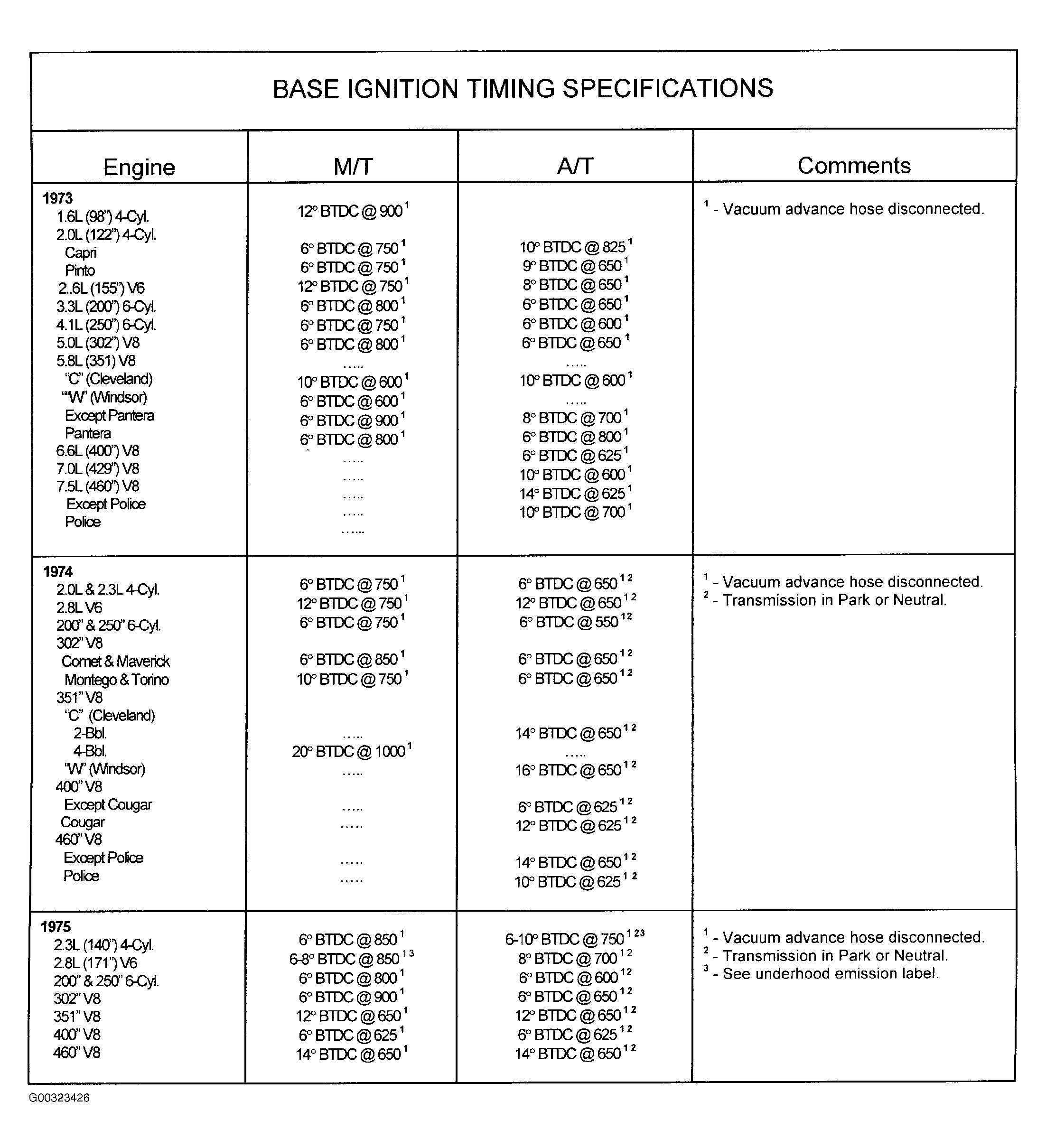

Fig 2:

G00323426

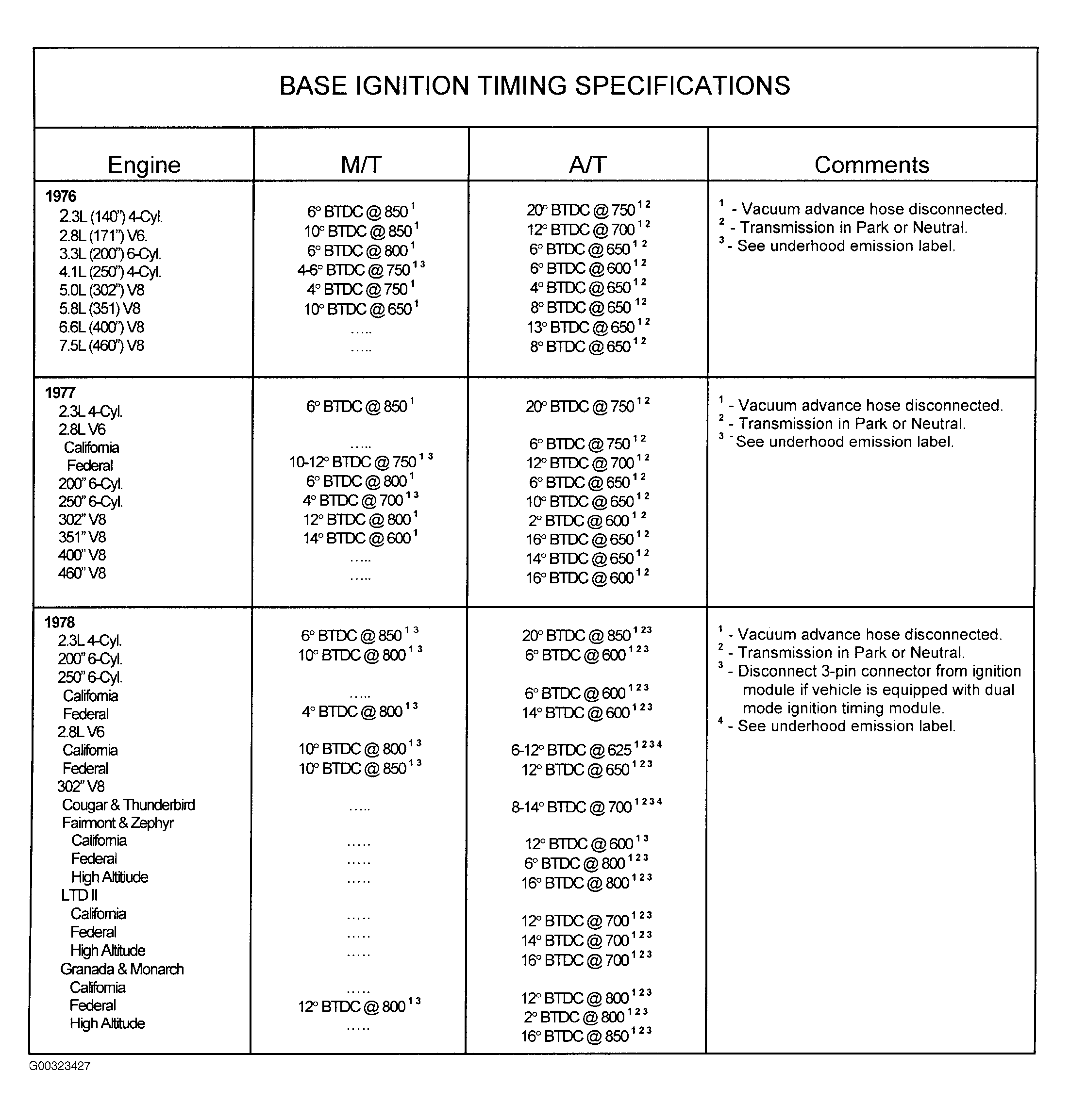

Fig 3:

G00323427

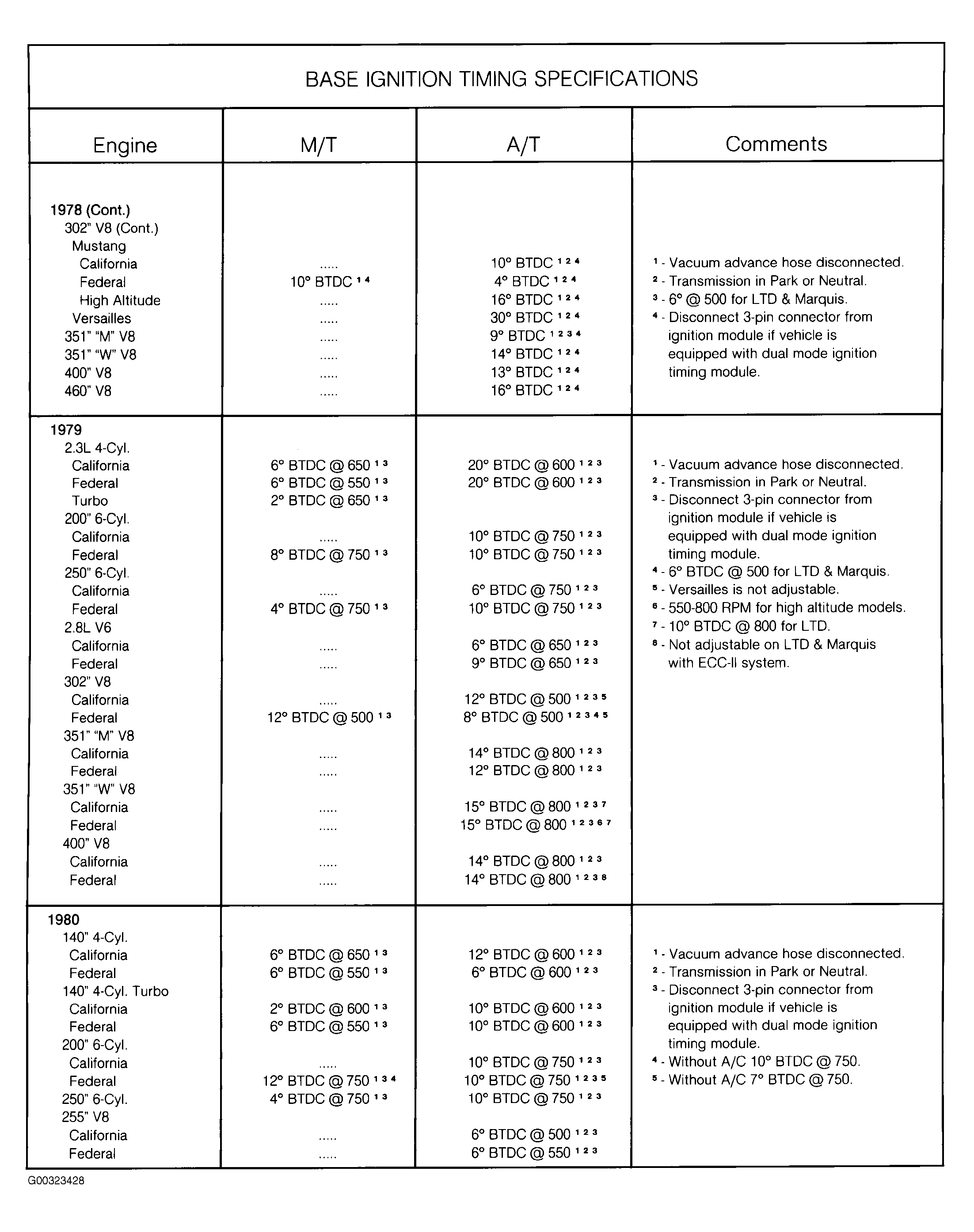

Fig 4:

G00323428

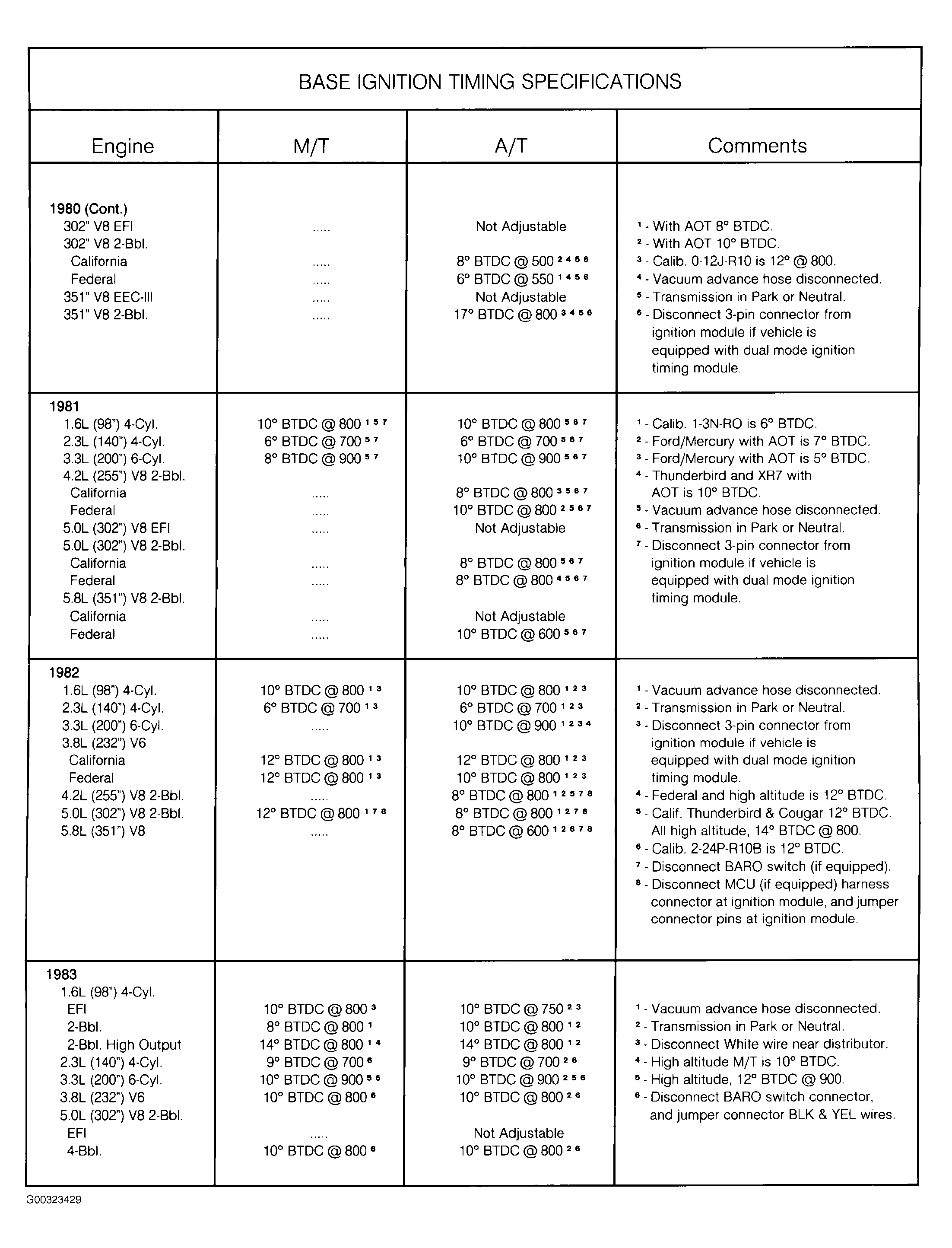

Fig 5:

G00323429

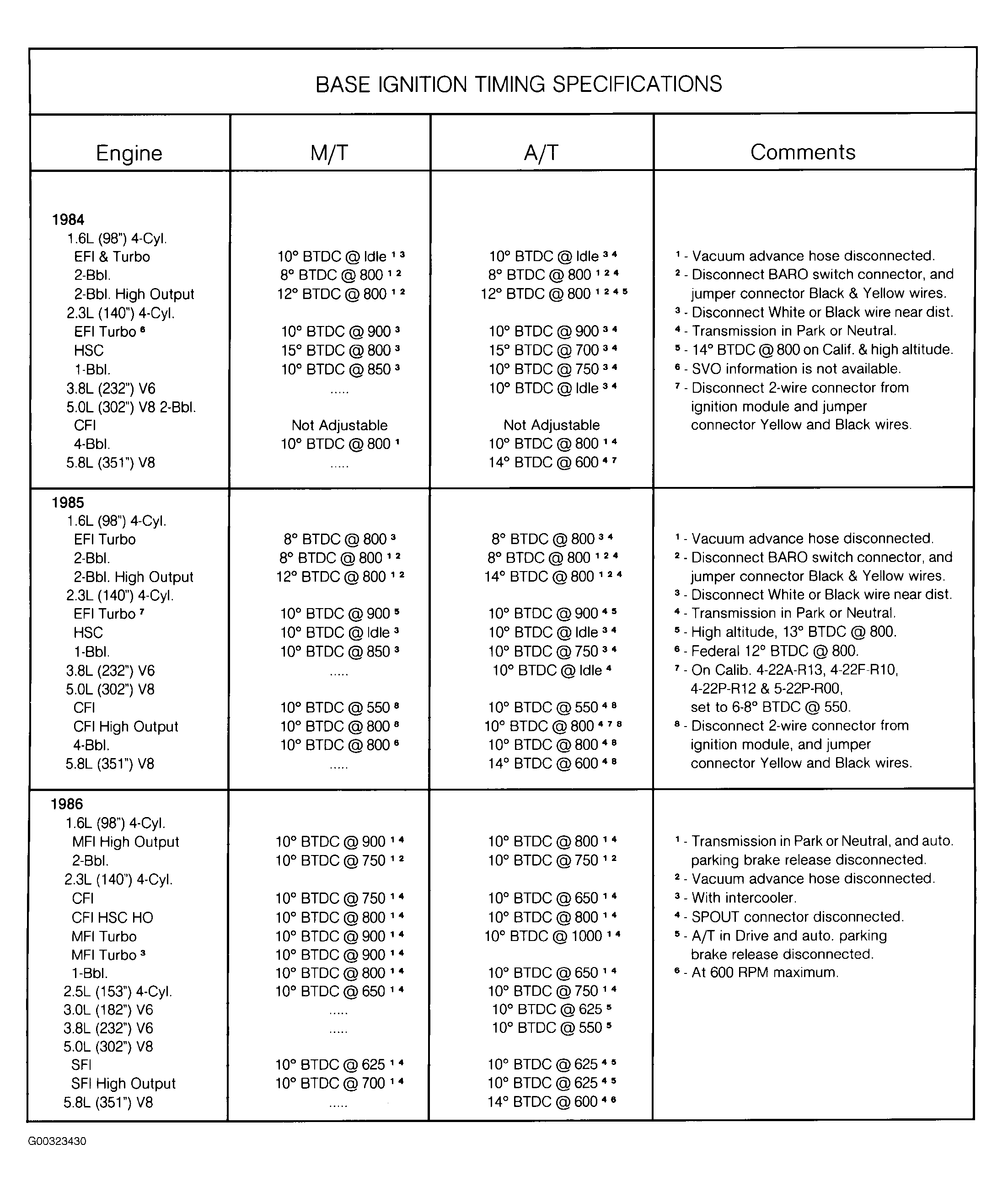

Fig 6:

G00323430

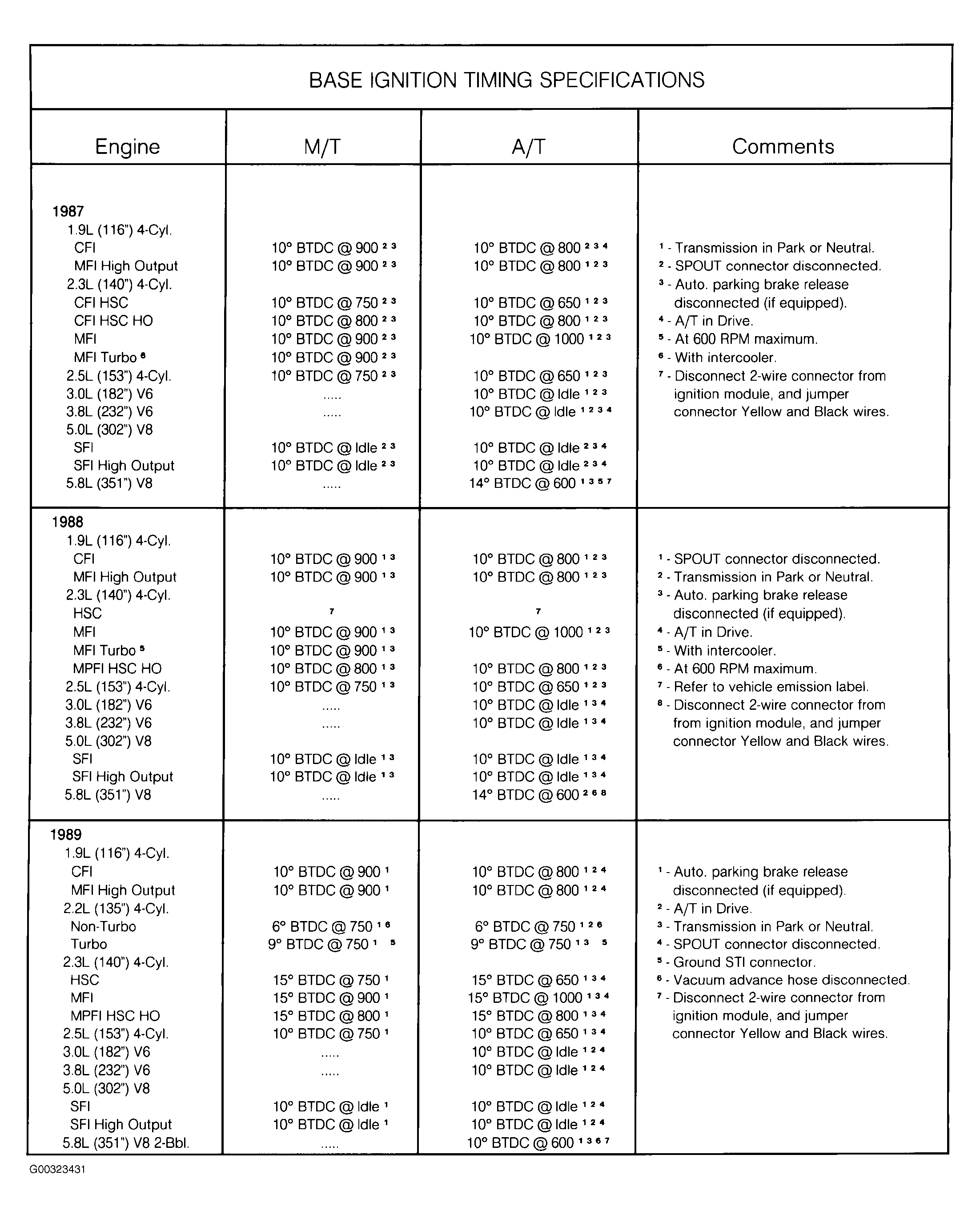

Fig 7:

G00323431

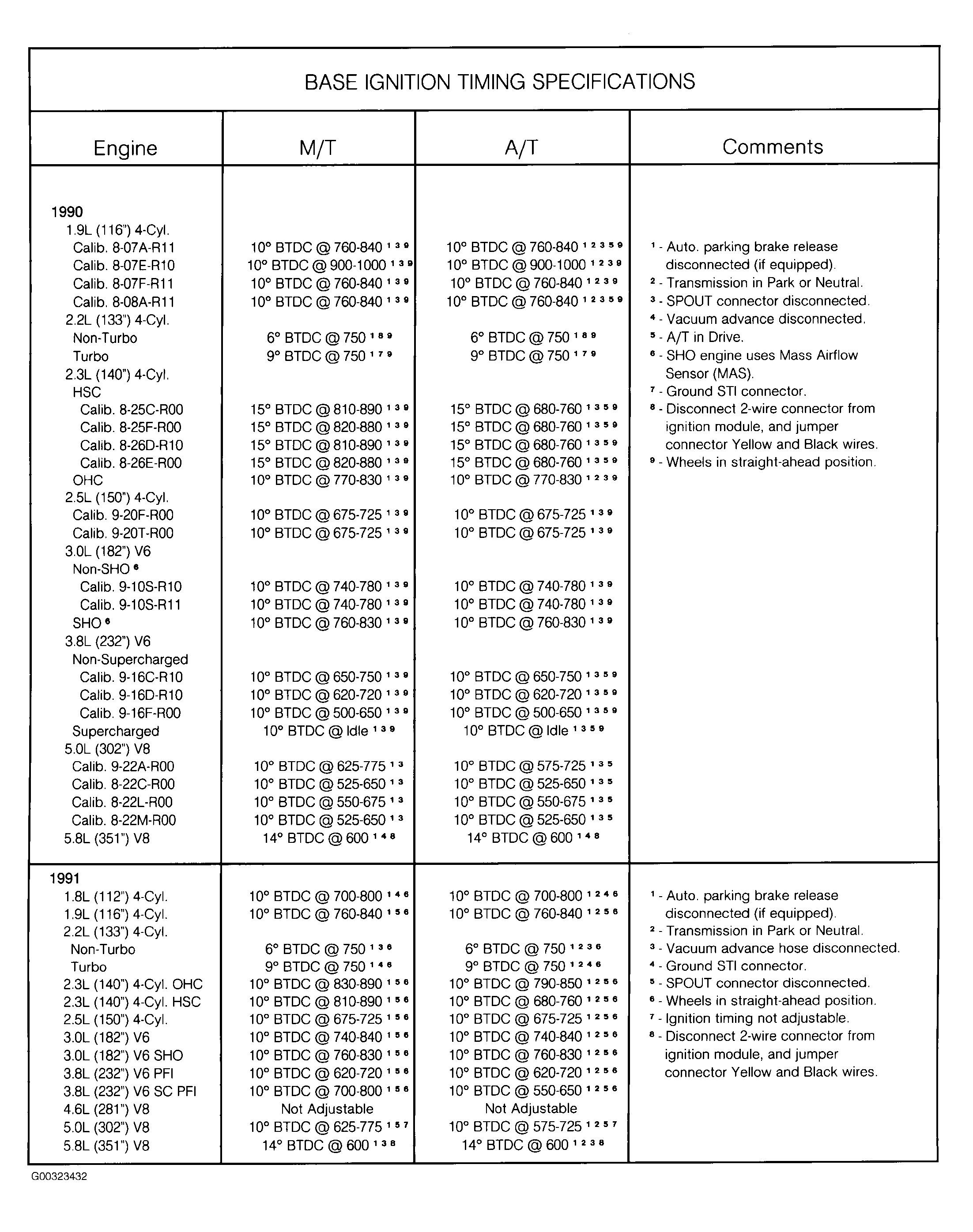

Fig 8:

G00323432

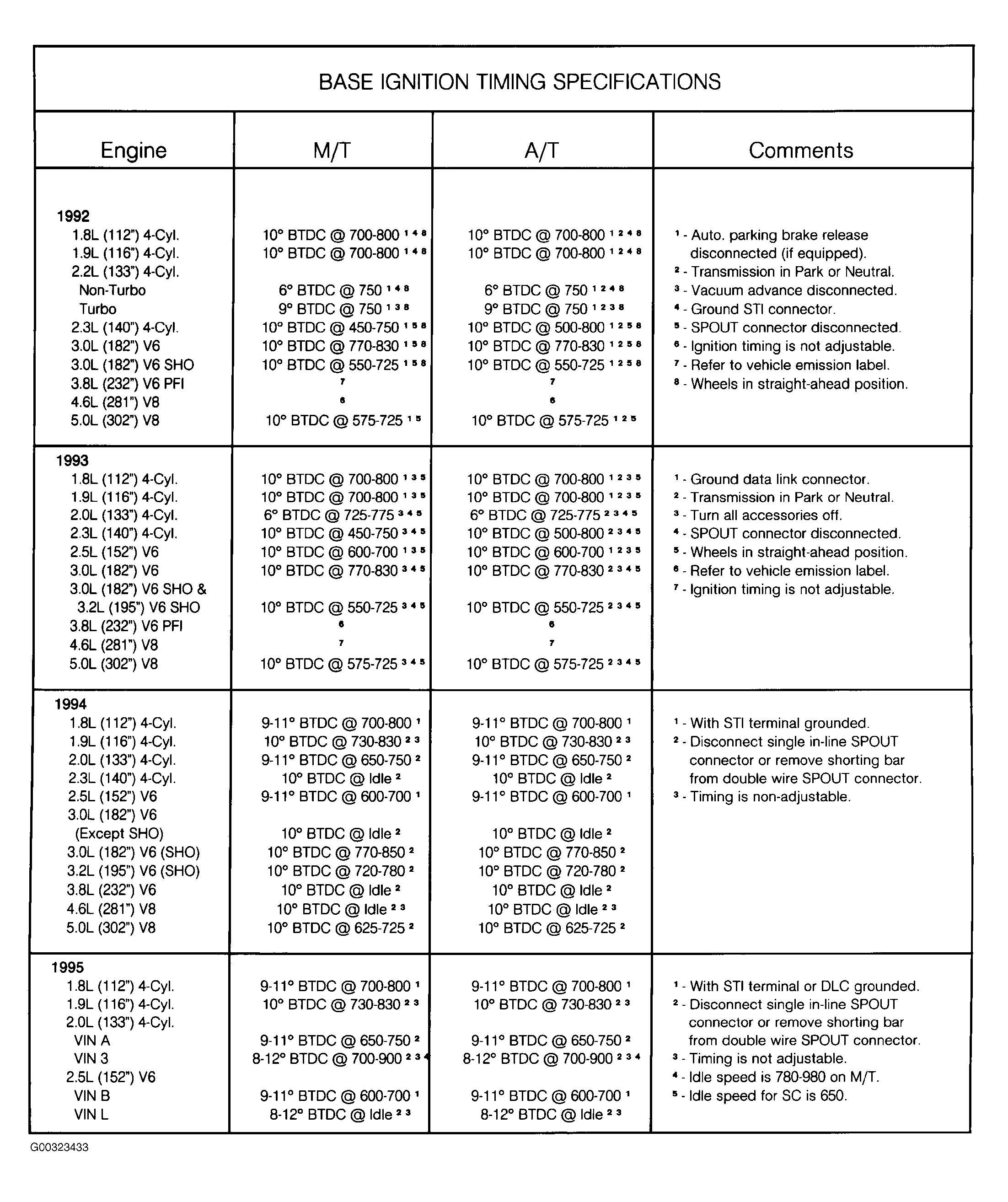

Fig 9:

G00323433

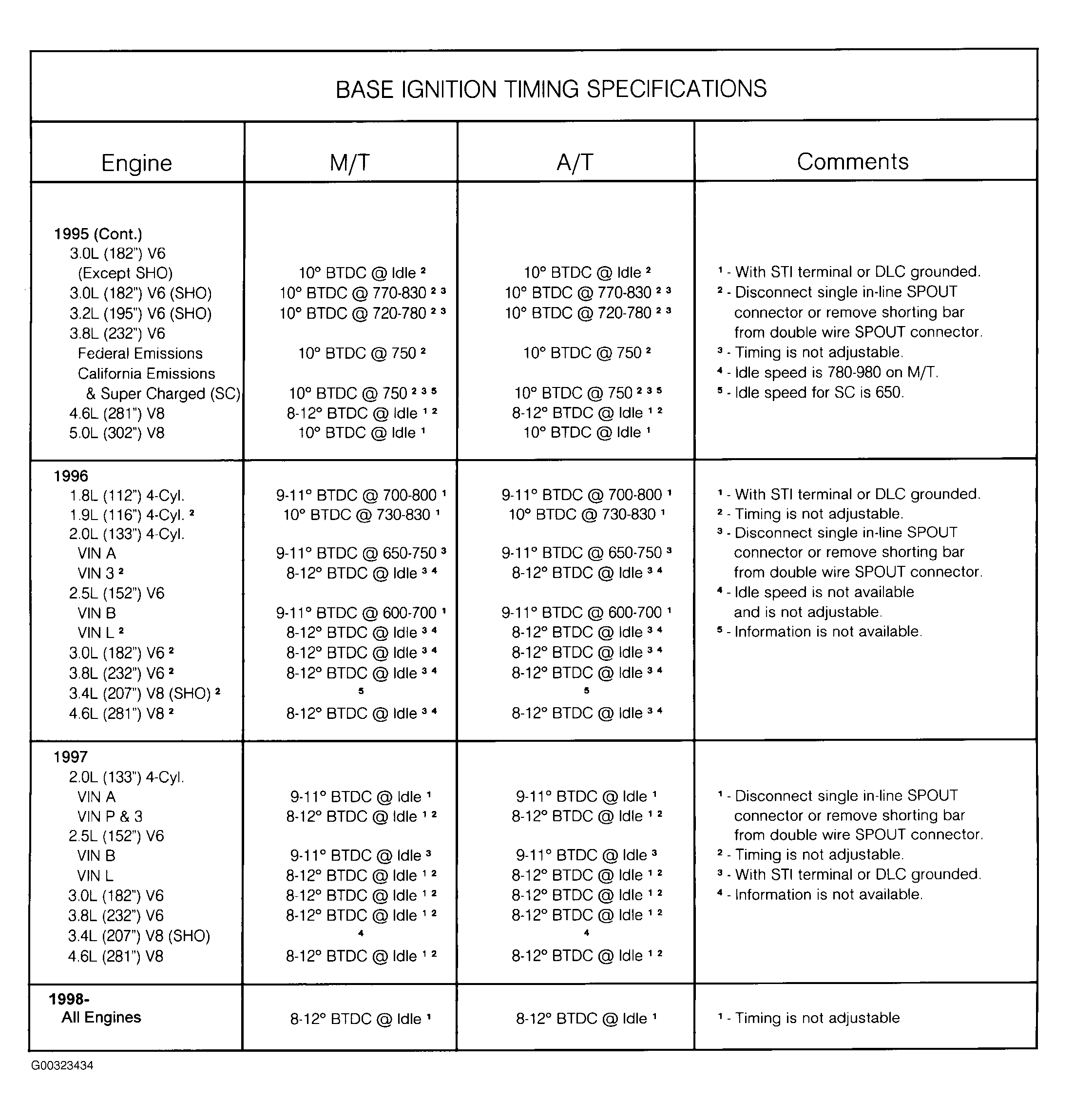

Fig 10:

G00323434
