No Blower, Ign. In Run, Engine Warm, Auto Mode
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
No Blower, Ign. In Run, Engine Warm, Auto Mode

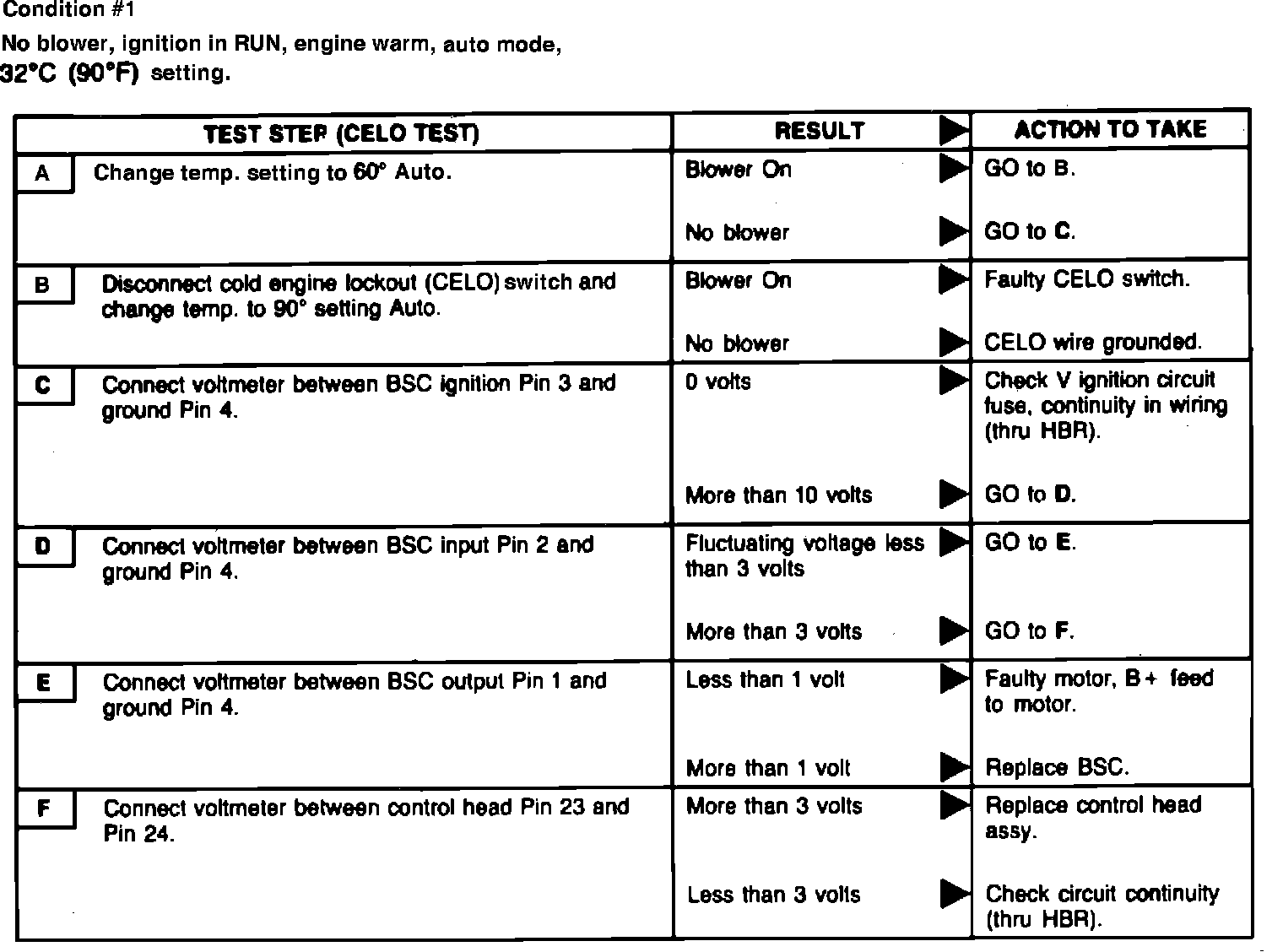

Fig. 64 No Blower, Ign. In Run, Engine Warm, Auto Mode:
