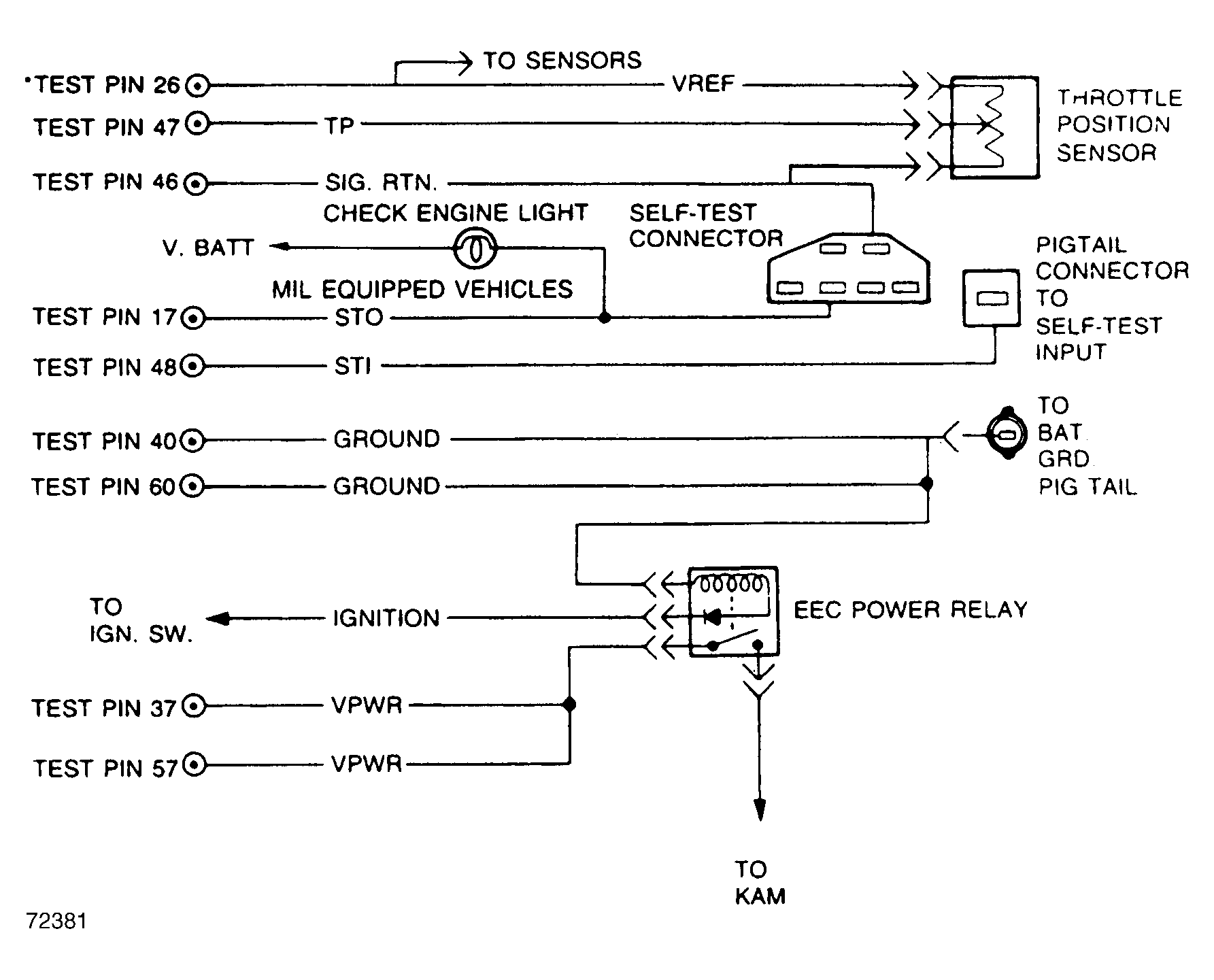

Test D16 - Output State Check Not Functioning
NOTE:
Perform this TEST when directed by other test procedures.
- Checking Service Codes - Turn key off and wait 10 seconds. Perform KEY ON/ENGINE OFF (KOEO) SELF-TEST and leave key on to enter OUTPUT STATE CHECK. If codes 23, 53, 63 or 68 are displayed, go to KEY ON ENGINE OFF (KOEO) - TEST MENU and service code(s) as instructed. If no codes are displayed, go to TEST D14 , step 1). If code 11 (Pass) is displayed, go to next step.
- Checking Throttle Linkage - Check throttle and linkage for sticking or binding. If throttle and linkage are okay, replace TPS and repeat QUICK TEST . If throttle and linkage are binding, repair as necessary and repeat QUICK TEST.
