Service Code Definitions

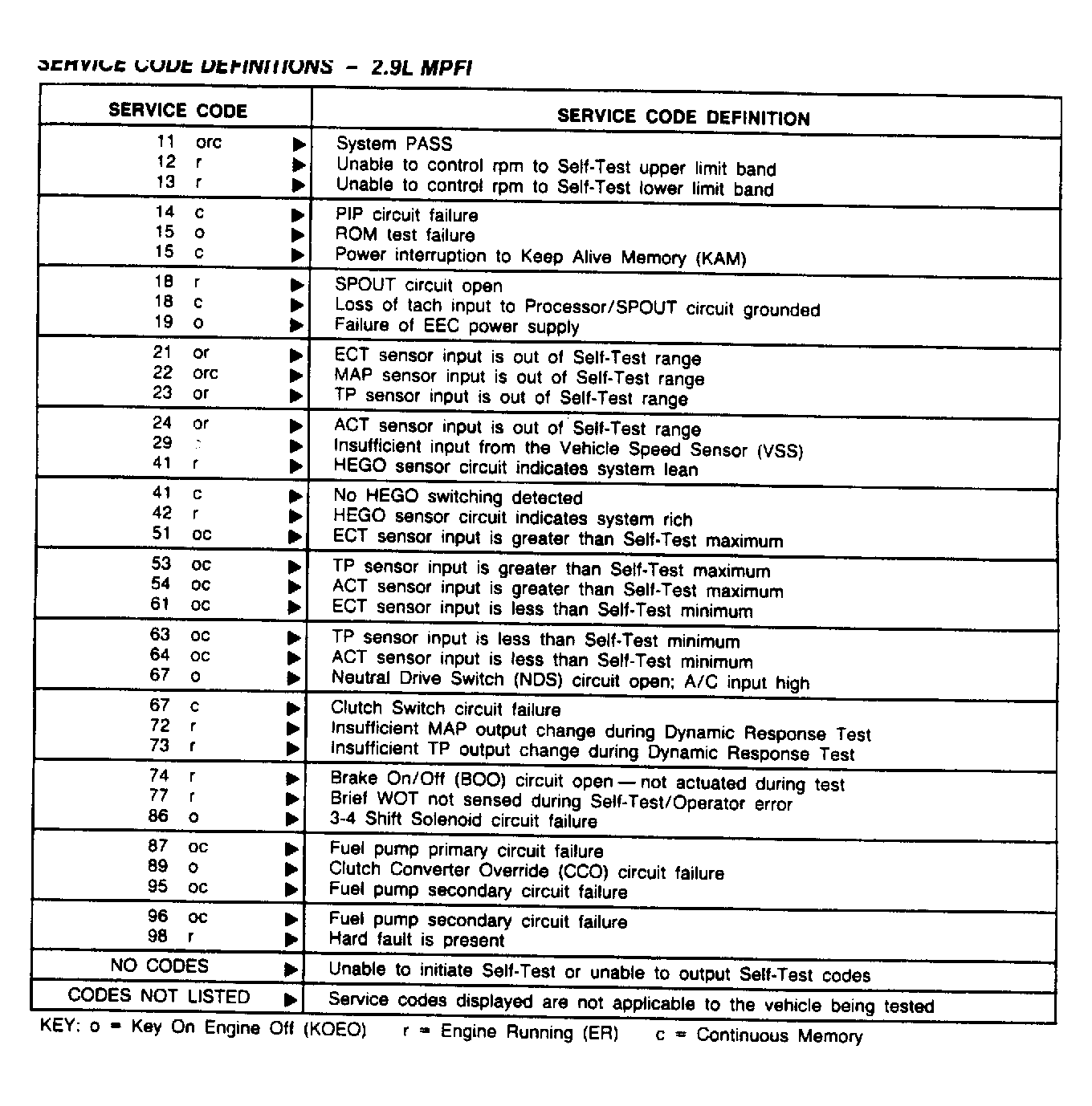

Fig 1: 2.9L Service Code Definitions
NOTE:
CIRCUIT TESTS are grouped in the following categories.
A1-A3 Preliminary Tests
B1-B17 Input Sensor Tests
C1-C2 Fuel Control Systems
D1-D25 ECA Output Tests
