Alternator Specifications

ALTERNATOR SPECIFICATIONS

Application In. (mm)
Brush Length
New .65 (16.5)
Wear Limit .30 (8)

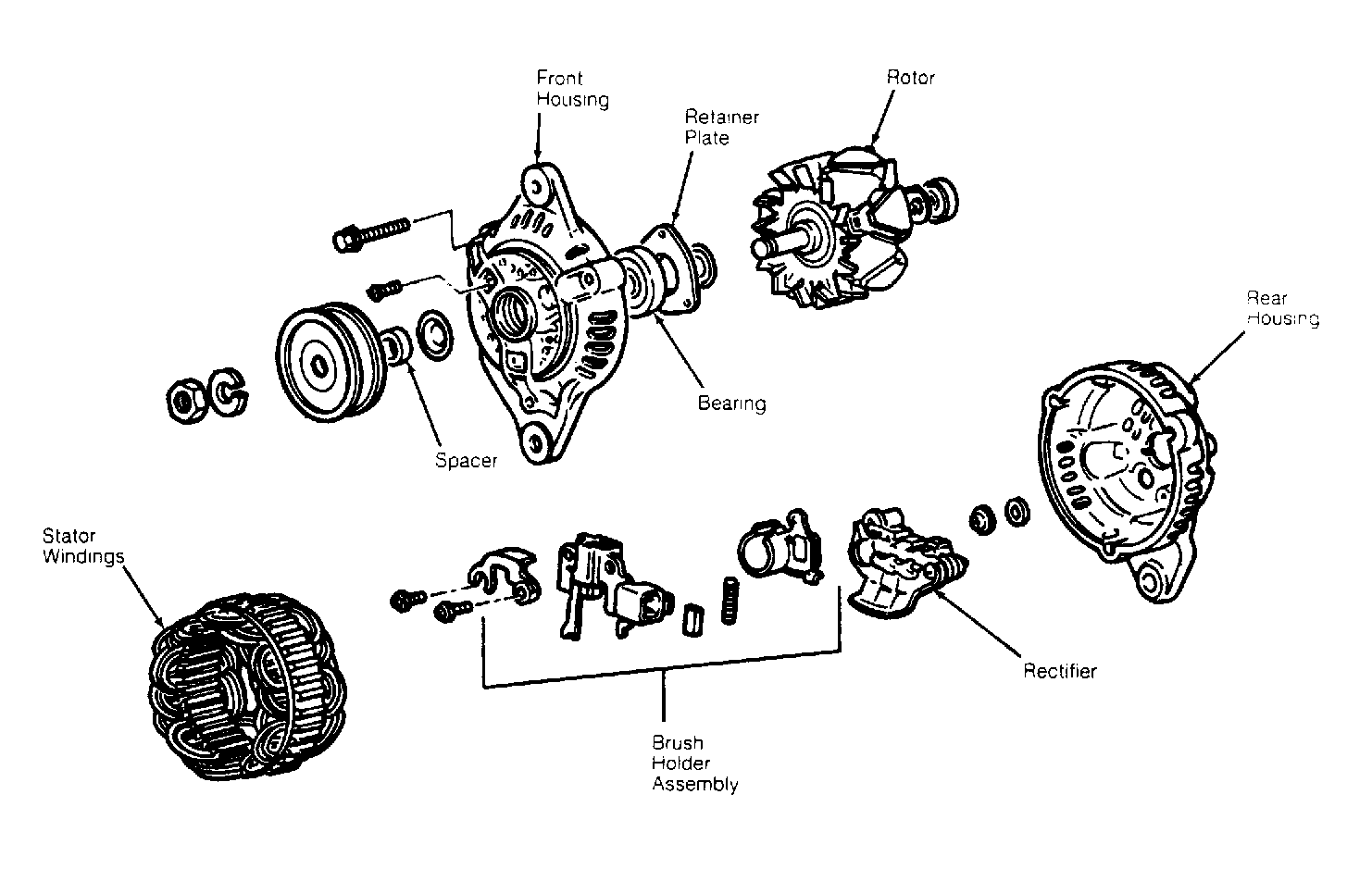

Fig 1: Exploded View of Alternator
G106362Courtesy of FORD MOTOR CO.
