Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Anti-Lock Brake System (ABS)Control Module | Under driver's seat. |

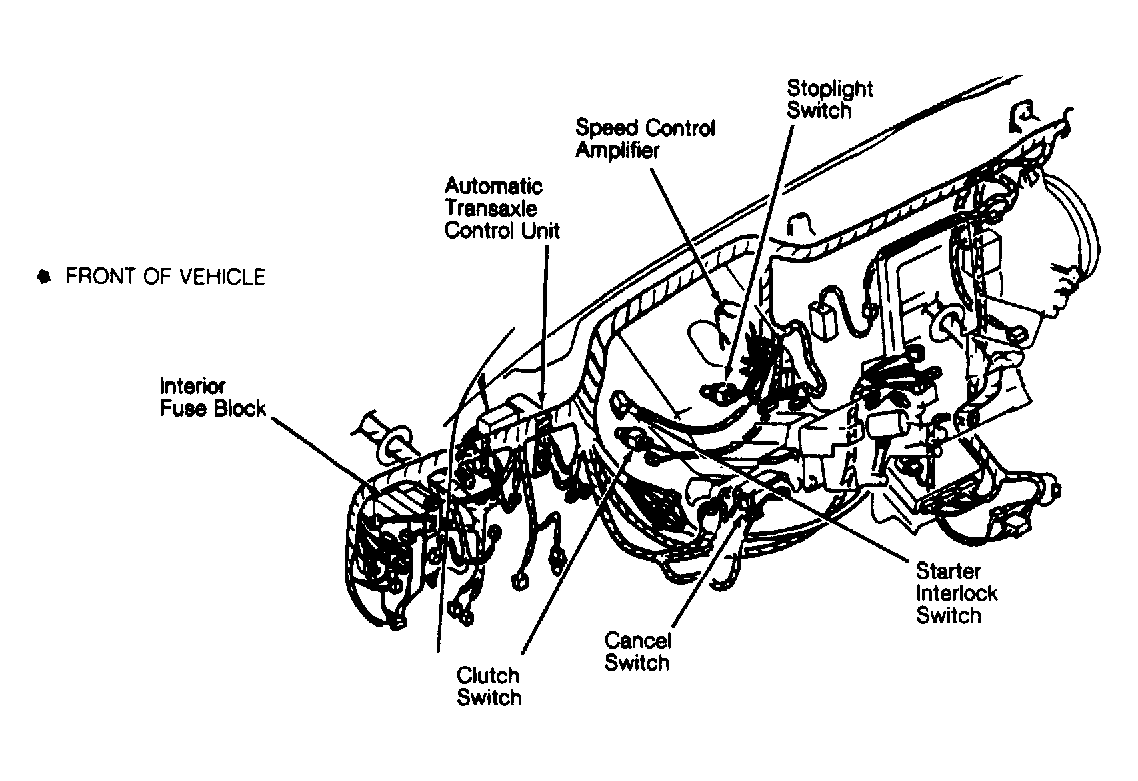

| Automatic Transaxle Control Unit | In front of dash left side. See Figure . |
| Central Processing Unit (CPU) | Behind dash, left of steering column. See Figure . |
| Electrical Load Unit | In front of ECA and center console. |
| Electronic Control Assembly (ECA) | Forward of center console. |
| Ignition Module (Turbo) | On left rear of engine bay, near ignition coil. |

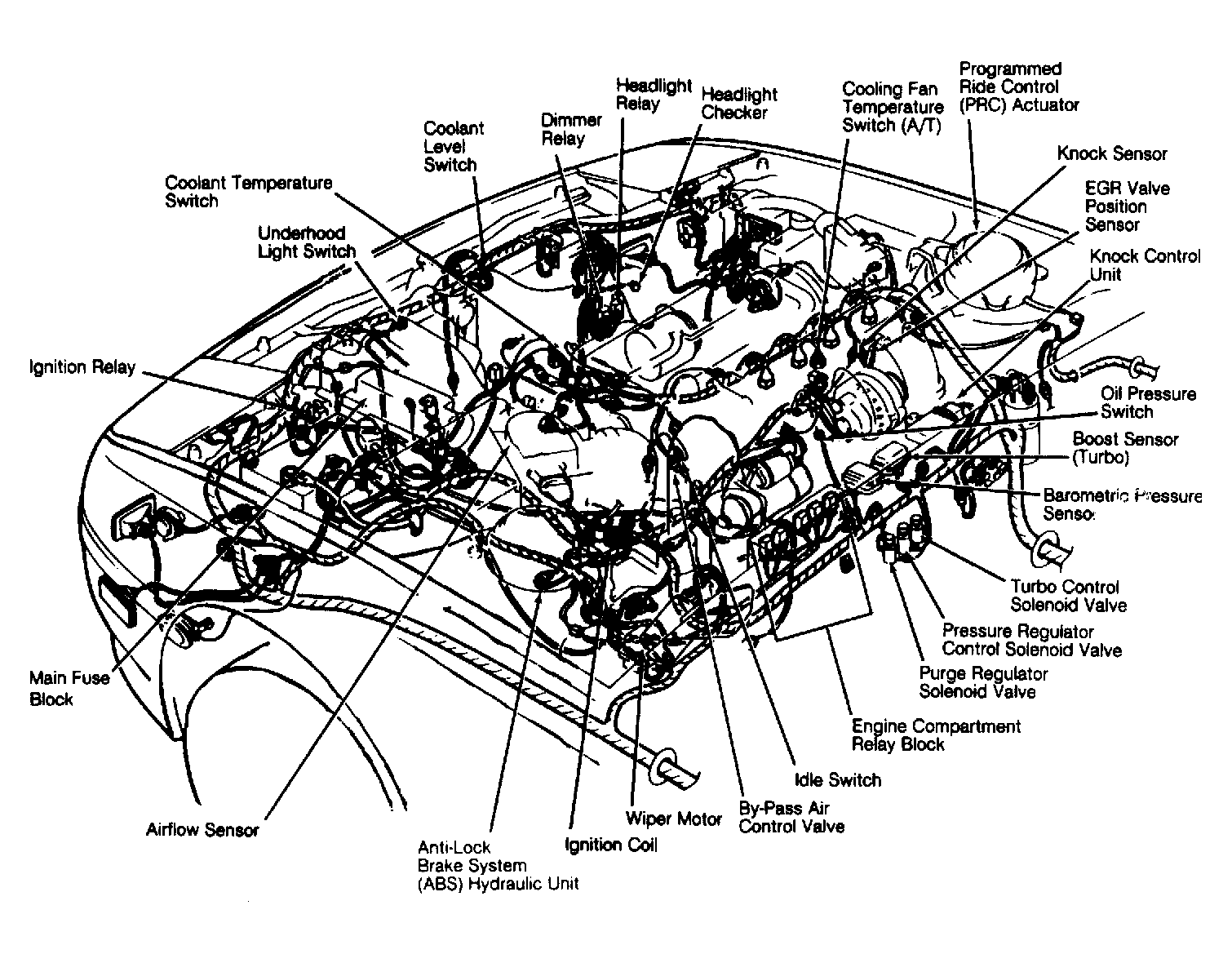

| Knock Control Unit (Turbo) | On center of firewall. See Figure . |
| Variable Assist Power Steering (VAPS) Control Unit | Under driver's seat. |
| Prog. Ride Control (PRC) Module | Under passenger's seat. |
