Integral Relay Control Module

The module interfaces with the EEC-IV to control the cooling fan, A/C clutch and fuel pump.

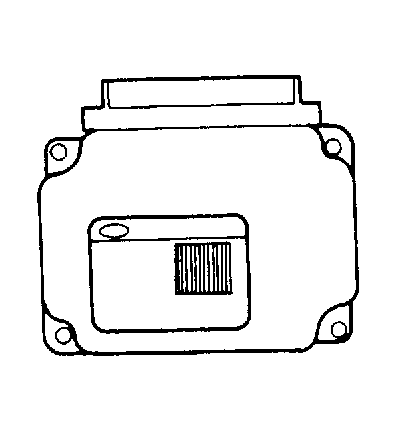

Fig 1: Integral Relay Control Module
G55780
