Vacuum Reservoir

Remove vacuum reservoir hoses. Using a vacuum pump, apply vacuum at port "A" and ensure vacuum is not held. See Fig 1 . Apply vacuum at "B" and ensure vacuum is held. Replace vacuum reservoir if necessary.

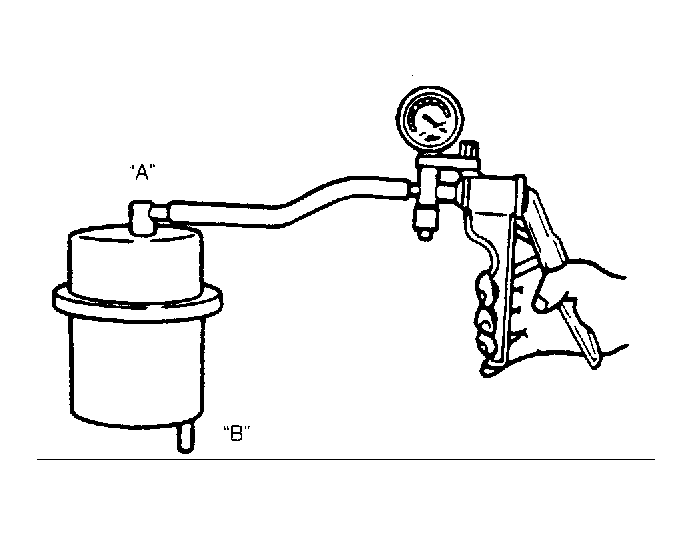

Fig 1: Testing EGR Vacuum Reservoir

Courtesy of FORD MOTOR CO.
