3-Way Check Valve

Plug port "A". Blow air into port "B" and verify that air exits at port "C". With port "A" blocked, apply vacuum to port "B" and verify that no vacuum is held. See Fig 1 .

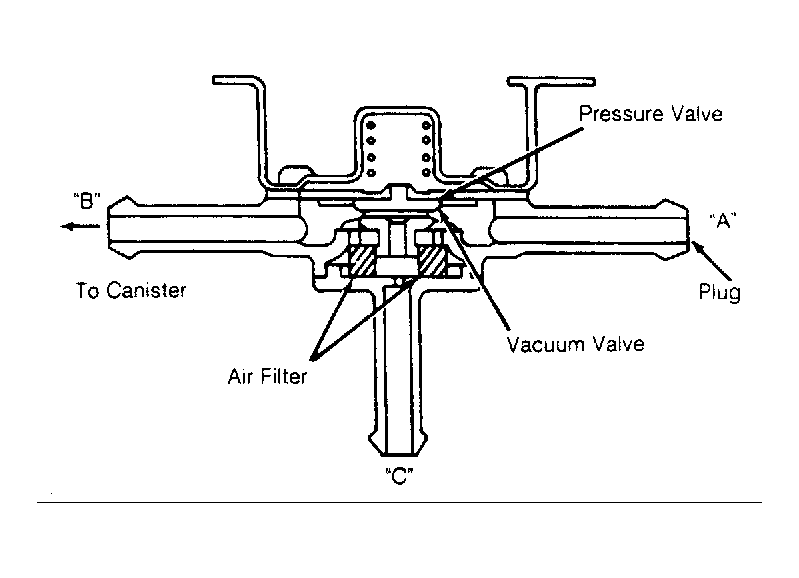

Fig 1: 3-Way Check Valve

Courtesy of FORD MOTOR CO.
