Calibration Labels

To find correct calibration number and revision level, refer to calibration label. See Fig 1-Fig 3.

On 1983-88 models, the calibration label is attached to engine valve cover. On 1989 models, the calibration label is attached to passenger's door jamb.

Fig 1: Identifying Vehicle Calibration Label (1983)

Courtesy of FORD MOTOR CO.

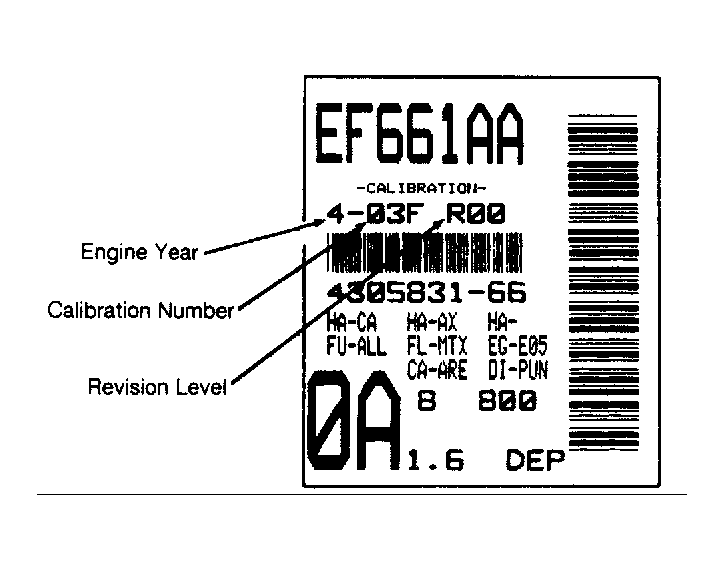

Fig 2: Identifying Vehicle Calibration Label (1984-1988)

Courtesy of FORD MOTOR CO.

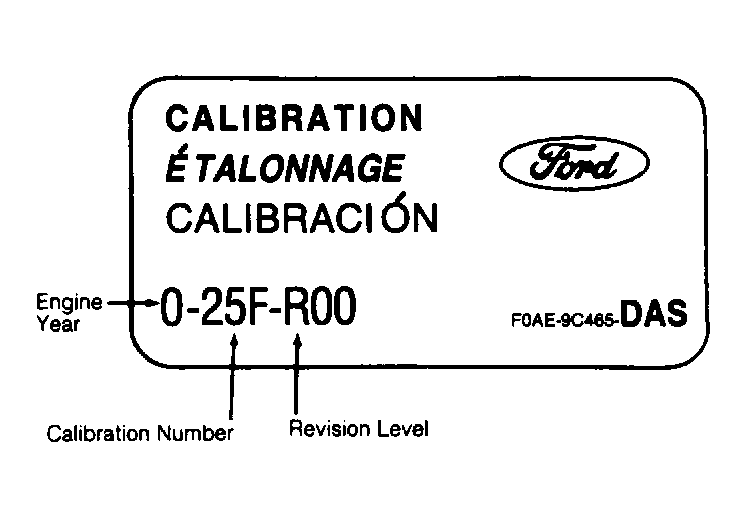

Fig 3: Identifying Vehicle Calibration Label (1989)

Courtesy of FORD MOTOR CO.
