Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| Circuit Breakers | ||
| Cigar/Multi-Function Switch/ & Lumbar Seats | In cavity No. 12 of interior fuse block. | |

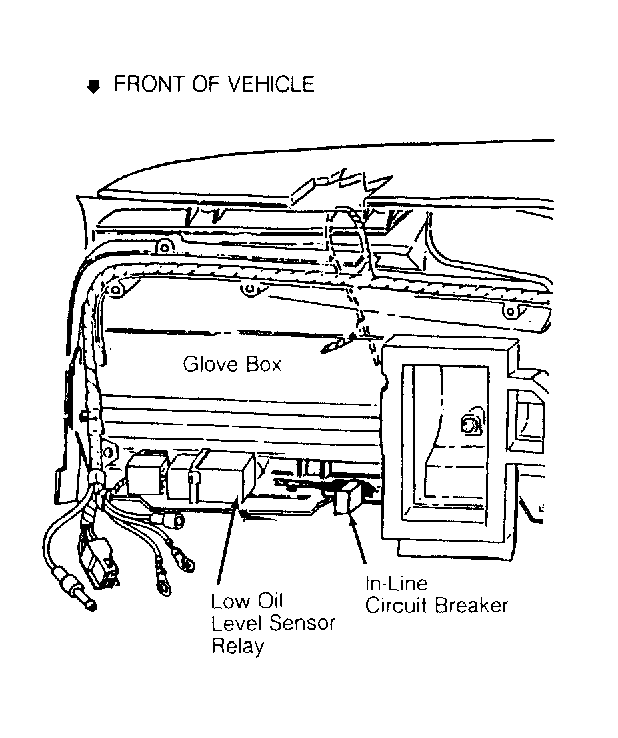

| In-Line | Behind right dash, below glove box. See Figure . | |
| Power Windows | In cavity No. 14 of interior fuse block. | |
| Rear Wiper/Rear Defroster | On right side of dash, below glove box. | |
| Windshield Wiper | In cavity No. 2 of interior fuse block. | |
| Fuse/Relay Block | ||

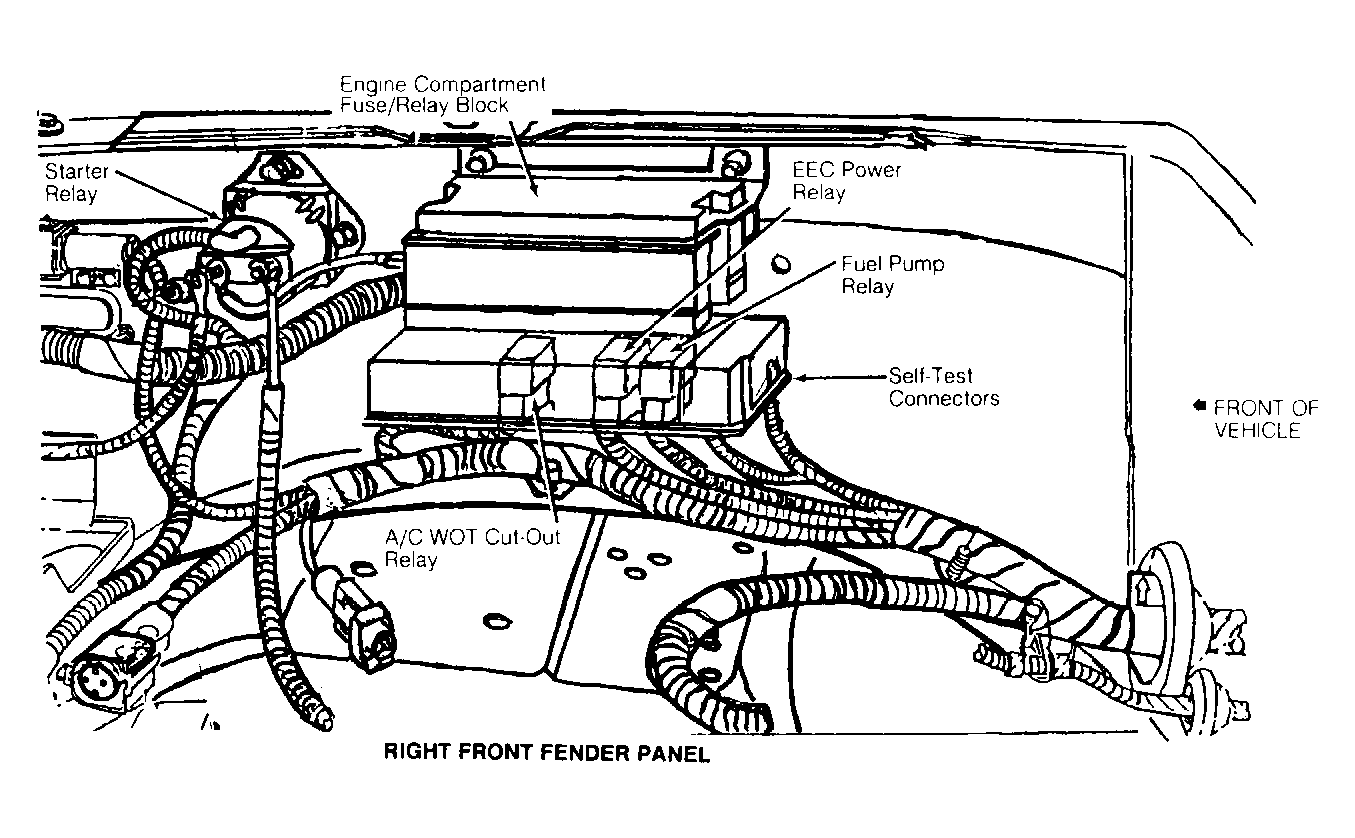

| Engine Compartment | On right front fender panel. See Figure . | |
| Interior | Left of steering column, behind trim panel. | |
