Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| ABS Control Module | Behind dash, right of steering column, left of ashtray. See Figure . | |

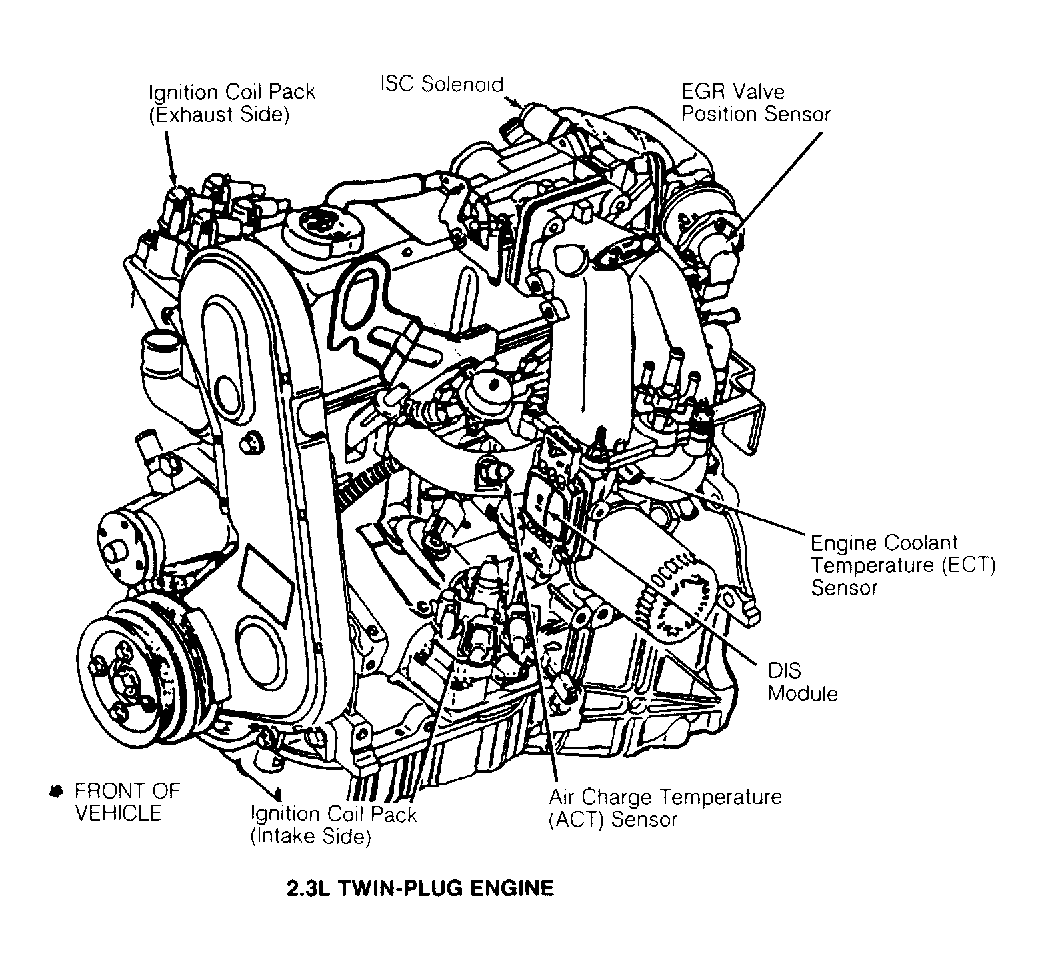

| Distributorless Ignition System (DIS) Module (2.3L) | Vertically mounted on front of intake manifold. See Figure . | |
| EDIS Module (4.0L) | Right hand side of battery on radiator support. | |

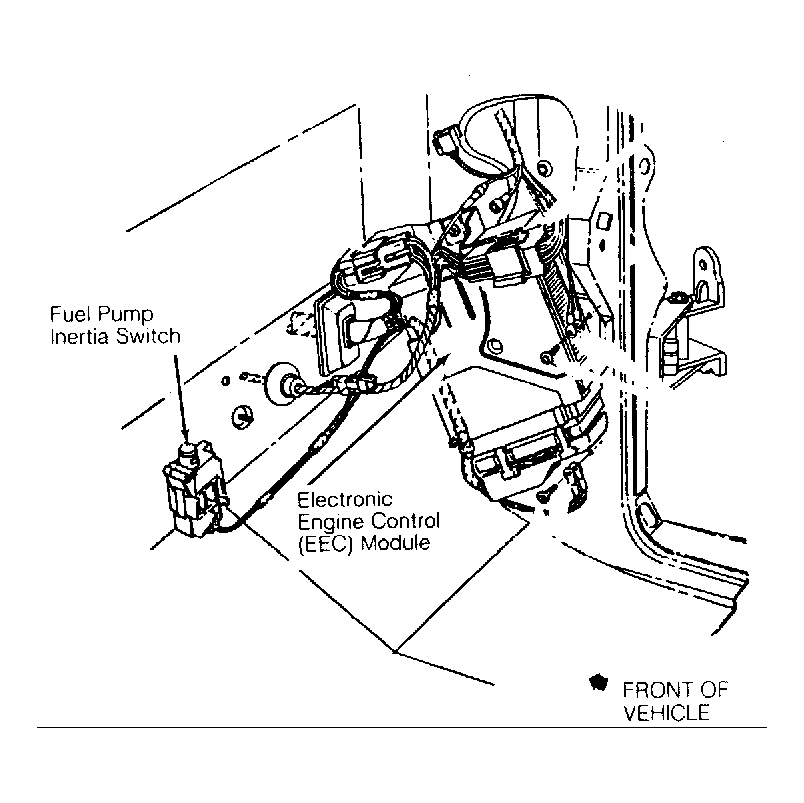

| Electronic Engine Control (EEC) (Also ECA) Module | Behind right kick panel. See Figure . | |
| Electronic Shift Control Module | ||
| Bronco II & Super Cab | Behind driver's door pillar, behind trim panel. | |
| Ranger | On left lower rear of cab, behind driver's side seat. | |
| TFI Ignition Module (2.9L) | On distributor. | |
| Warning Chime Module | Behind dash, left of steering column. | |

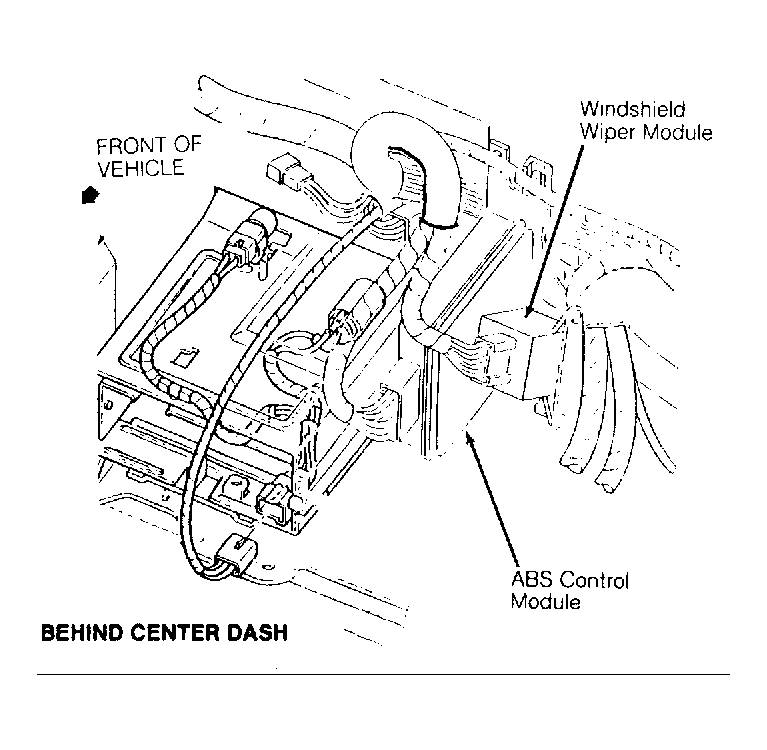

| Windshield Wiper Module | Behind center of dash, left of ashtray. See Figure . | |
