Alignment Specifications

WHEEL ALIGNMENT SPECIFICATIONS ⁽¹⁾

Application

Fraction

Decimal

Aerostar

Camber (Degrees)

0 +/- 3/4

(0 +/- .75)

Caster (Degrees) ⁽¹⁾

3 1/2 +/- 1

(3.5 +/- 1)

Toe-in (Inches)

0 +/- 3/32

(0 +/- .19)

Toe-in (Degrees)

0 +/- 3/8

(0 +/- .38)

Bronco II & Ranger 2WD

Camber (Degrees)

1/4 +/- 1/2

(.25 +/- .50)

Caster (Degrees) ⁽¹⁾

3 1/2 +/- 1

(3.5 +/- 1)

Toe-in (Inches)

0 +/- 1/8

(0 +/- .13)

Toe-in (Degrees)

0 +/- 1/4

(0 +/- .25)

Bronco II & Ranger 4WD W/Dana 28 Axle

Camber (Degrees)

3/8 +/- 1/2

(.38 +/- .50)

Caster (Degrees) ⁽¹⁾

3 1/2 +/- 1

(3.5 +/- 1)

Toe-in (Inches)

0 +/- 1/8

(0 +/- .13)

Toe-in (Degrees)

0 +/- 1/4

(0 +/- .25)

Bronco & F-150 2WD

Camber (Degrees)

1 +/- 1/2

(1.0 +/- .50)

Caster (Degrees)

2 3/4 +/- 1 3/4

(2.75 +/- 1.75)

Toe-in (Inches)

0 +/- 1/8

(0 +/- .13)

Toe-in (Degrees)

0 +/- 1/4

(0 +/- .25)

F-150/250 2WD

Camber (Degrees)

1 +/- 1/2

(1.0 +/- .50)

Caster (Degrees)

2 3/4 +/- 1 3/4

(2.75 +/- 1.75)

Toe-in (Inches)

0 +/- 1/8

(0 +/- .13)

Toe-in (Degrees)

0 +/- 1/4

(0 +/- .25)

Bronco & F-150 4WD

Camber (Degrees)

1 +/- 1

(1.0 +/- 1.0)

Caster (Degrees)

2 1/2 +/- 1 1/2

(2.5 +/- 1.5)

Toe-in (Inches)

0 +/- 1/8

(0 +/- .13)

Toe-in (Degrees)

0 +/- 1/4

(0 +/- .25)

F-150/250/350 4WD

Camber (Degrees)

1 +/- 1

(1.0 +/- 1.0)

Caster (Degrees)

2 3/4 +/- 1 1/2

(2.75 +/- 1.50)

Toe-in (Inches)

0 +/- 1/8

(0 +/- .13)

Toe-in (Degrees)

0 +/- 1/4

(0 +/- .25)

⁽¹⁾	Specifications are for vehicles without aftermarket modifications. For vehicles with aftermarket modifications, See Fig 1 and Fig 2 .

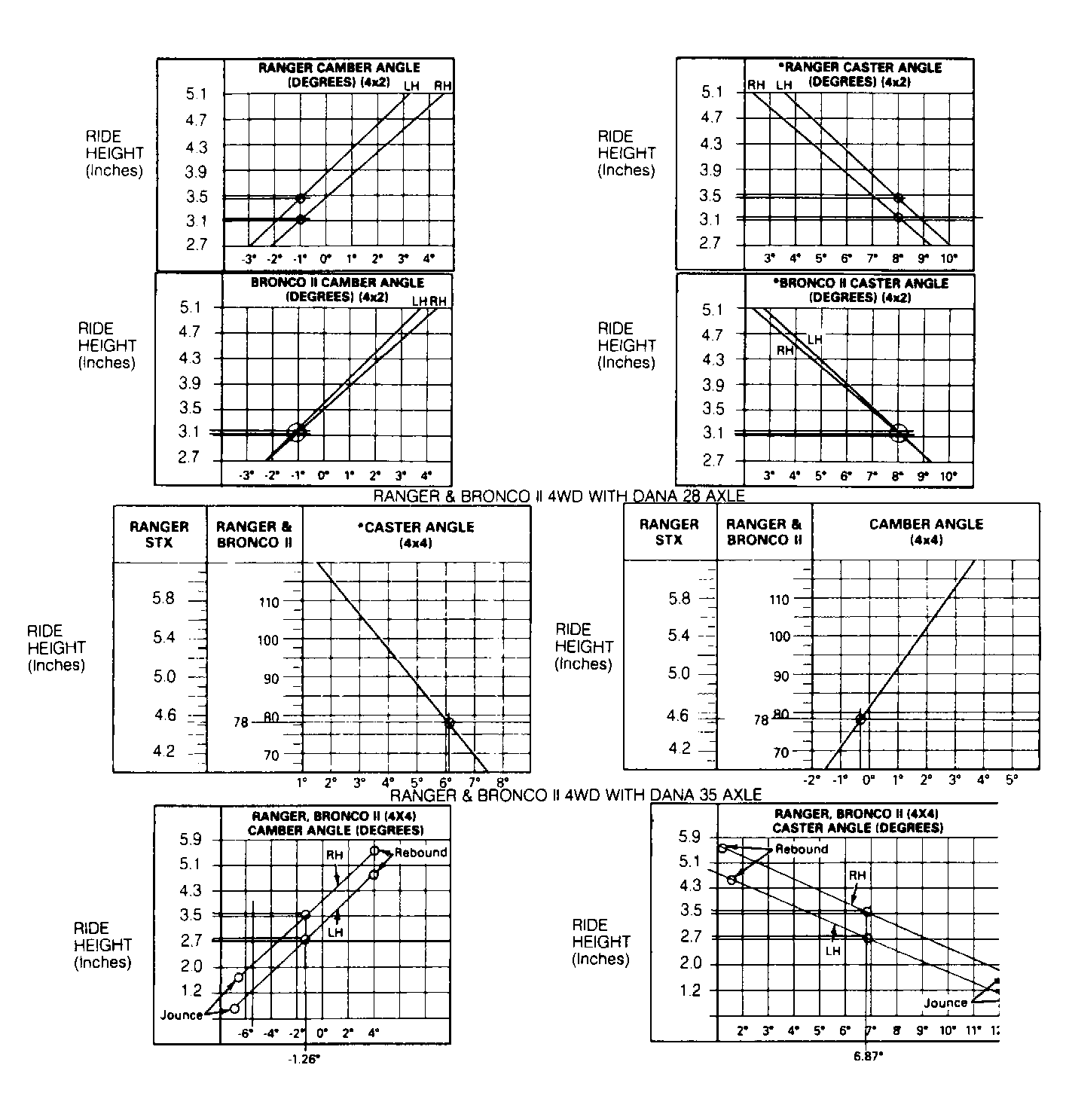

Fig 1: Camber/Caster Specification Graphs (Bronco II & Ranger - When Equipped With Aftermarket Modifications)

Courtesy of FORD MOTOR CO.

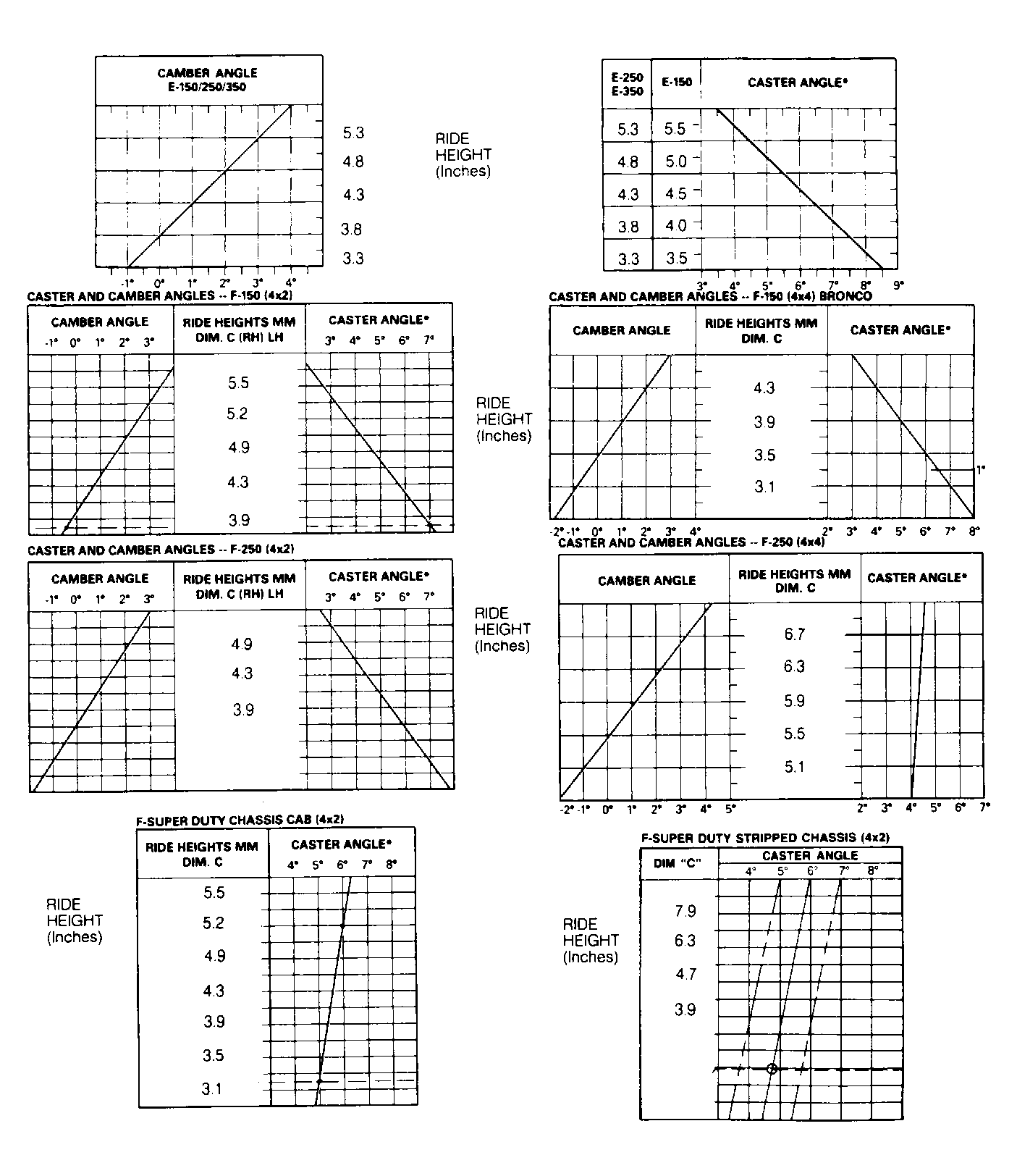

Fig 2: Camber/Caster Specification Graphs (Bronco, "E" & "F" Series - When Equipped With Aftermarket Modifications)

Courtesy of FORD MOTOR CO.
