Distributor Specifications

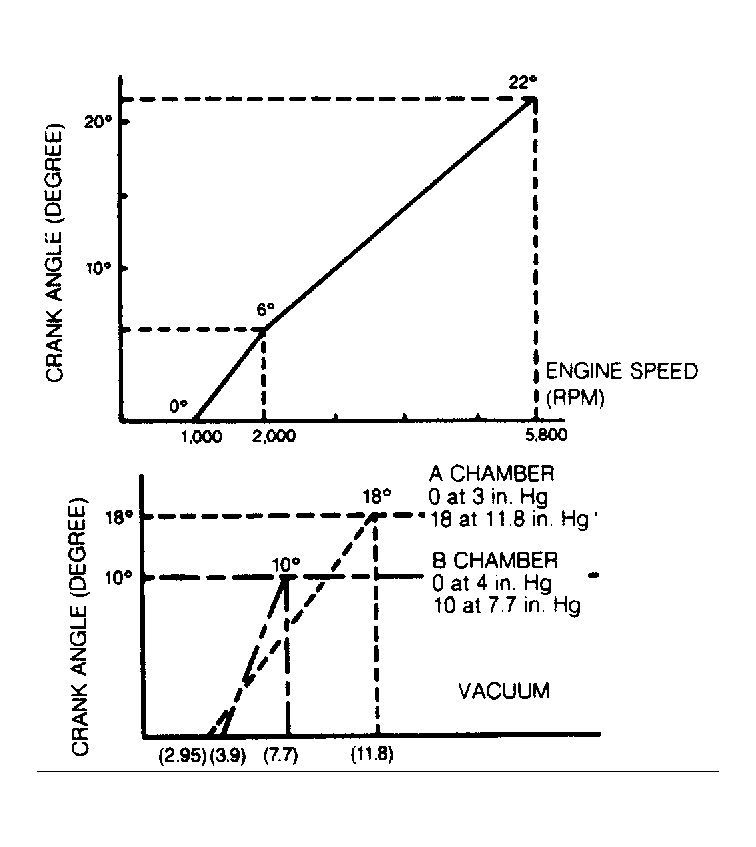

Fig 1: Ignition Advance Curve
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
