Engine Coolant Temperature (ECT) Sensor Test

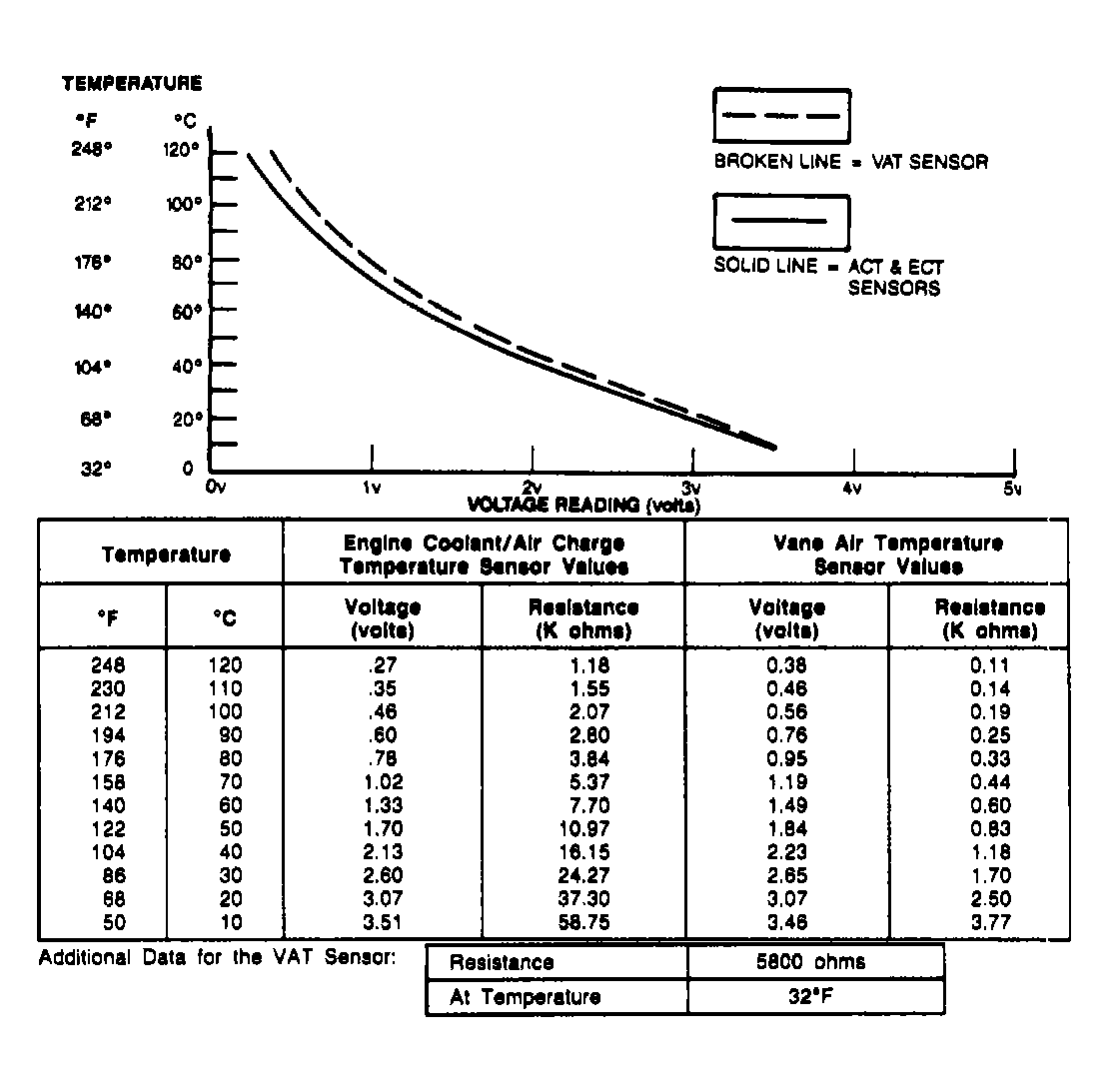

Disconnect suspect temperature sensor. Set DVOM to 200 k/ohm scale. Measure resistance between sensor terminals. Refer to ECT & ACT TEMPERATURE SENSORS VOLTAGE & RESISTANCE SPECIFICATIONS (EXCEPT PROBE 2.2L) table for voltage and resistance specifications for all models except Probe with 2.2L. Refer to ECT & VAT TEMPERATURE SENSORS VOLTAGE & RESISTANCE SPECIFICATIONS (PROBE 2.2L) table for voltage and resistance specifications for Probe models with 2.2L. See Fig 1 .
ECT & ACT TEMP SENSORS VOLTAGE & RESISTANCE SPECS (EXCEPT PROBE 2.2L)
| Sensors °F (°C) | Specifications Volts (K Ohms) | |
|---|---|---|
| ECT & ACT (Except Probe 2.2L) | ||
| 248 (120) | .27 (1.18) | |
| 230 (110) | .35 (1.55) | |
| 212 (100) | .46 (2.07) | |
| 194 (90) | .60 (2.80) | |
| 176 (80) | .78 (3.84) | |
| 158 (70) | 1.02 (5.37) | |
| 140 (60) | 1.33 (7.70) | |
| 122 (50) | 1.70 (10.97) | |
| 104 (40) | 2.13 (16.15) | |
| 86 (30) | 2.60 (24.27) | |
| 68 (20) | 3.07 (37.30) | |
| 50 (10) | 3.51 (58.75) | |
ECT & VAT TEMP SENSORS VOLTAGE & RESISTANCE SPECS (PROBE 2.2L)
| Temperature °F (°C) | Voltage | (1) Resistance Ohms | ||
|---|---|---|---|---|
| -4 (-20) | 4.70 | 10-20 | ||
| 32 (0) | 3.40 | 4-7 | ||
| 68 (20) | 2.50 | 2-3 | ||
| 104 (40) | 2.00 | 0.9-1.3 | ||
| 140 (60) | 1.20 | 0.4-0.7 | ||
| 176 (80) | 0.70 | 0.2-0.4 | ||
|
||||
