Circuit Protection Devices
CAUTION:
DO NOT connect or disconnect Air Bag System Diagnostic Module (ASDM) electrical connector unless module mounting tabs are securely bolted (grounded) to vehicle. ALWAYS disconnect and isolate battery negative cable before servicing system.
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | ||
|---|---|---|---|
| Fuse Blocks | |||
| Interior Fuse Block | Behind left kick panel. See Figure & Figure . | ||
| Main Fuse Block | |||
| 3.0L | On front left of engine bay, to right of battery. See Figure & Figure . | ||
| 2.2L | On front left of engine bay, to right of battery. See Figure & Figure . | ||

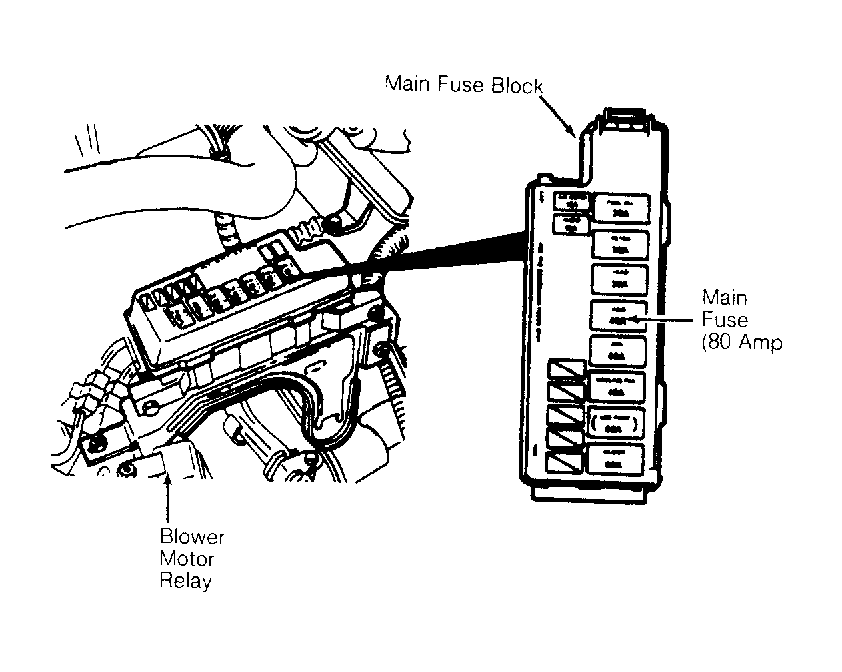

| Main Fuse (80 Amp) | In main fuse block. See Figure . | ||
| Rear Defroster Circuit Breaker | Above interior fuse block. See Figure . | ||
