Control Units
CONTROL UNITS LOCATION

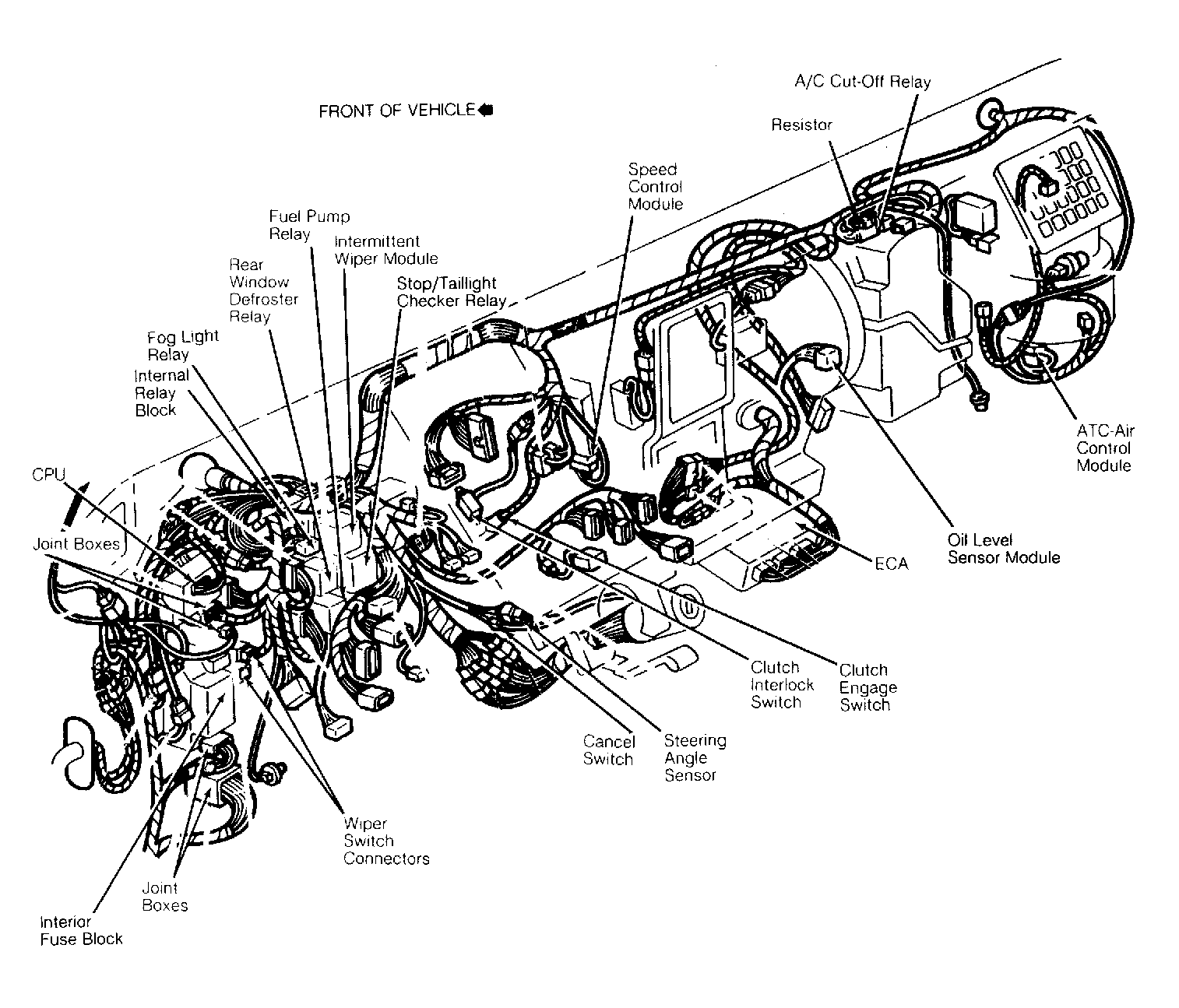

| Component | Location | |
|---|---|---|
| Anti-Lock Brake (ABS) Control Module | Under driver's seat. | |
| Auto. Temp. Control (ATC) Air Control Module | In center of instrument panel, behind left side of radio. See Figure . | |
| Automatic Transaxle Control Unit | In front of dash left side. | |

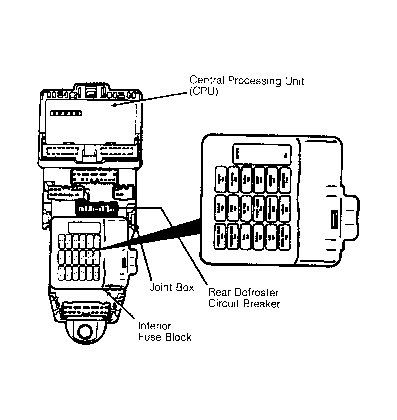

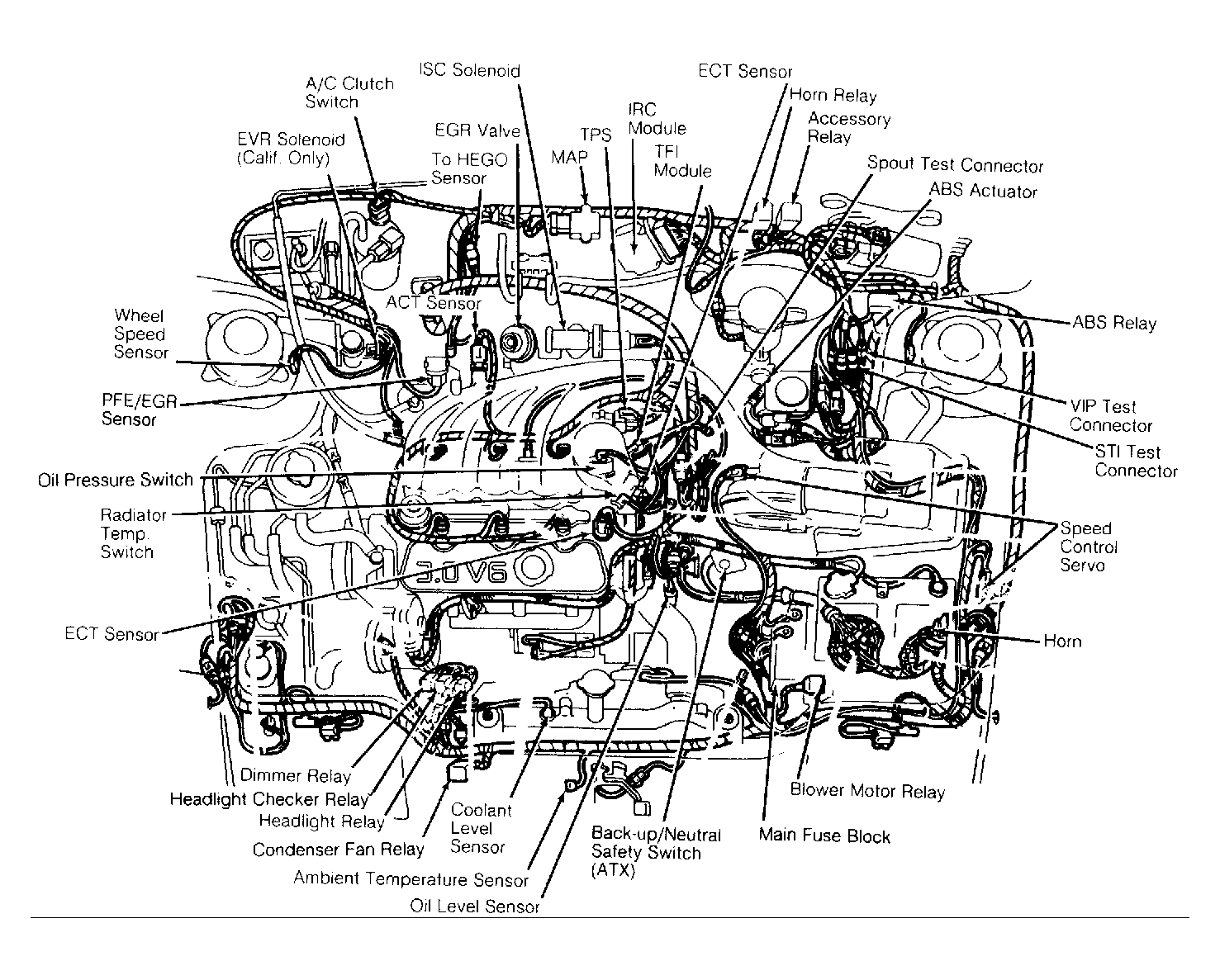

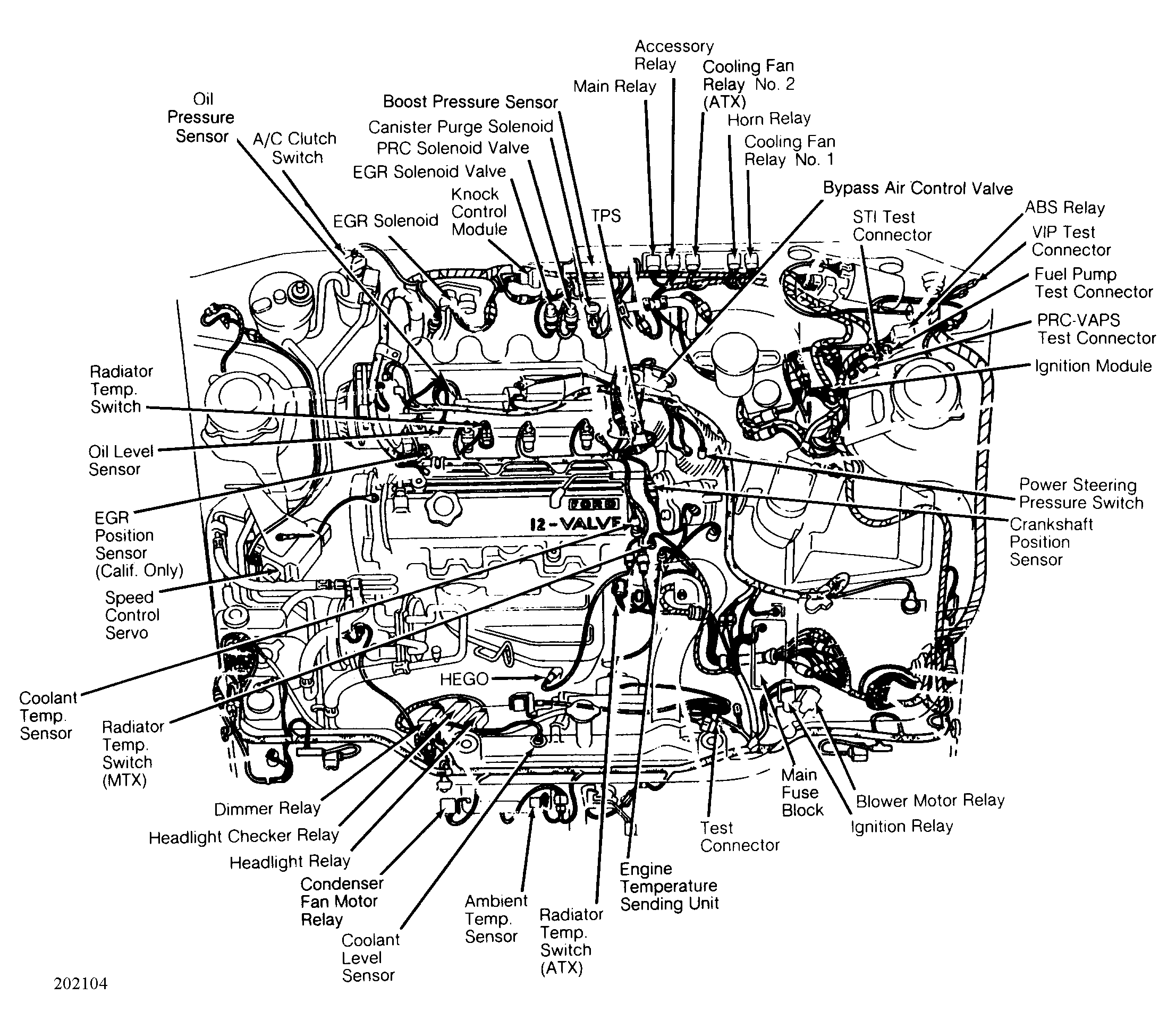

| Central Processing Unit (CPU) | Behind dash, left of steering column above fuse block. See Figure & Figure . | |
| Electrical Load Unit | In front of ECA and center console. | |
| Electronic Control Assembly (ECA) | Forward of center console. See Figure . | |
| Heater Control Module | Center of instrument panel, behind right side of radio. | |
| Ignition Module | ||
| 2.2L Turbo | On left rear of engine bay, next to ignition coil. | |
| 3.0L | On distributor. | |
| Integrated Relay Control (IRC) Module (3.0L Only) | Center of firewall, right of brake booster. See Figure . | |
| Intermittent Wiper Module | Behind left side of dash. See Figure . | |
| Knock Control Module | On center of firewall, to right of map sensor. See Figure . | |
| Oil Level Sensor Module | Behind right side of dash. See Figure . | |
| Passive Restraint Control Module | Behind interior quarter trim panel, at left of rear seat. | |
| Programmed Ride Control (PRC) Module | Under passenger's seat. | |
| Shift-Lock Control Module | At front of center console. | |
| Speed Control Module | Behind dash, upper right of steering column. See Figure . | |
| Variable Assist Power Steering (VAPS) Control Module | Under driver's seat. | |
