Removal (All Models)

On all models, disconnect negative battery cable.

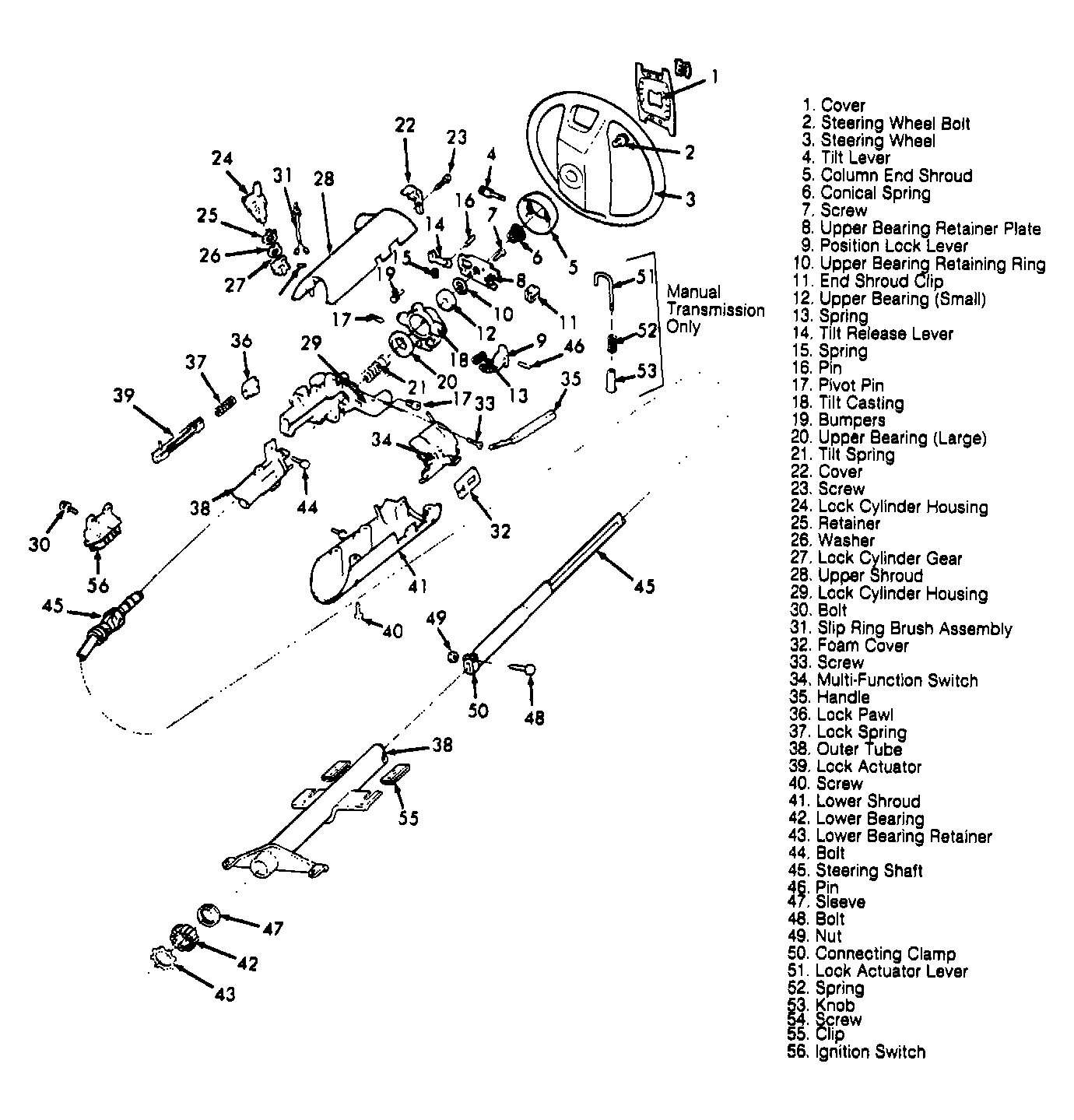

On Cougar, Tempo, Thunderbird and Topaz models with tilt wheel, remove column end shroud by unsnapping shroud from retaining clip at 9 o'clock position of shroud. See Figure and Figure.

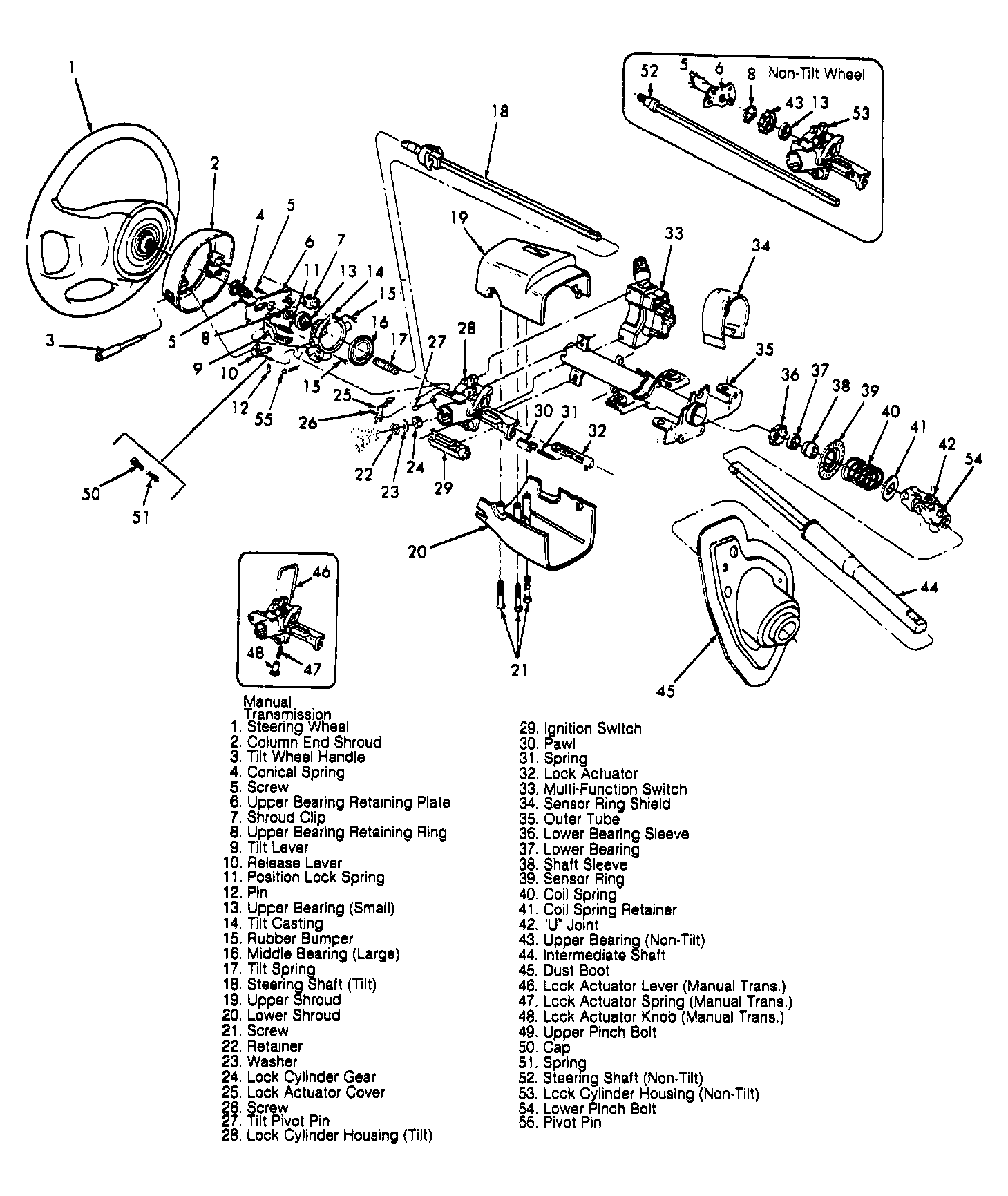

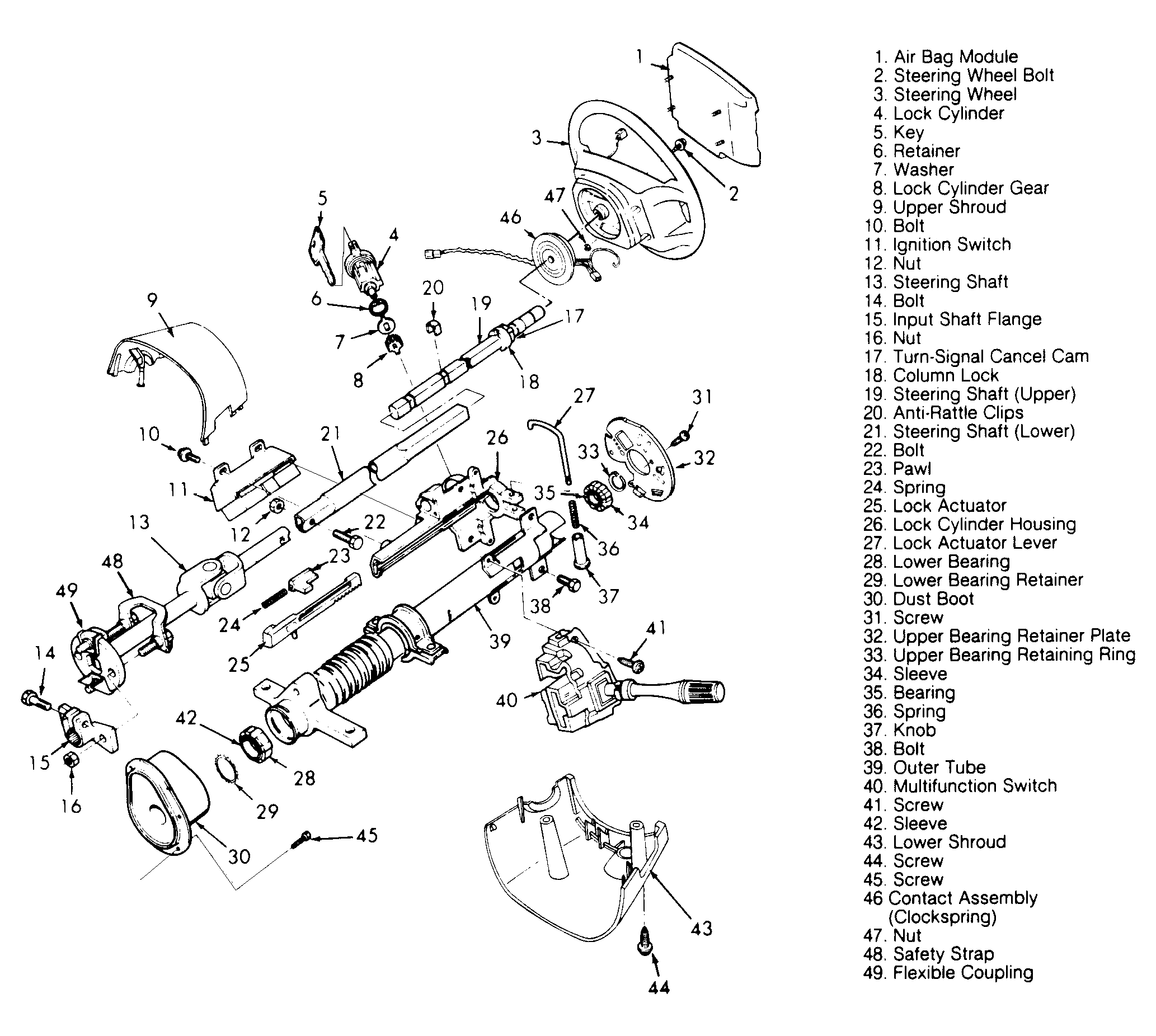

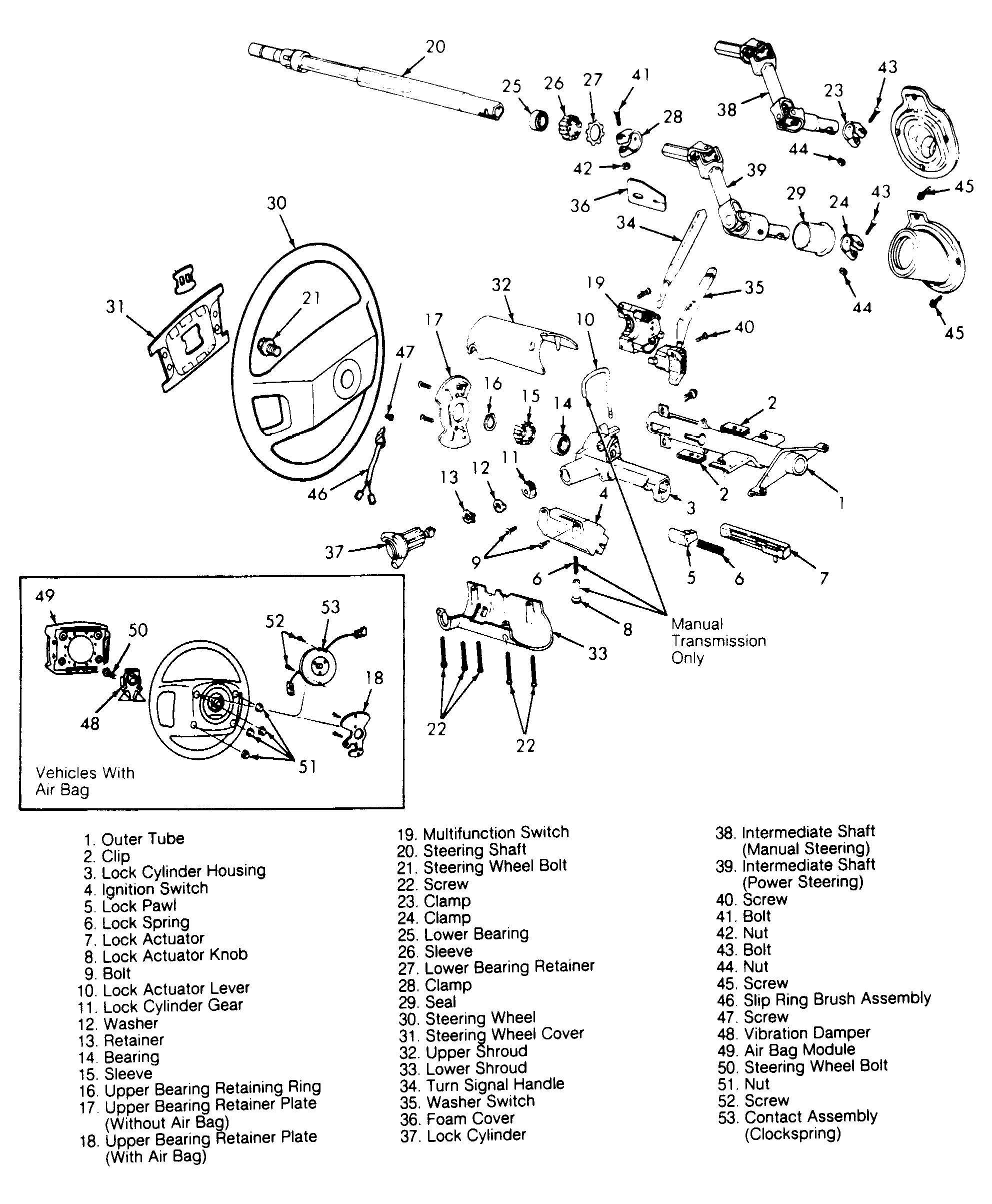

On Cougar, Mustang, Thunderbird, Tempo and Topaz with non-tilt wheel, remove upper and lower shrouds. See Figure, Figure and Figure. On Escort, remove lower shroud. See Figure.
On all models, disconnect key warning switch electrical connector.
Turn lock cylinder to RUN position. Locate small hole in casting below lock cylinder. Insert a 1/8" drill bit or punch into hole. Press lock cylinder retaining pin while pulling lock cylinder out of housing.
