Coolant Temperature Sensor/Switch (For Computer)

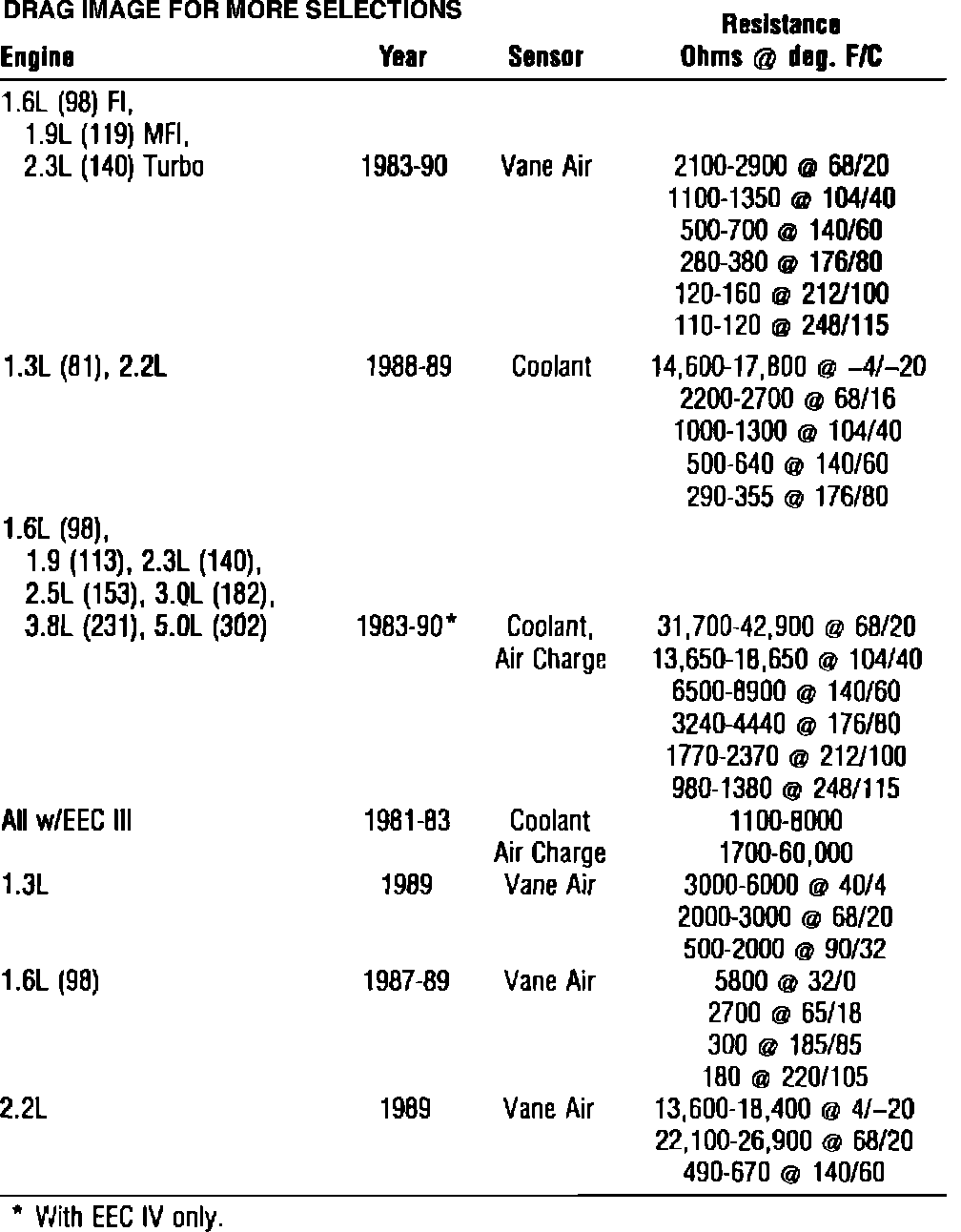

Temperature Sensors:

1.3L VAT: Measured between upper terminal (GN/BK wire) of airflow sensor and ground.

1.6L VAT: Measured between terminal 25 (upper terminal on airflow connector) and ground.

2.2L VAT: Measured between first (R wire) and fifth (LG/W wire) of airflow sensor.

All others with EEC IV VAT: Measured between upper terminal (LG/P wire) of airflow sensor and ground.
