Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

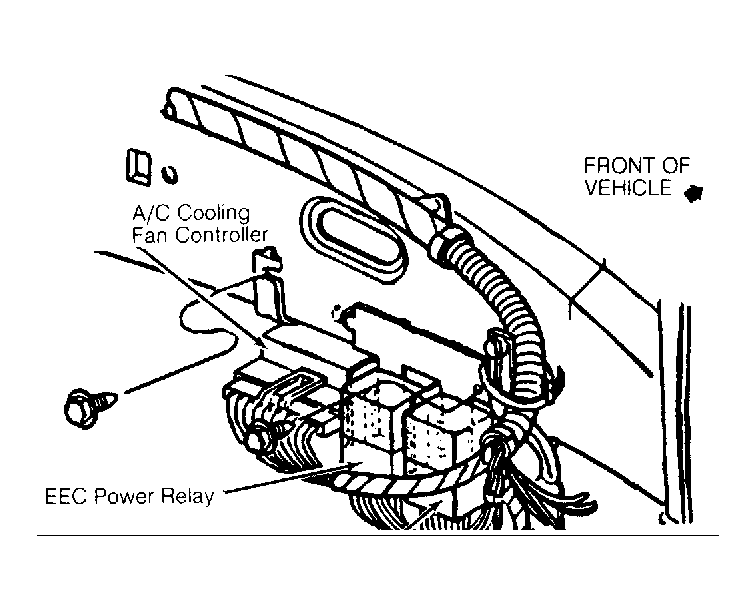

| A/C Cooling Fan Controller | Behind right side of dash, above glove box. See Figure . |

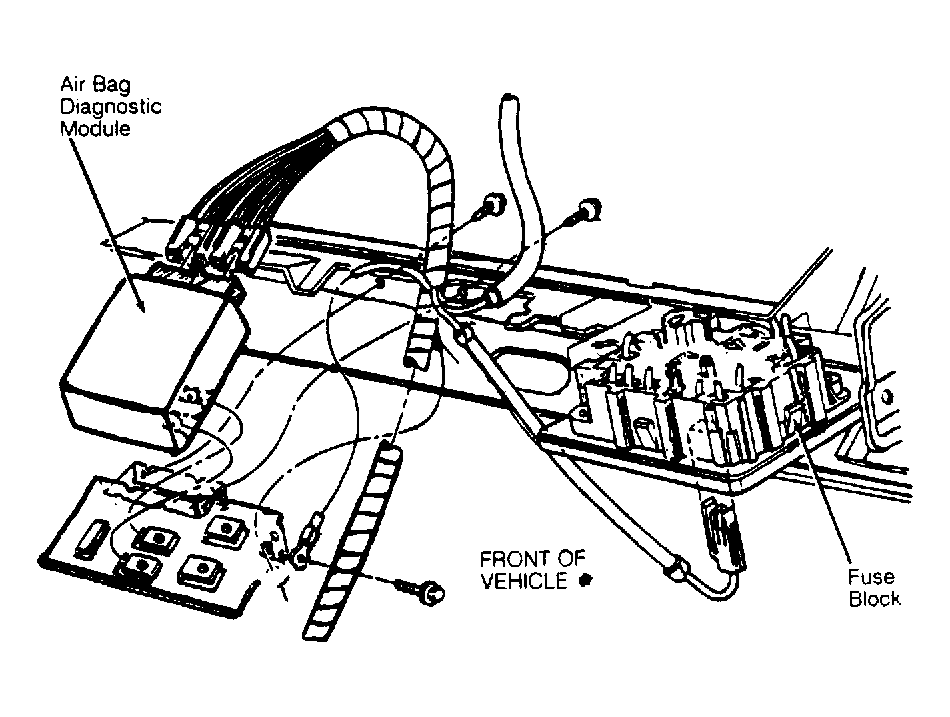

| Air Bag Diagnostic Module | Behind steering column cover panel, next to fuse block. See Figure . |
| Air Bag Module | On steering wheel, behind center trim cover. |
| Air Bag Power Supply | Behind steering column cover panel, next to fuse block. |
| Electronic Engine Control (EEC) | Under left side of dash. |
| Illuminated Entry Module | Underside of rear package tray. |
| Low Fuel Warning Module | On rear of instrument cluster. |
| Passive Restraint Module | Behind right side of dash, above glove box. |
| TFI Module | Attached to distributor. |

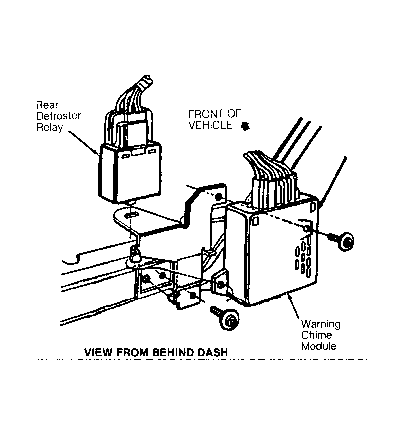

| Warning Chime Module | Behind left lower dash, to right of steering column. See Figure . |
