Test 11, Right Coil Pack Fault, Isolate Dis Module

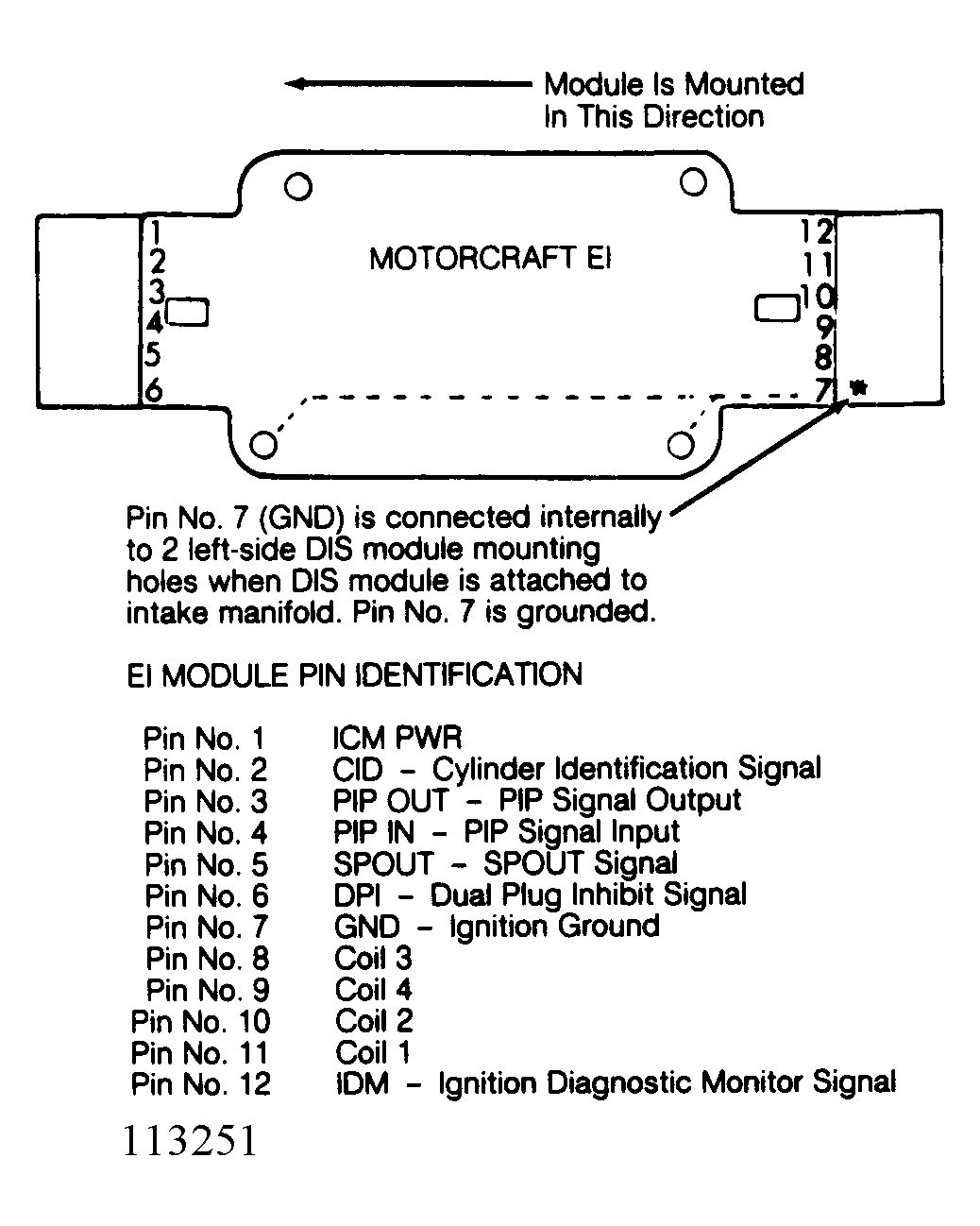

With key off, disconnect diagnostic cable connector from DIS module (Pins No. 7-12). See Fig 1. Repeat test procedures in TEST 10. If test light illuminates during both tests, replace DIS module, and check for fault codes. See TESTS W/CODES article in the ENGINE PERFORMANCE Section. If test light does not illuminate during both tests, go to next test.
