Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
Fuse Block

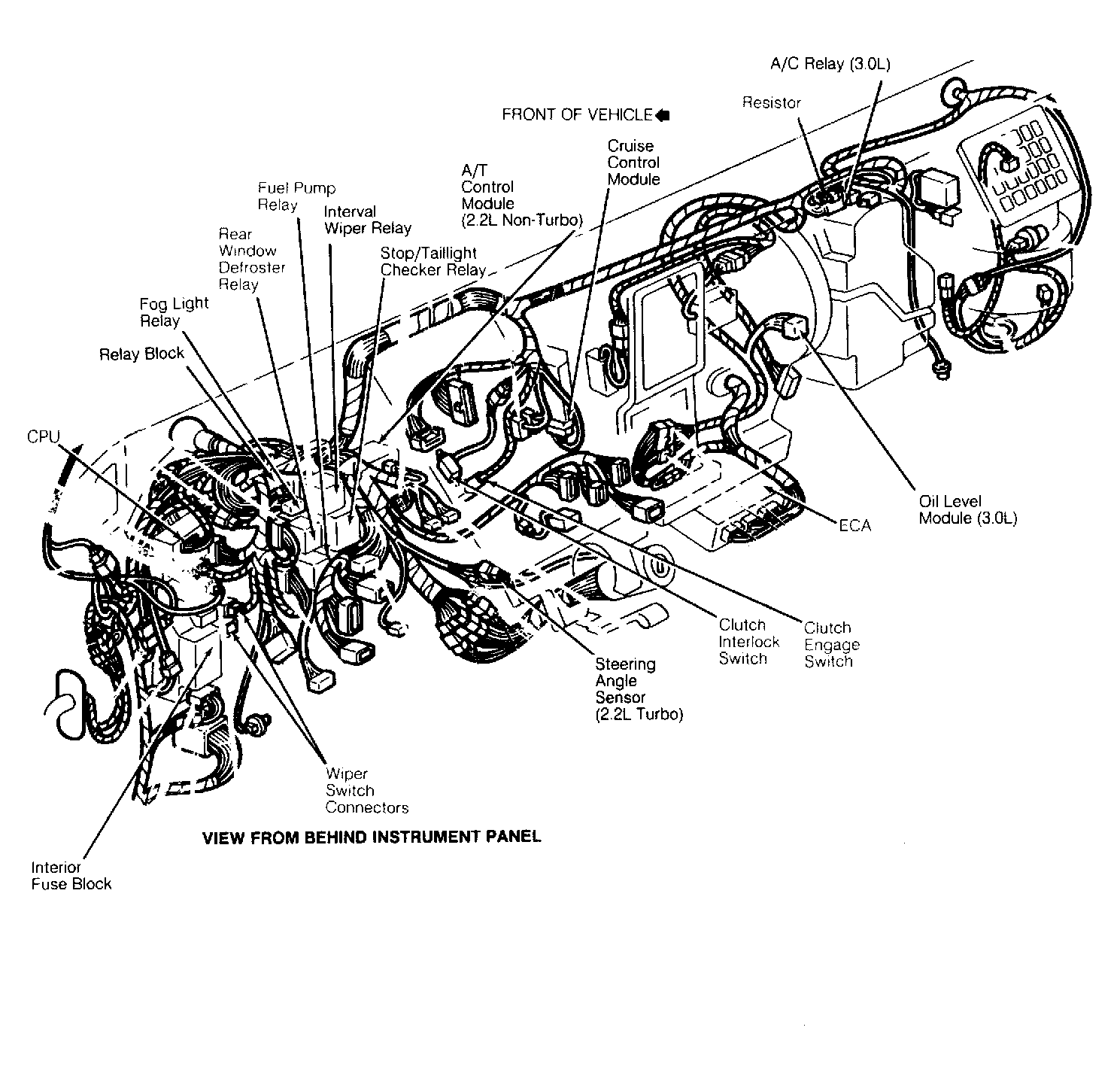

Interior Behind top of left kick panel. See Figure .
Main

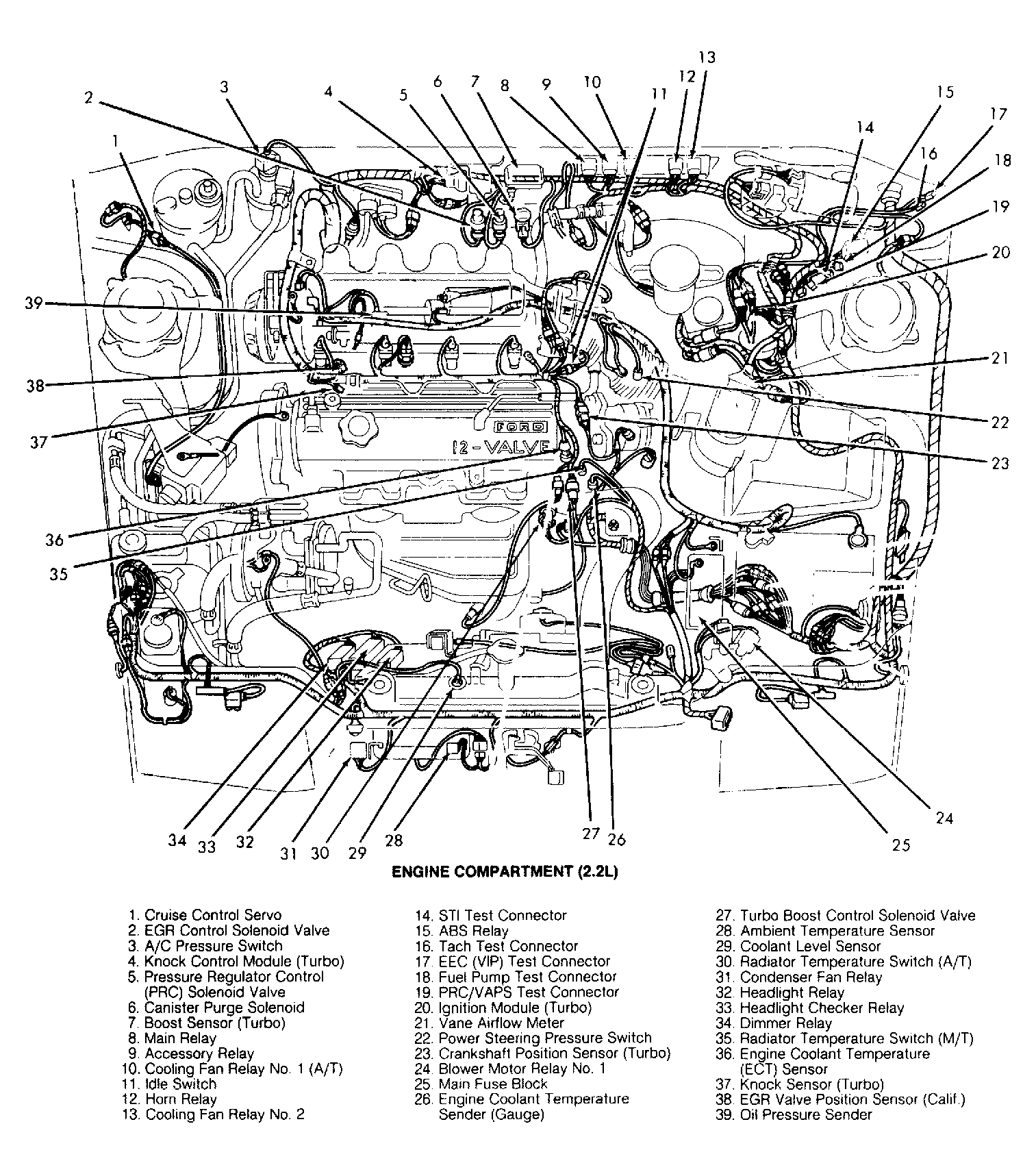

2.2L In engine bay, to right of battery. See Figure .

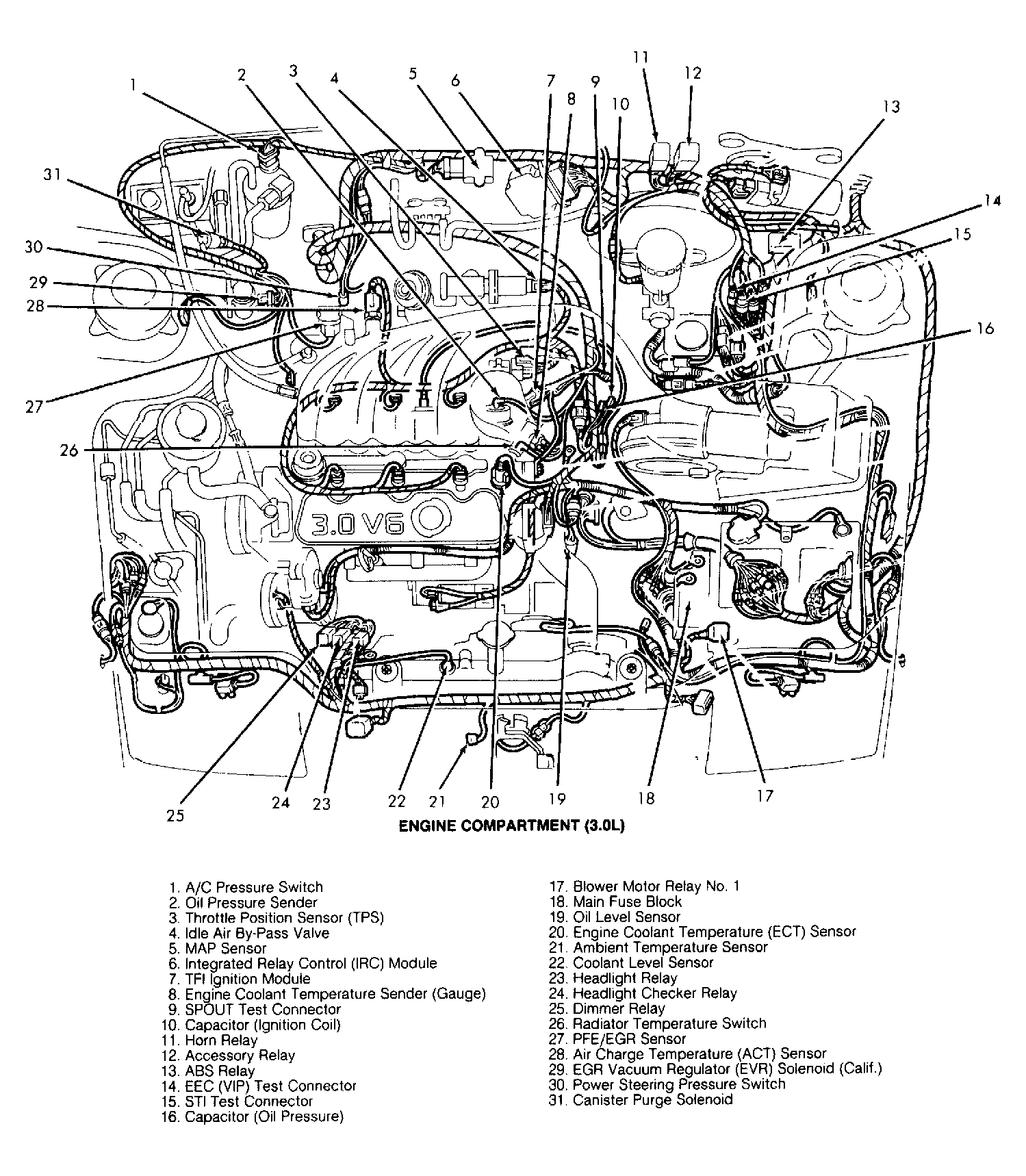

3.0L In engine bay, to right of battery. See Figure .
Rear Defroster Circuit Breaker Above interior fuse block.
Relay Block Behind left side of dash. See Figure .
