Synchronizer Assembly: Installation

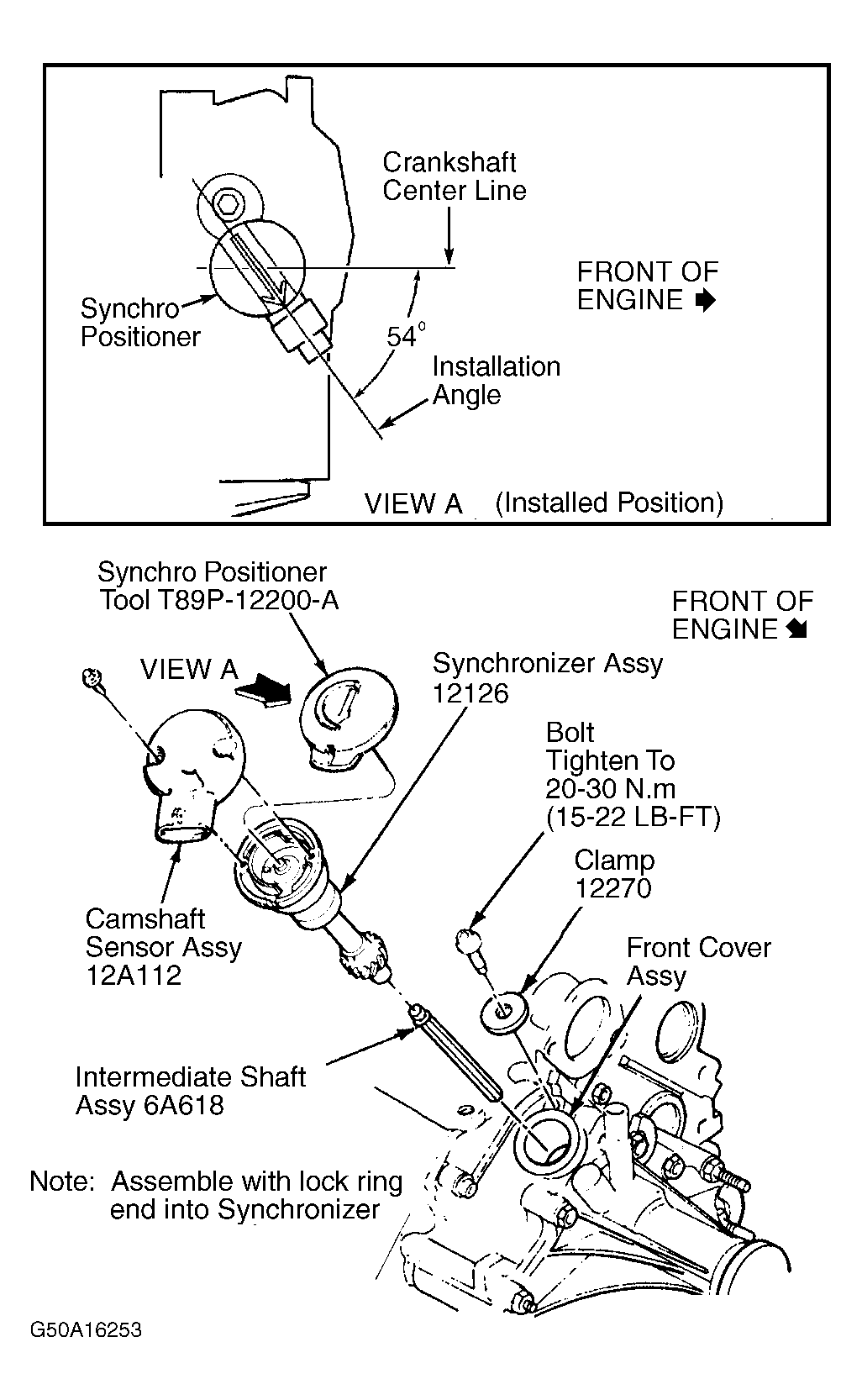

- If plastic locator cover tool is not attached to replacement synchronizer assembly, attach Synchro Positioner Tool T89P-12200-A or equivalent as follows:
- Engage synchronizer vane into radial slot of tool.
- Rotate tool on synchronizer base until tool boss engages the base notch. The cover tool should be square and in contact with entire top surface of synchronizer base.
- Transfer intermediate oil pump driveshaft from old synchronizer to replacement synchronizer assembly. Install synchronizer assembly so that gear engagement occurs when arrow on locator tool is pointed approximately 30 degrees counterclockwise from front face of engine block (this will locate camshaft sensor connector in pre-removal position.)
- Install synchronizer base clamp and tighten bolt to 15-22 ft. lbs. (20-30 N.m). Remove Synchro Positioner Tool T89P-12200-A or equivalent. Install and connect camshaft sensor and negative battery cable.
CAUTION:
If camshaft sensor connector is not positioned properly (i.e. contacting A/C bracket or forward of supercharger drive belt), DO NOT reposition connector by rotating synchronizer base. This will result in ignition system and fuel system being out of time with engine, possibly causing engine damage. Remove synchronizer and repeat installation procedure.
