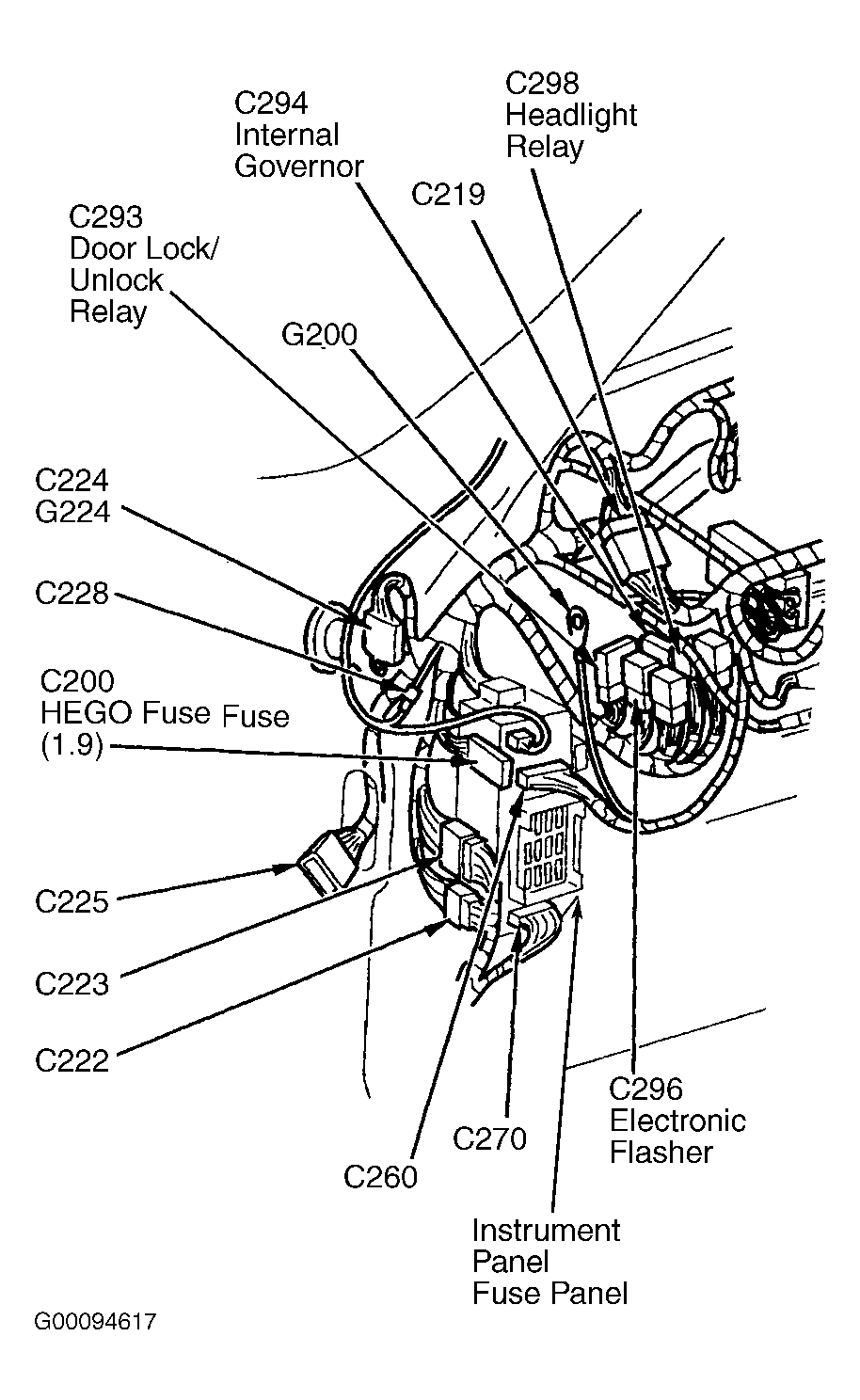

Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Ground G224 | Behind Upper Left Side of Instrument Panel |
| Instrument Panel Fuse Panel | Above Left Side Kick Panel |
| Left Front Window Motor | In Lower Front Of LH Front Door |
| Right Front Window Motor | In Lower Front Of RH Front Door |
| Left Rear Window Motor | In Lower Front Of LH Rear Door |
| Right Rear Window Motor | In Lower Front Of RH Rear Door |
