Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| ABS Control Module | Under driver seat. | |
| Automatic Temperature Control (ATC) Module | Part of ATC control panel. | |
| Auto. Trans. Control Module | ||
| 2.2L Non-Turbo | Behind bottom center of instrument panel. | |

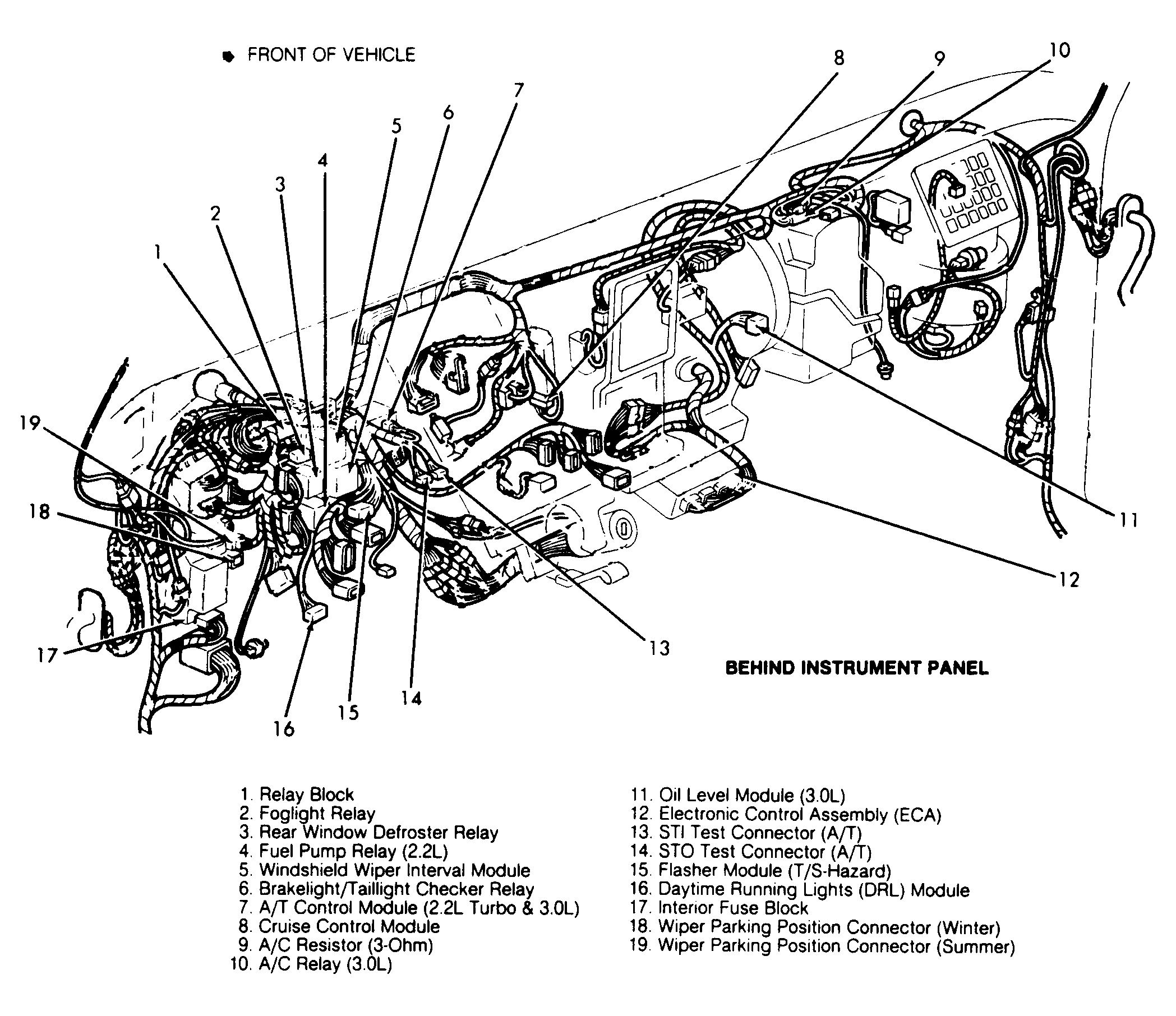

| 2.2L Turbo & 3.0L (4EAT) | Behind instrument panel, to left of steering column. See Figure . | |
| Central Processing Unit (CPU) | Behind left kick panel, above fuse block. | |
| Cruise Control Module (2.2L) | Behind instrument panel, to right of steering column. See Figure . | |
| Daytime Running Lights (DRL) Module (2.2L) | Behind instrument panel, to left of steering column. See Figure . | |
| Electronic Control Assembly (ECA) (2.2L) | Behind instrument panel, forward of center console, near floor. See Figure . | |
| Flasher Module (T/S-Hazard) (2.2L) | On relay block. See Figure . | |
| Ignition Module 2.2L | On left front strut tower, next to ignition coil. | |

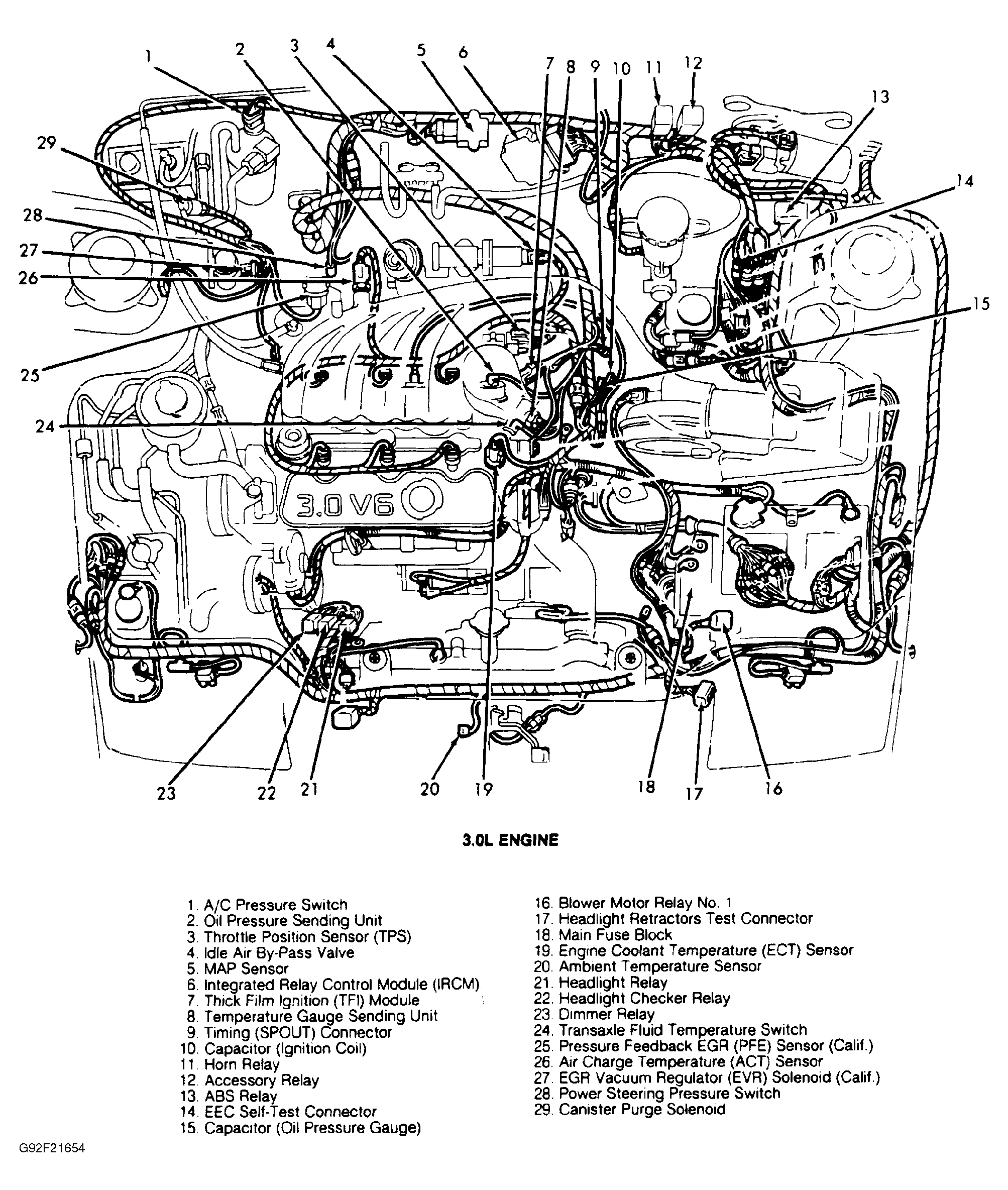

| Integrated Relay Control Module (IRCM) (3.0L) | In engine bay, on center of firewall. See Figure . | |

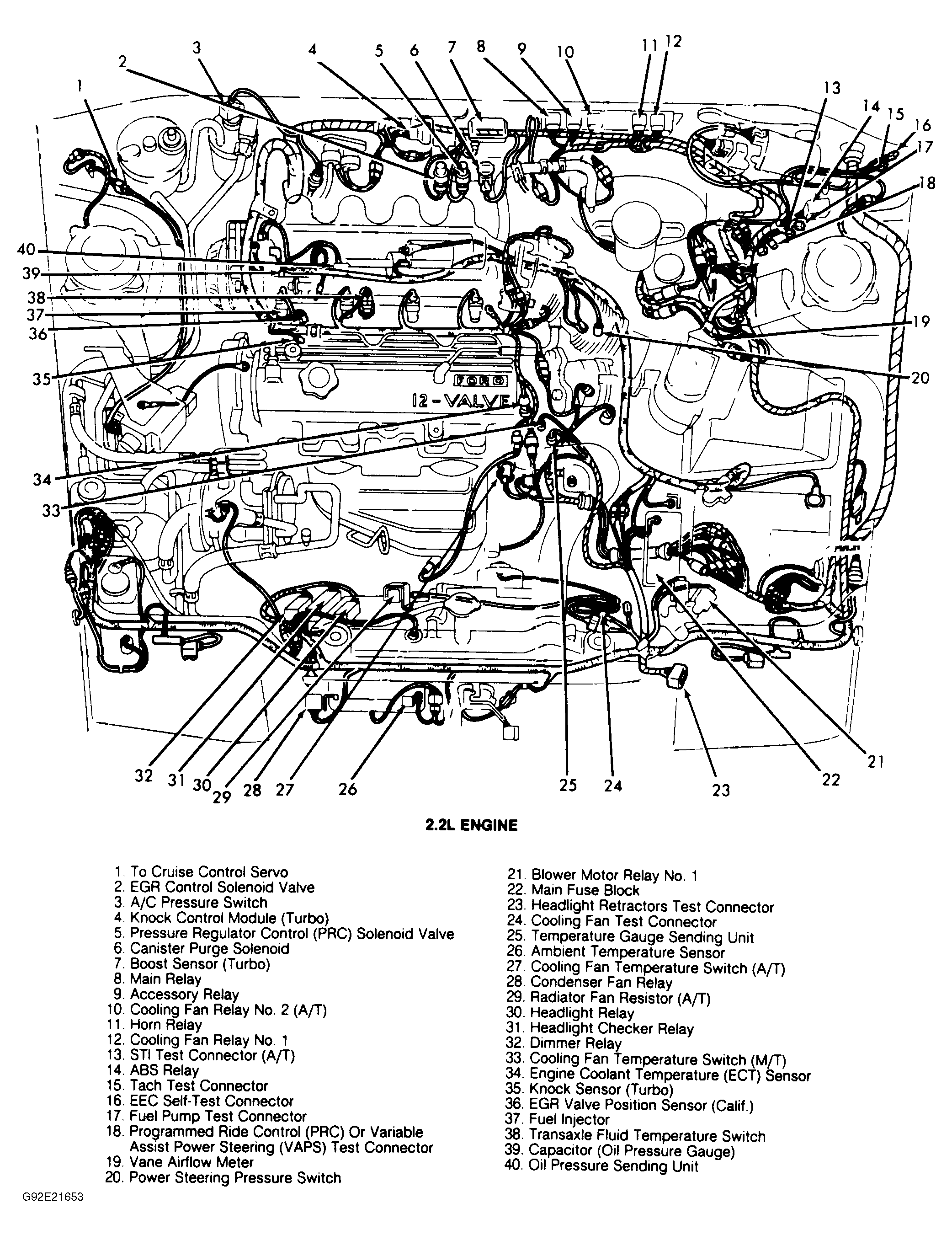

| Knock Control Module (Turbo) (2.2L) | In engine bay, on right center of firewall. See Figure . | |
| Oil Level Module (3.0L) | Behind right side of instrument panel. See Figure . | |
| Passive Restraint Module | At left end of rear seat, behind quarter trim panel. | |
| Prog. Ride Control (PRC) Module | Under passenger's seat. | |
| Shift-Lock Control Module | At front of center console. | |
| Thick Film Ignition (TFI) Module (3.0L) | On distributor. See Figure . | |
| Variable Assist Power Steering (VAPS) Control Module | Under driver seat. | |
| Windshield Wiper Interval Module (2.2L) | On relay block. See Figure . | |
