Integrated Relay Control Module (IRCM)
- Faults in IRCM or circuit should set a service code. See QUICK TEST in TESTS W/CODES - EEC-IV article in the ENGINE PERFORMANCE section. If service code has not been set, connect self test connector terminal FP to ground.

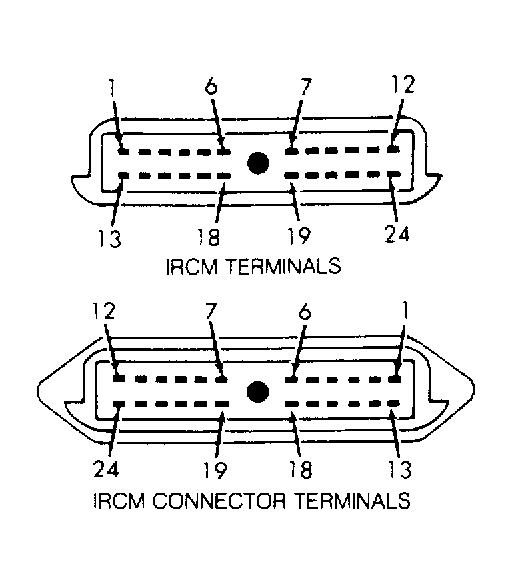

- Turn ignition on. Measure voltage between IRCM terminal No. 5 and ground. See Fig 1 . If voltage is greater than 10.5 volts, go to step 4). If voltage is not greater than 10.5 volts, turn ignition off. Disconnect IRCM wiring harness connector.
- Check for loose, damaged or corroded terminals. Repair as necessary. If terminals are okay, turn ignition on. Measure voltage between connector terminals No. 8 and 12 and chassis ground. If readings are not greater than 10.5 volts, repair open circuit. If readings are greater than 10.5 volts, circuit is okay. Go to CIRCUIT TEST X in TESTS W/CODES - EEC-IV article in the ENGINE PERFORMANCE section for IRCM testing.
- If voltage at terminal No. 5 is greater than 10.5 volts with ignition on, turn ignition off. Disconnect IRCM connector. Measure resistance between connector terminal No. 5 and ground. If resistance is 5 ohms or more, go to CIRCUIT TEST X in TESTS W/CODES - EEC-IV article in the ENGINE PERFORMANCE section for IRCM testing. If resistance is less than 5 ohms, replace fuel pump assembly.
