Shaft Defection Check

Remove air inlet line and exhaust outlet pipe from turbocharger. Check turbine wheel and impeller wheel blades for damage or wear. Check rotor axial and radial play to ensure blades do not contact housing. Spin rotor to ensure smooth, quiet rotation. Replace turbocharger if noise or roughness are present.

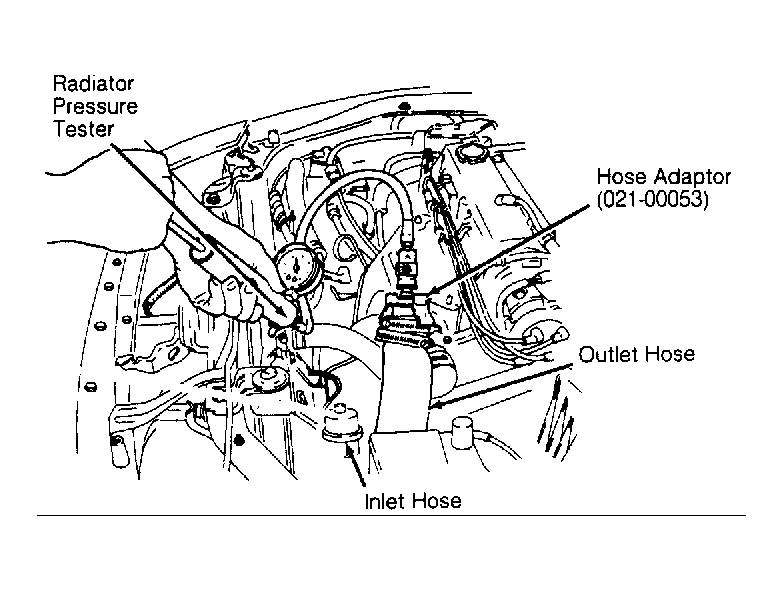

Fig 1: Pressure Testing Intercooler
G91G08160Courtesy of FORD MOTOR CO.
