Power Circuits

Using a voltmeter, check for battery voltage at ECA terminal 1B. See Fig 1 . If battery voltage is not present, check for open circuit and repair as necessary.

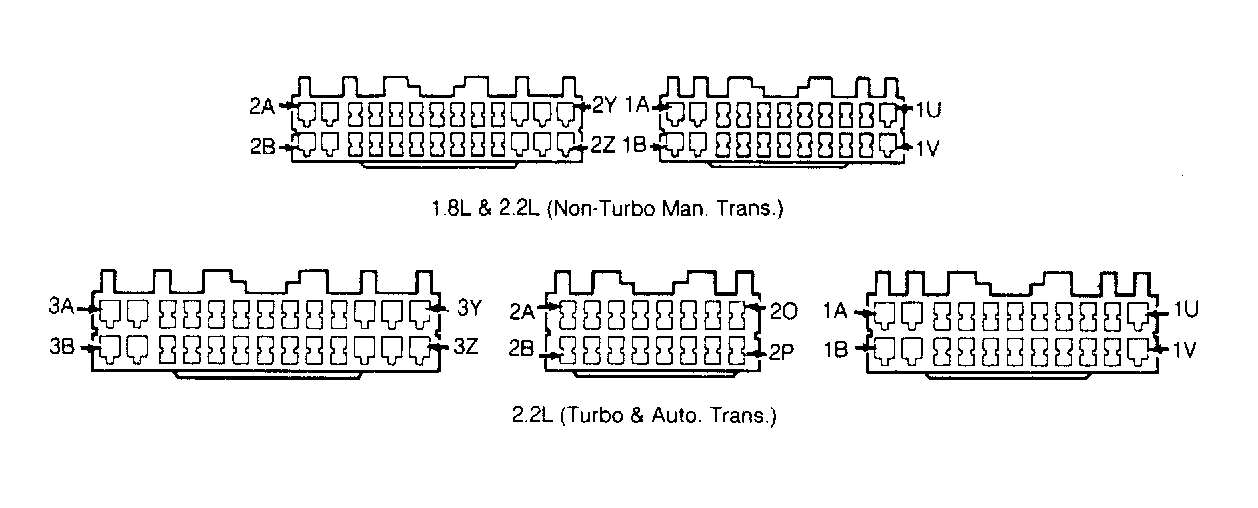

Fig 1: ECA Connector Terminal ID

Courtesy of FORD MOTOR CO.
