Symbol Identification

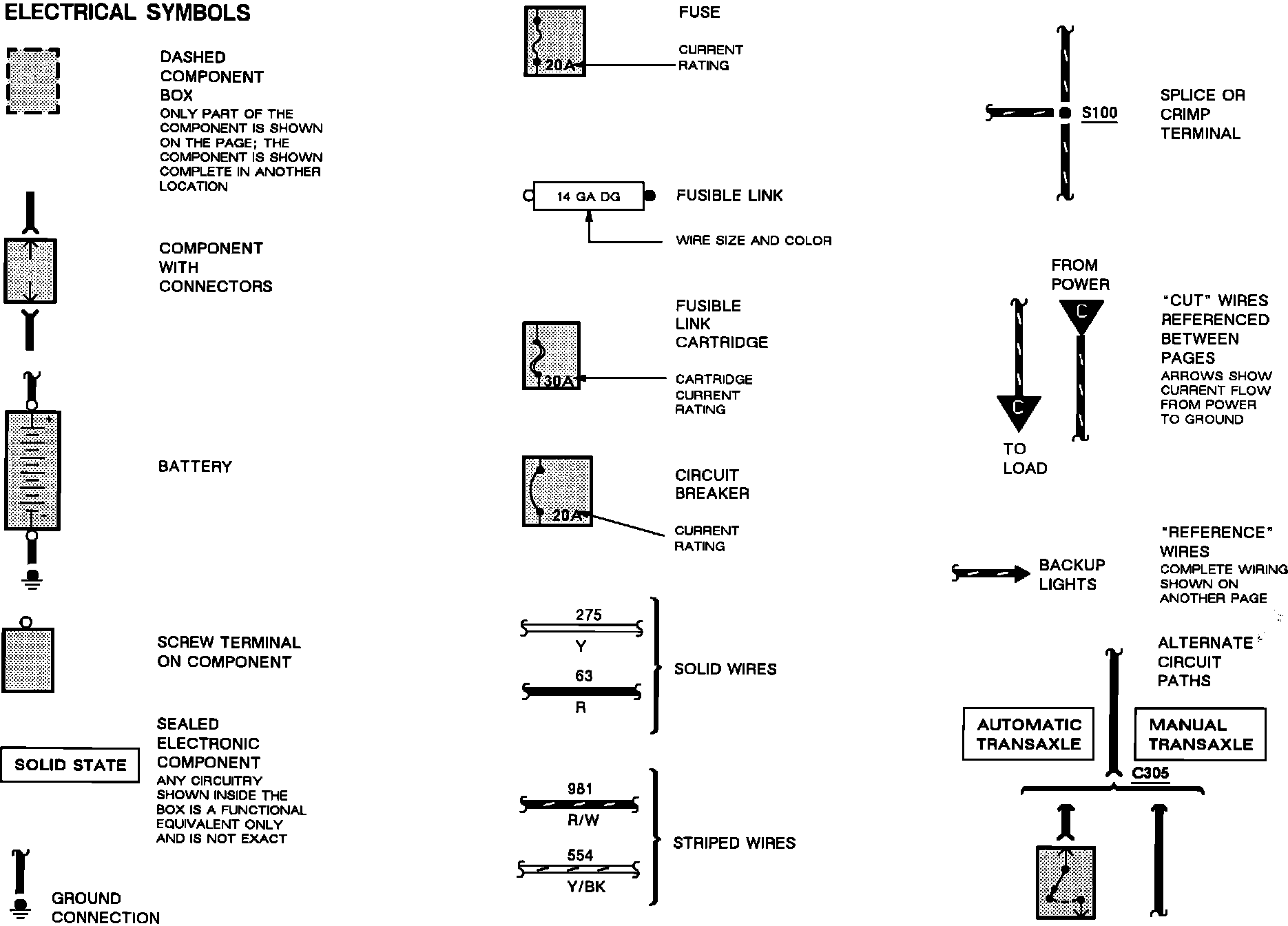

Electrical Symbols:

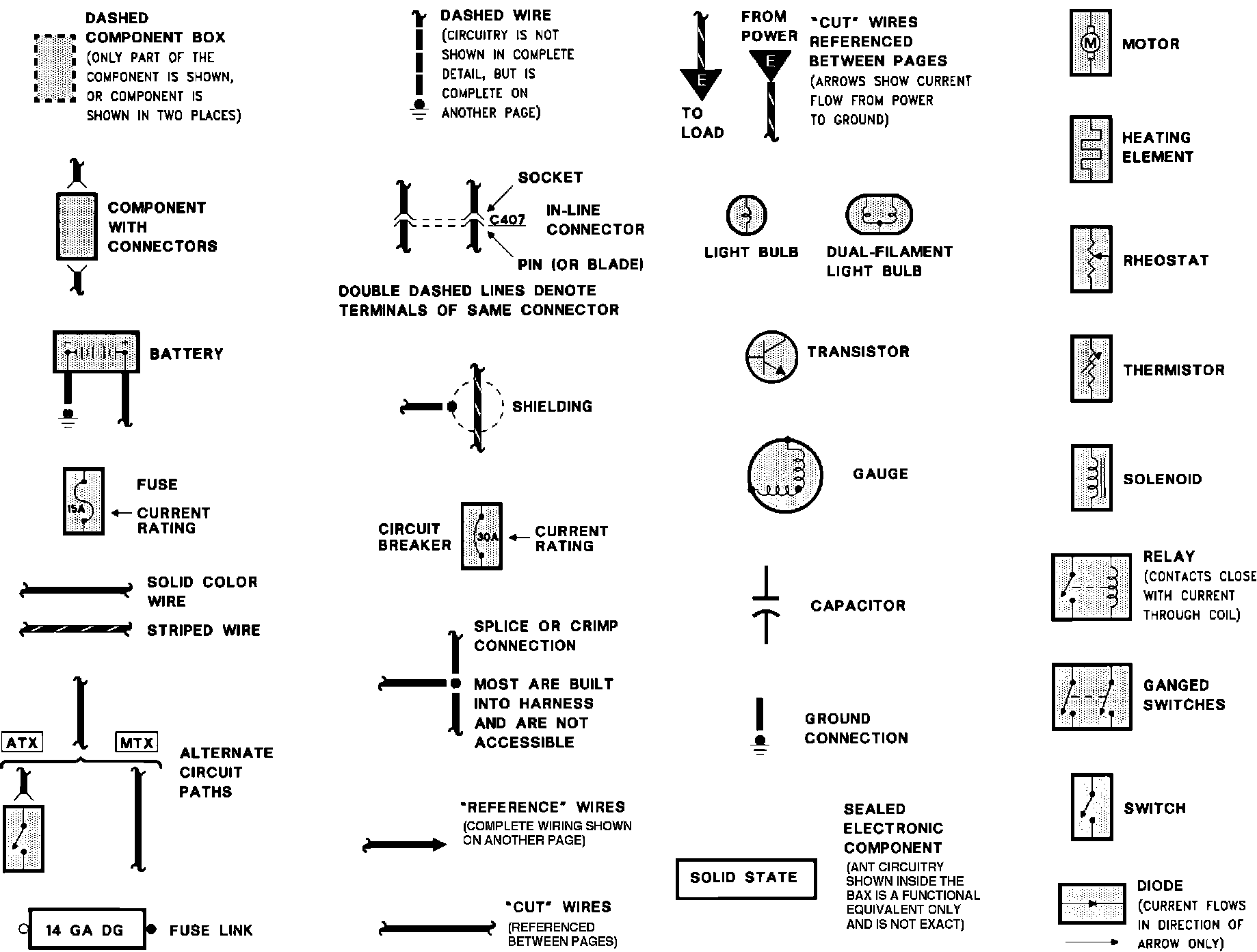

Electrical Symbols:

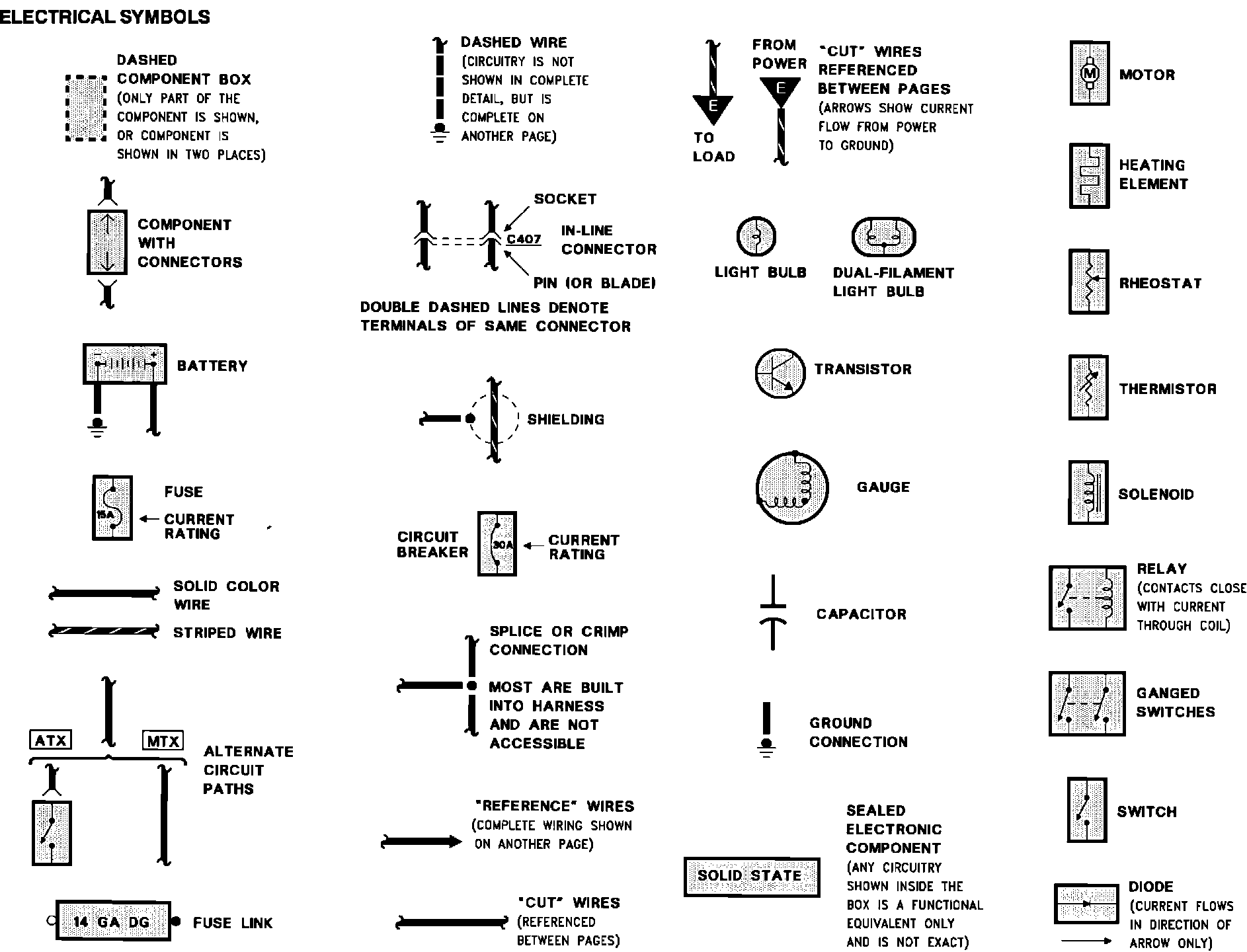

Symbol Identification:

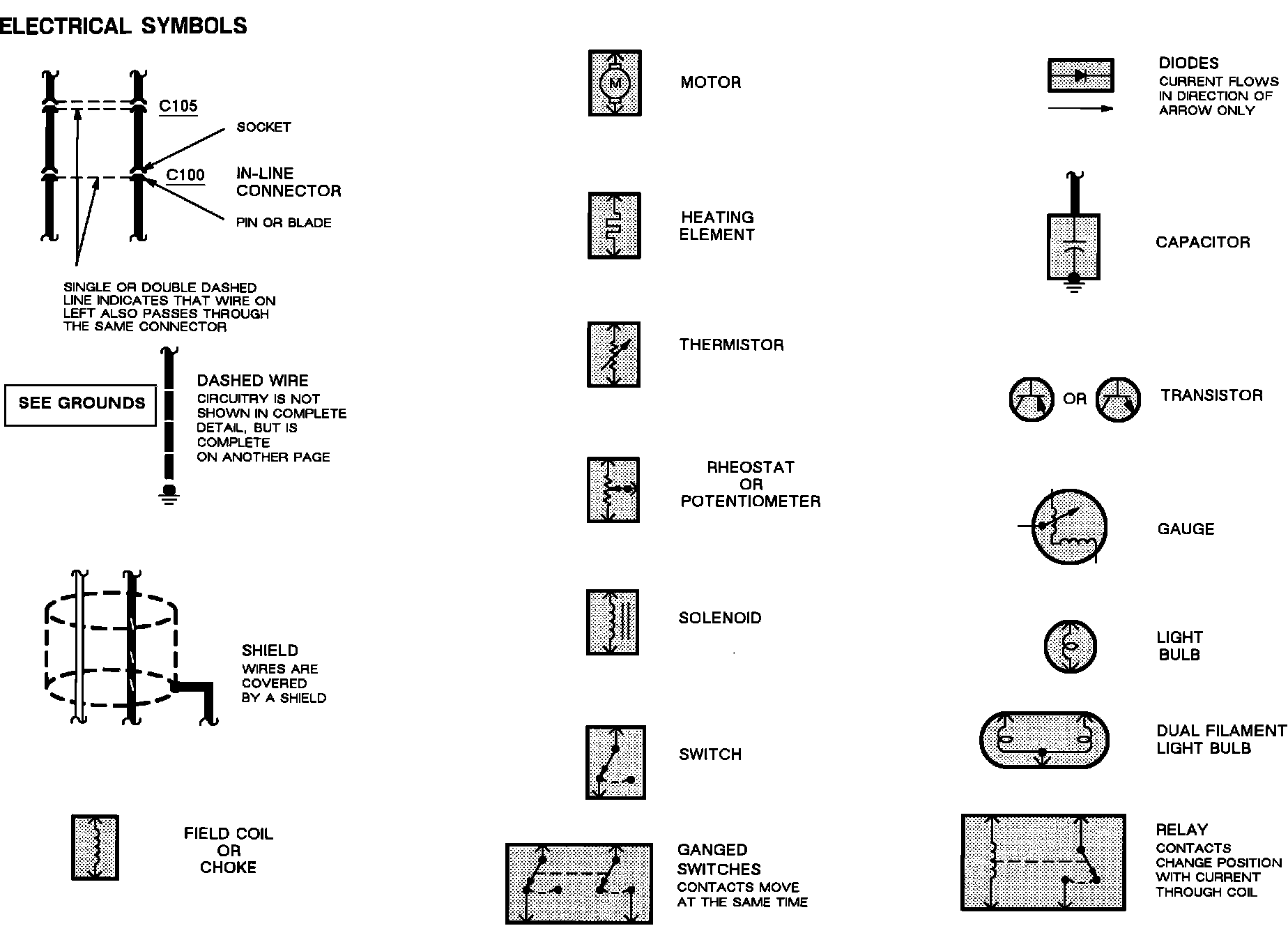

Electrical Symbols:
