Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
Fuse Block

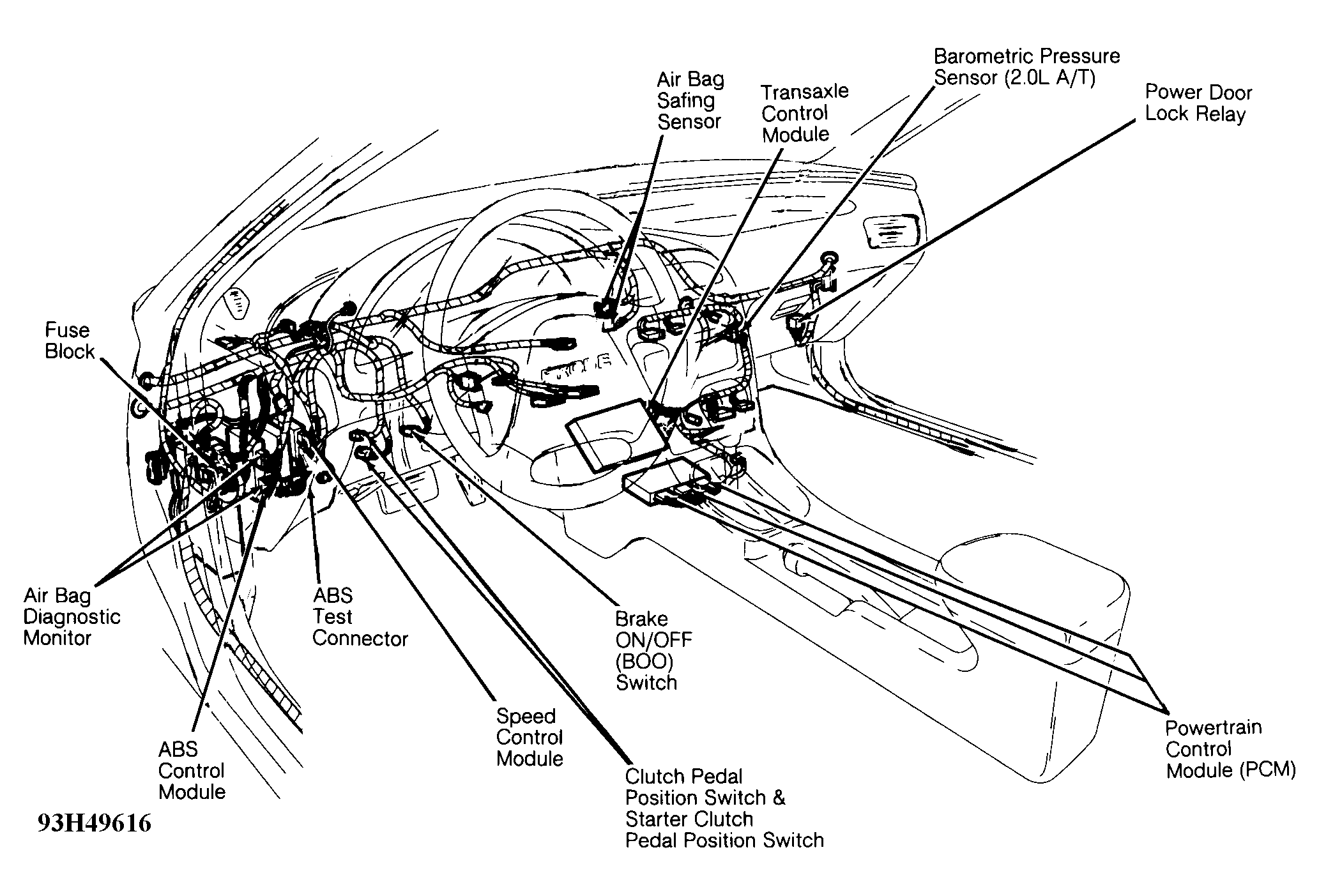

Behind Dash Wiring Behind left side of dash, above kick panel. See Figure .

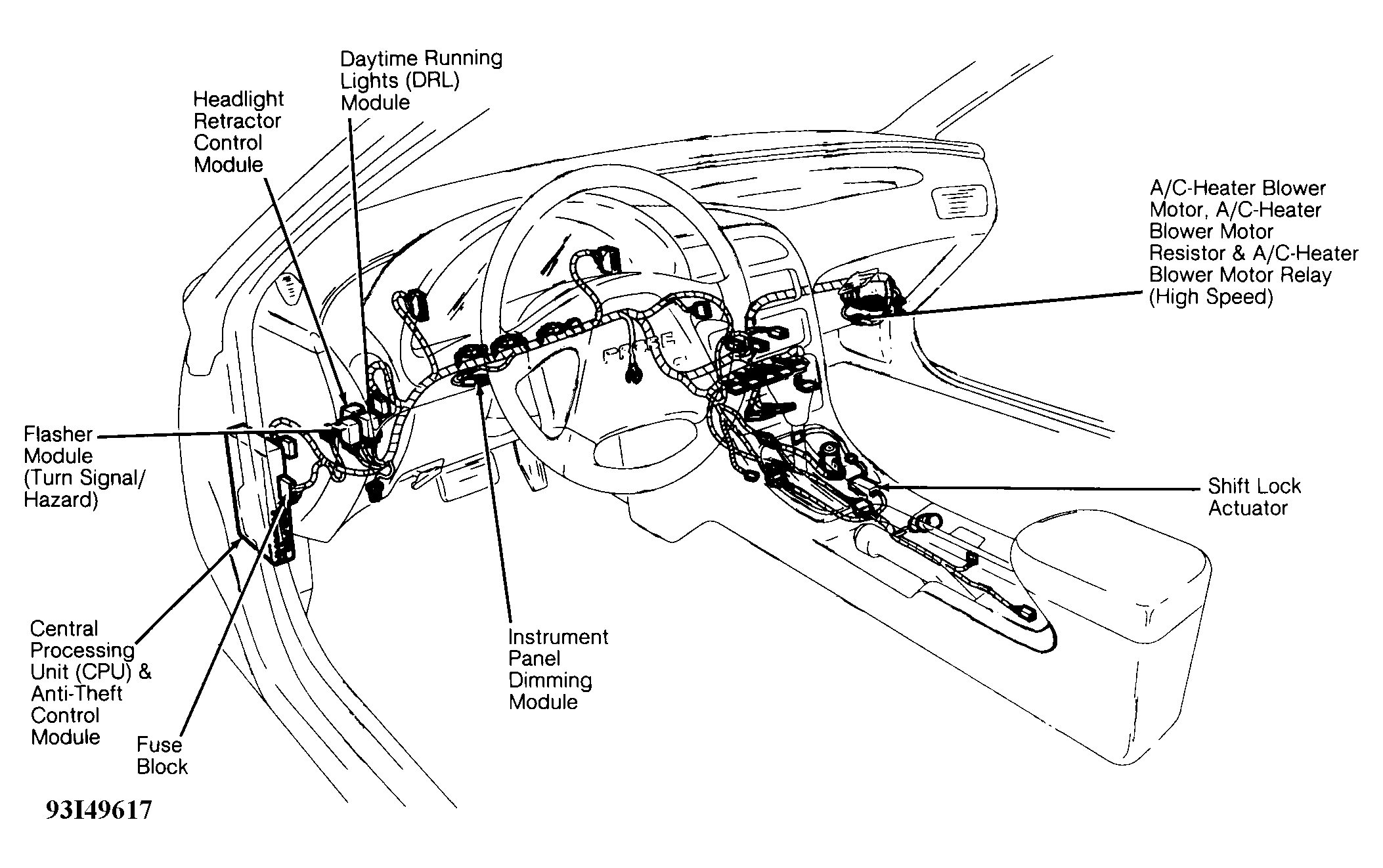

Wiring Harness Layout Behind left side of dash, above kick panel. See Figure .
Fuse/Relay Block

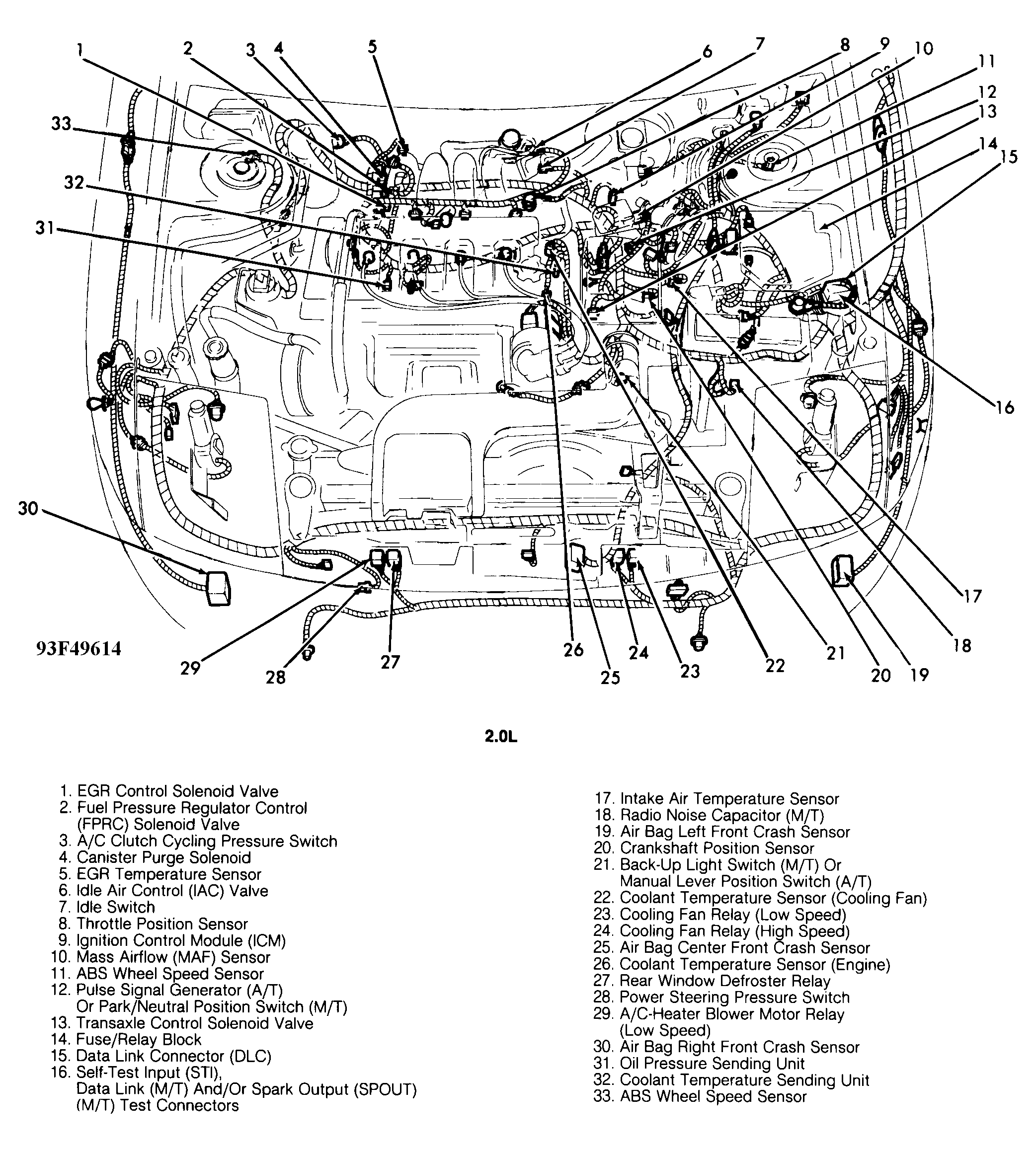

2.0L In engine bay, on left inner fender panel. See Figure .

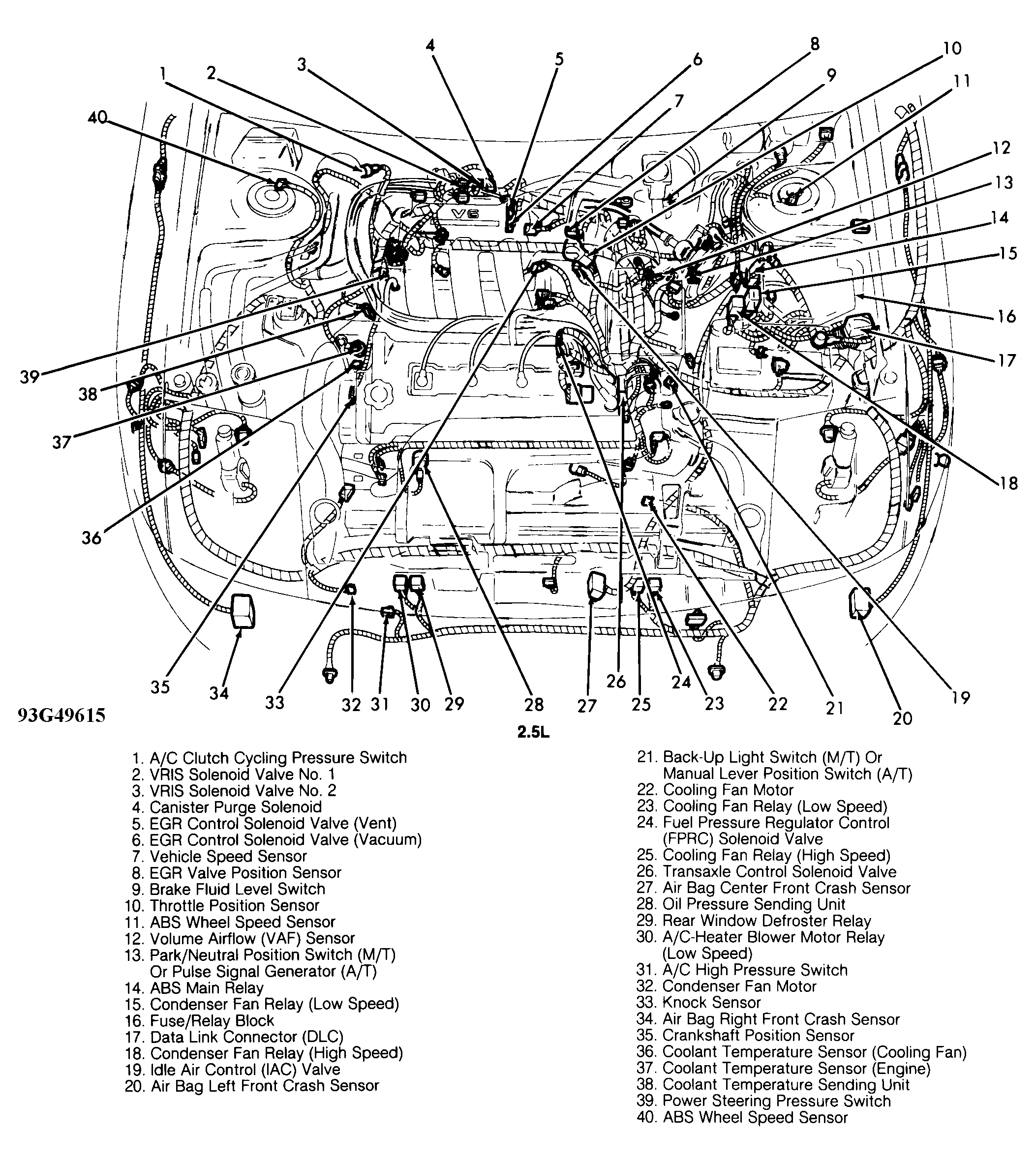

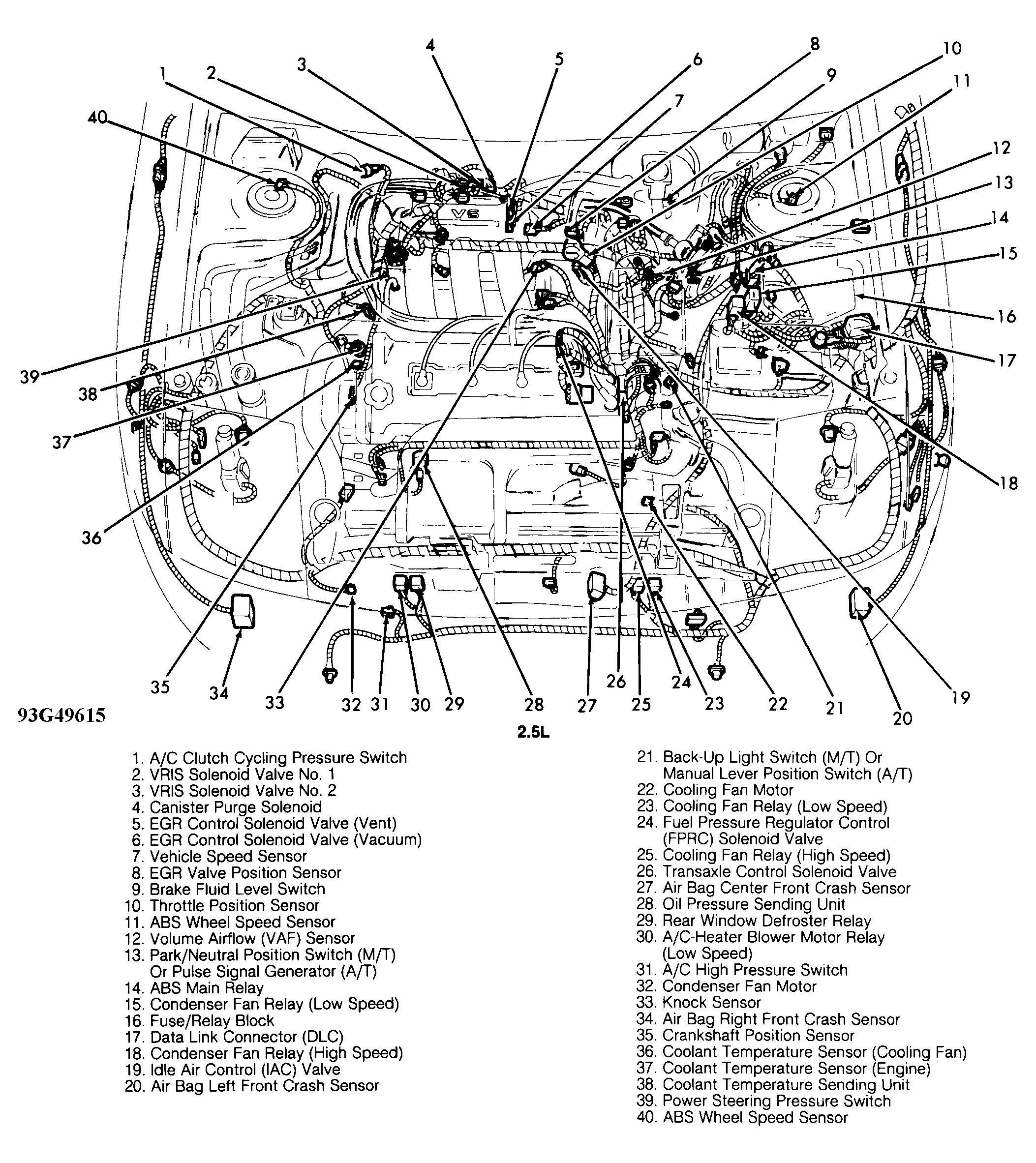

2.5L In engine bay, on left inner fender panel. See Figure .
