Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

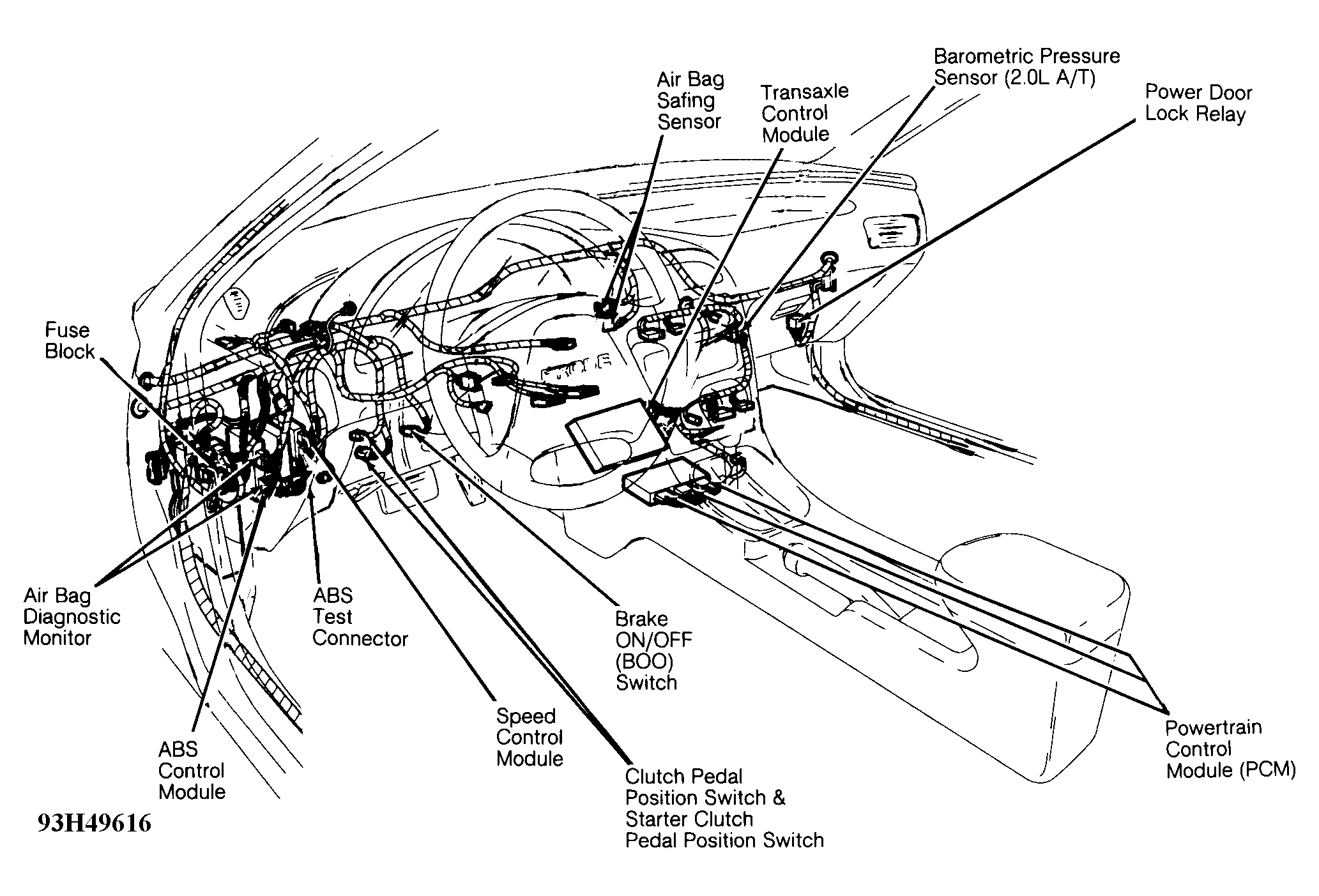

| ABS Control Module | Behind left side of dash. See Figure . |
| Air Bag Diagnostic Monitor | Behind left side of dash. See Figure . |

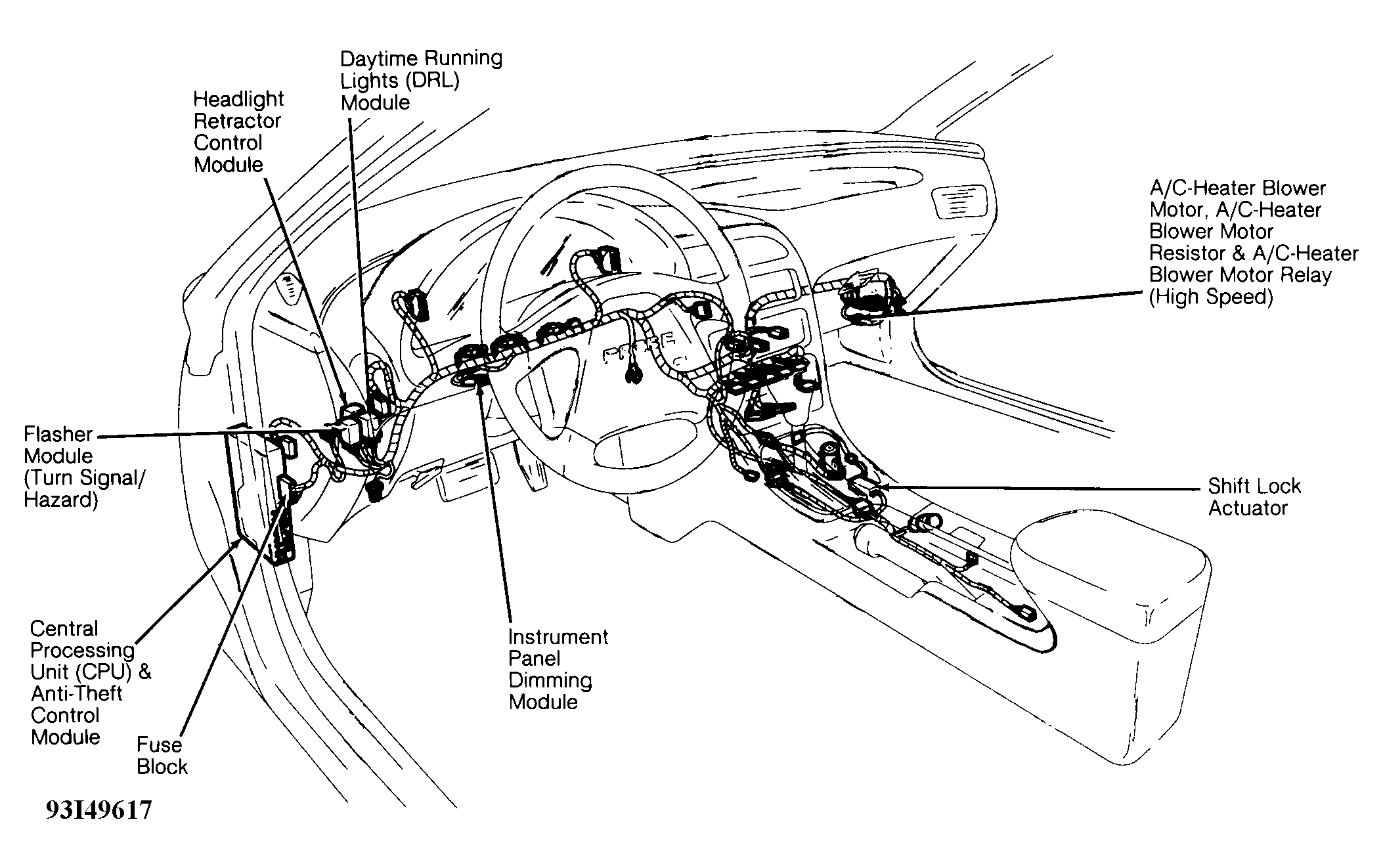

| Anti-Theft Control Module | Behind left side of dash, on CPU. See Figure . |
| Central Processing Unit (CPU) | Behind left side of dash, on rear of fuse block. See Figure . |
| Daytime Running Lights (DRL) Module | Behind left side of dash, left of steering column. See Figure . |
| Flasher Module (Turn Signal/Hazard) | Behind left side of dash. See Figure . |
| Headlight Retractor Control Module | Behind left side of dash. See Figure . |

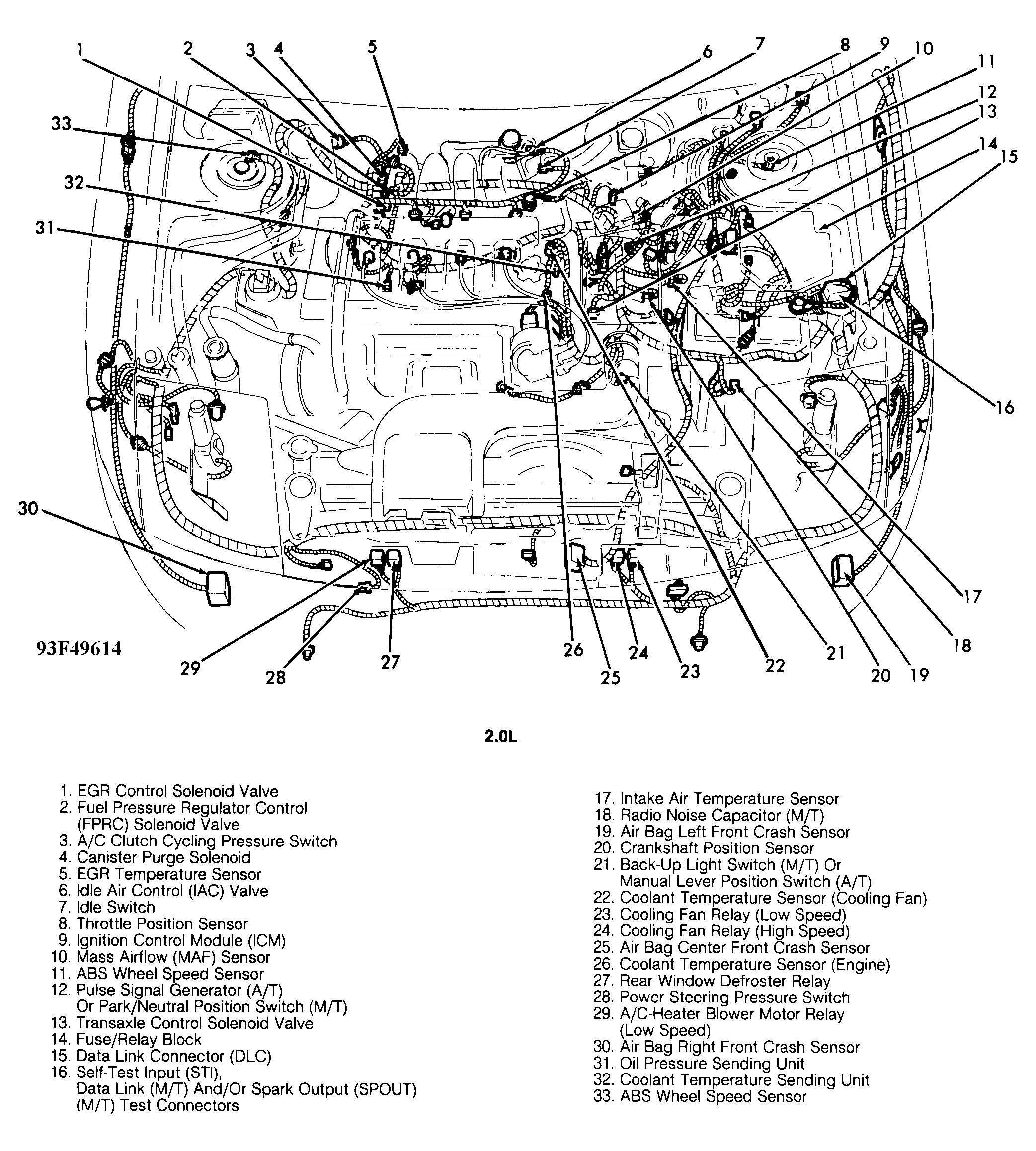

| Ignition Control Module (2.0L M/T) | In left rear of engine bay. See Figure . |
| Instrument Panel Dimming Module | Behind left side of dash. See Figure . |
| Powertrain Control Module (PCM) | Behind center of dash, forward of center console, near floor. See Figure . |
| Remote Keyless Entry Module | On right rear quarter panel, behind trim panel. |
| Speed Control Module | Behind left side of dash, left of steering column. See Figure . |
| Transaxle Control Module | Behind center of dash, Forward of PCM. See Figure . |
