| 1.8L |
| Distributor Hold-Down Bolts |
14-19 (19-25) |
| Fuel Rail Bolts |
14-19 (19-25) |
| Upper Intake Manifold Bolts |
14-19 (19-25) |
| Throttle Body Bolts |
14-19 (19-25) |
| 1.9L |
| CMP Sensor Screw |
15-22 (20-30) |
| Fuel Rail Bolts |
15-22 (20-30) |
| Throttle Body Bolts |
15-22 (20-30) |
| 2.0L |
| Distributor Hold-Down Bolts |
14-18 (19-24) |
| Fuel Rail Bolts |
14-18 (19-24) |
| Heated Oxygen Sensor |
22-36 (30-49) |
| Throttle Body Bolts |
14-19 (19-25) |
| 2.3L |
| EGR Tube |
30-41 (41-56) |
| Fuel Rail Bolts |
15-22 (20-30) |
| Upper Intake Manifold Bolts |
15-22 (20-30) |
| Throttle Body Bolts |
12-14 (16-19) |
| 2.5L |
| Distributor Hold-Down Bolt |
14-18 (19-24) |
| Fuel Rail Bolts |
14-18 (19-24) |
| Heated Oxygen Sensor |
22-36 (30-49) |
| Throttle Body Bolts |
14-18 (19-24) |
| 3.0L |
| Distributor Hold-Down Bolt |
17-25 (23-34) |
| EGR Tube |
37 (50) |

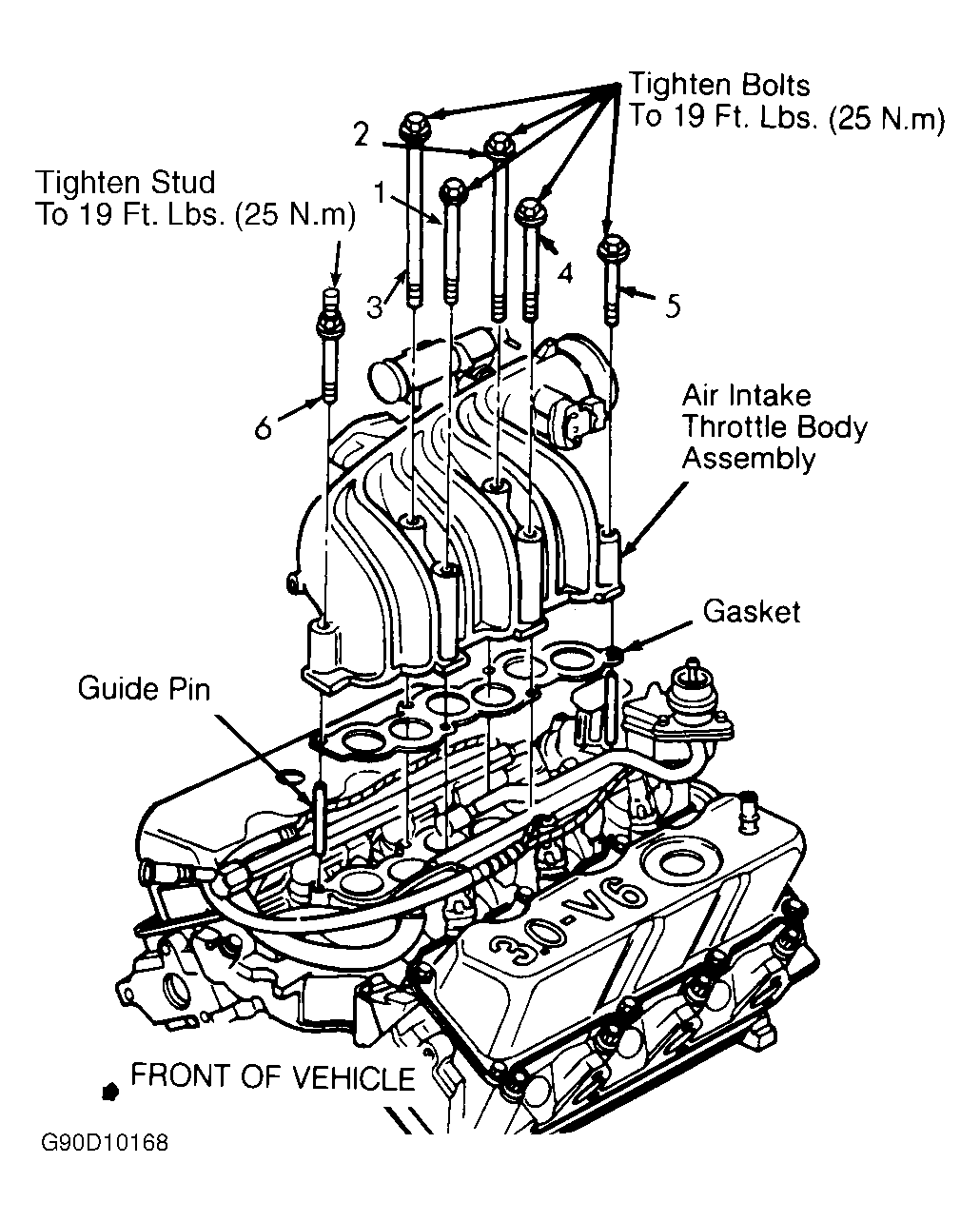

| Throttle Body Bolts |
15-22 (20-30) |
| 3.0L SHO & 3.2L SHO |
| Fuel Pressure Regulator |
18-25 (24-34) |
| Fuel Rail Bolts |
18-25 (24-34) |
| Upper Intake Manifold Bolts |
11-17 (15-23) |
| Throttle Body Bolts |
12-17 (16-23) |
| 3.8L |
| Distributor Hold-Down Bolt |
15-22 (20-30) |

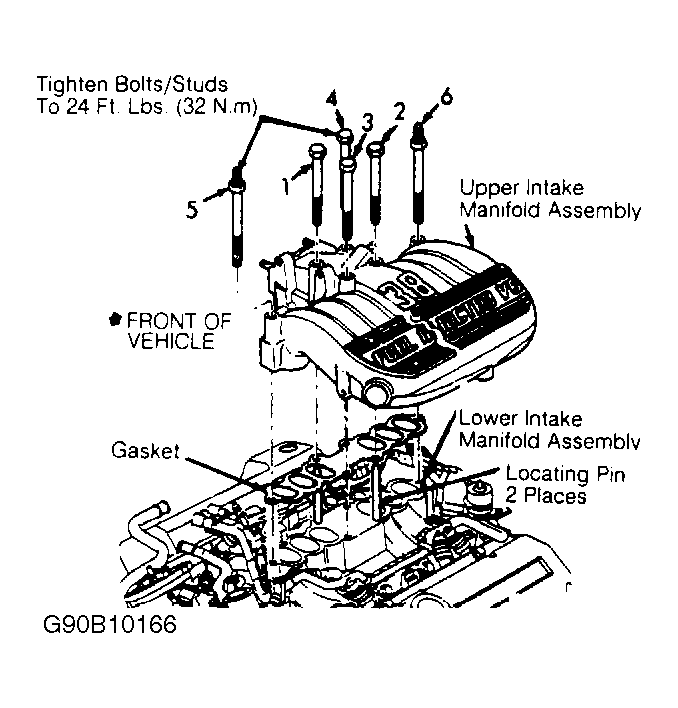

| Upper Intake Manifold Bolts |
24 (32) |
| Throttle Body Bolts |
19 (25) |
| 3.8L SC |
| Adapter Collar Nut |
148 (200) |
| Alternator/Power Steering Pump Bracket Nut |
30-40 (41-54) |
| Charge Air Cooler Inlet Tube Nuts |
14-22 (19-30) |
| Outlet Tube Nuts |
14-22 (19-30) |
| Intake Elbow Bolts |
20-28 (27-38) |
Supercharger
|
| 8-mm Bolts |
15-22 (20-30) |
| 12-mm Bolts |
52-70 (71-95) |
| Power Steering Pump Bracket-To-Cylinder Head Bolts |
30-40 (41-54) |
| Power Steering Pump Bracket Brace-To-Water Pump Stud |
15-22 (20-30) |
| Support Bracket-To-Cylinder Block Bolt |
52-70 (71-95) |
| Support Bracket-To-Cylinder Block Nut |
15-22 (20-30) |
| Throttle Body Bolts |
15-22 (20-30) |
| 4.6L |
| EGR Valve Bolts |
15-22 (20-30) |
| EGR Valve-To-Exhaust Manifold Tube Nuts |
26-33 (35-45) |
| 5.0L |
| Distributor Hold-Down Bolt |
17-25 (23-34) |
| Upper Intake Manifold Bolts |
12-18 (16-24) |
| Throttle Body Bolts |
12-18 (16-24) |
| INCH Lbs. (N.m) |
| 1.8L |
| Fuel Pressure Regulator Screws |
71-97 (8-11) |
| 1.9L |
| Fuel Pressure Regulator Screws |
27-35 (3-4) |
| Crankshaft Position Sensor Bolts |
44-62 (5-7) |
| 2.0L |
| Crankshaft Position Sensor Screws |
71-97 (8-11) |
| 2.3L |
| Fuel Pressure Regulator Screws |
27-44 (3-5) |
| Throttle Position Sensor Screws |
27-35 (3-4) |
| 2.5L |
| Fuel Pressure Regulator Screws |
53-80 (6-9) |
| 3.0L |
| Crankshaft Position Sensor Screws |
44-62 (5-7) |
| Fuel Pressure Regulator Screws |
35 (4) |
| Fuel Rail Bolts |
89 (10) |
| Throttle Position Sensor Screws |
18-35 (2-4) |
| 3.0L SHO & 3.2L SHO |
| Camshaft Position Sensor Screws |
27-35 (3-4) |
| Crankshaft Position Sensor Screws |
27-35 (3-4) |
| Throttle Position Sensor Screws |
18 (2) |
| 3.8L |
| Fuel Pressure Regulator Screws |
35 (4) |
| Fuel Rail Bolts |
71 (8) |
| Throttle Position Sensor Screws |
18-35 (2-4) |
| 3.8L SC |
| Crankshaft Position Sensor Bolts |
27-35 (3-4) |
| 4.6L |
| Crankshaft Position Sensor Bolts |
71-106 (8-12) |
| Fuel Pressure Regulator Screws |
27-44 (3-5) |
| Fuel Rail Bolts |
71-106 (8-12) |
| Throttle Body Bolts |
71-106 (8-12) |
| Throttle Position Sensor Screws |
9-18 (1-2) |
| 5.0L |
| Fuel Pressure Regulator Screws |
27-44 (3-5) |
| Fuel Rail Bolts |
71-106 (8-12) |
